Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)
BUWC-700-DSE-D22-01
Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 700mm; Length 165mm; Disc 1.4408; Pressure range 0…10bar; Flange PN10; With mounted digital positioner, 4-20mA
BUWC-800-DPE-G

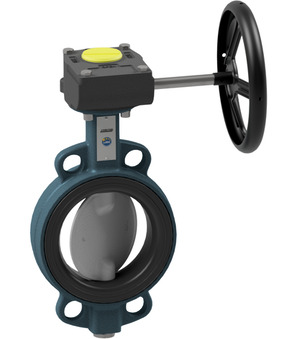

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15, Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 800mm; Length 190mm
BUWC-800-DSE-B-A
Butterfly valve with free shaft end DN800, wafer, PN10, 0-10bar body GGG40, disc 1.4408, sleeve EPDM, ATEX
BUWC-800-DSE-G
Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 800mm; Length 190mm
BUWC-800-DSE-G-A
Butterfly valve, manual gearbox GG25 DN800, wafer type, PN10, 0-10bar body GGG40, disc 1.4408, sleeve EPDM, ATEX
BUWC-900-DDE-G
Butterfly valve, manual gearbox GG25 DN900, wafer type, PN10, 0-10bar body GGG40, disc GGG40 PA-coated, sleeve EPDM
BUWD-032-DSTS-L
Butterfly valve with hand lever; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 32mm; Length 32,5mm
BUWE-600-CNE-B
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc Nickel-Aluminum-Bronze B148 C95800
; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 600mm; Length 154mm; Pressure range 0-150psi; Nominal flange pressure ANSI150
BUWE-600-CNE-G
Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc Nickel-Aluminum-Bronze B148 C95800; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 600mm; Length 154mm; Pressure range 0-150psi; Nominal flange pressure ANSI150
BUWK-300-DIMIR-B
Ring-butterfly damper DN300; PN6; Body Ductile iron EN-GJS-400-15; Disc 1.4301; Shaft 1.4305; Graphite-Packing gland; Mounting bracket 180mm; Temperature range Max. 350°C; Operating pressure Max. 500mbar; Mounting flange ISO 5211 F05/07; Square 14mm
BUWK-350-DIMIR-B
Ring-butterfly damper; DN350; PN6; Body ductile iron EN-GJS-400-15; Disc 1.4301; Shaft 1.4305; Graphite-Packing gland; Mounting bracket 180mm; Temperature range max. 350°C; Operating pressure max. 500mbar; Mounting flange ISO 5211 F07/10; Square 14mm
BUWP-600-IIMIR-G
Butterfly damper with gear box; Wafer type; Length According to EN558−1 R20; Body Stainless steel AISI 304; Disc Stainless steel AISI 304, Shaft Stainless steel AISI 304; Packing Graphite; Seat Metallic; Nominal flange pressure PN6; Medium temperature -20...+600°C; Pressure range 0…1bar; DN 600mm; Length 154mm; Leakage rate 0,5%
BUWQ-200-SSQD-B
Butterfly valve Triple eccentric; Bare shaft; Wafer type; Length According to ISO 5752-20; Body 1.4408; Disc 1.4401 Nitrided, Shaft 1.4021; Seat 1.4401+Graphite; Nominal flange pressure PN10/16/25/40/ANSI150/ANSI300; Medium temperature -60…+500°C; Pressure range 0...25bar; DN 200mm; Length 61mm
BUWQ-200-SSQD-G
Butterfly valve with manual gear box Triple eccentric; Wafer type; Length According to ISO 5752-20; Body 1.4408; Disc 1.4401 Nitrided, Shaft 1.4021; Seat 1.4401+Graphite; Nominal flange pressure PN10/16/25/40/ANSI150/ANSI300; Medium temperature -60…+500°C; Pressure range 0...25bar; DN 200mm; Length 61mm
BUWQ-300-SSQD-G
Butterfly valve with manual gear box Triple eccentric; Wafer type; Length According to ISO 5752-20; Body 1.4408; Disc 1.4401 Nitrided, Shaft 1.4021; Seat 1.4401+Graphite; Nominal flange pressure PN10/16/25/40/ANSI150/ANSI300; Medium temperature -60…+500°C; Pressure range 0...25bar; DN 300mm; Length 79mm
BUWR-125-SSMSA-G-C
Ring-butterfly damper DN125; PN10; Body, Disc And Shaft 1.4408; Carbon-Packing gland; Temperature range Max. 600°C; Operating pressure Max. 1bar; Mounting flange ISO 5211 F05; Square 11mm; Actuation: Gear box
BUWV-100-DSN-B
Butterfly valve with bare shaft Series BUWV-DSN-B; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Pressure range 0…25bar; Nominal flange pressure PN25
BUWV-125-CSQD-G
Butterfly valve with manual gear box Triple eccentric; Wafer type; Length According to ISO 5752-20; Body Carbon steel; Disc 1.4021 Nitrided, Shaft 1.4021; Seat 1.4401+Graphite; Nominal flange pressure PN25; Medium temperature -30…+320°C; Pressure range 0...25bar; DN 125mm; Length 57mm; Tightness According to API 598, EN ISO 12266-1 A (For liquids); B (For gases)
BUWV-150-CSQD-G
Butterfly valve with manual gear box Triple eccentric; Wafer type; Length According to ISO 5752-20; Body Carbon steel; Disc 1.4021 Nitrided, Shaft 1.4021; Seat 1.4401+Graphite; Nominal flange pressure PN25; Medium temperature -30…+320°C; Pressure range 0...25bar; DN 150mm; Length 57mm; Tightness According to API 598, EN ISO 12266-1 A (For liquids); B (For gases)
BUWV-300-SSRQ-B-A
butterfly valve with bare shaft; wafer type; length according to EN558−1R20; housing, disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 300mm; length 78mm; nominal flange pressure PN25
