Valves, butterfly valves and gate valves - manually operated

Butterfly valve with manual gear box; ATEX II 2 G/D Ex h X;Wafer type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; DN 400mm; Length 102mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-450-DSS-G

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...16bar; DN 450mm; Length 114mm

BULA-500-DSE-B-3C

butterfly valve with bare shaft; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 500mm; length 127mm; pressure range 0…16bar; flange PN16

BULE-500-DSE-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 500mm; Length 127mm; Pressure range 0-10bar; Nominal flange pressure ANSI150

BUSA-400-DSE-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN16; Medium temperature -10...+60°C; Pressure range 0...16bar; DN 400mm; Length 102mm;

BUL099-125-G-01

Butterfly valve with gear box; 4-fold Eccentric;Lug type; Length According to DIN 3202 K3 (EN 558-1R16); Body; Disc; Seat 1.4408; Shaft 1.4057; Seal 1.4571/Graphite; Medium temperature -10...+450°C; DN 125mm; Pressure range 0-16bar; Nominal flange pressure 16bar

BULA-400-CSE-B

butterfly valve with bare shaft; lug type; length according to EN558−1R20; housing steel epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 400mm; length 102mm; pressure range 0…16bar; flange PN16

BUW2-500-DSY-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR food-safe; Nominal flange pressure PN6/10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 500mm; Length 127mm

BUW6-500-DSY-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR food-safe; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 500mm; Length 127mm

BULA-400-CSN-B-A

Butterfly valve with bare shaft; Lug type; ATEX II 2GD Ex h X EPT 14; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 400mm; Length 102mm; Pressure range 0…16bar; Flange PN16

BUL099-80-B-01

Butterfly valve with bare shaft; 4-fold Eccentric;Lug type; Length According to EN 558-1R16); Body And Disc 1.4408; Shaft 1.4057; Seat Inconel 625; Seal 1.4571; Medium temperature -10...+400°C; DN 80mm; Pressure range 0-40bar; Nominal flange pressure PN40; Mounting flange F07; Square 17mm

BULA-400-CSE-G

butterfly valve with manual gear box; lug type; length according to EN558−1R20; housing steel epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; DN 400mm; length 102mm; pressure range 0…16bar; nominal flange pressure PN16

BULA-400-CSN-G-A

Butterfly valve with manual gear box; Lug type; ATEX II 2GD Ex h X EPT 14; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 400mm; Length 102mm; Pressure range 0…16bar; Nominal flange pressure PN16

GL116-125-W-C-01

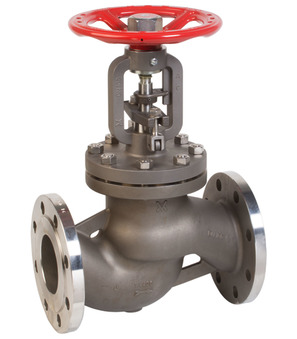

Globe valve; PN40; With bellows; Body 1.4408; Seat, Control cone, Stem Stainless steel 1.4401; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Medium temperature -45..+400°C; DN 125mm; Length 400mm; Pressure range 0...40bar; With locking device

L1VN3IDS2-BS-150-01

Knife gate valve with handwheel; Wafer type; Non rising stem; Body 1.4408; Gate Super duplex SAF 2507 Stellited; Soft sealed EPDM; With reinforced fixing ring Hard chrome plated; Packing PTFE-Synthetic/EPDM Incl. Scraper PTFE/Copper; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90 °C; DN 150mm; Length 60mm; Pressure range 0-10bar; Incl. 2 Flushing holes

BUL099-200-B-02

###ERROR###, product.template, 150900, description_sale, {{{Absperrklappe mit freiem Wellenende}}}; {{{4-fach}}} {{{exzentrisch}}};{{{Abflanschausführung}}}; {{{Baulänge}}} {{{gemäß}}} DIN 3202 K3 (EN 558-1R16); {{{Gehäuse}}} {{{Stahl}}}; {{{Scheibe}}} {{{1.4408}}}; {{{Welle}}} {{{1.4057}}}; {{{Sitz}}} {{{Inconel}}}; {{{Dichtung}}} {{{1.4571}}}; {{{Mediumstemperatur}}} -10...+400°C; DN 200mm; {{{Druckbereich}}} 0-63bar; {{{Flanschnenndruck}}} 63bar; {{{Aufbauflansch}}} F16; {{{Vierkant}}} {{{diagonal}}}??mm; {{{inkl.}}} Aufbaukit}}}, ma_DE, en_GB

BUL099-150-G-01

Butterfly valve with gear box; 4-fold Eccentric;Lug type; Length According to DIN 3202 K3 (EN 558-1R16); Body; Disc; Seat 1.4408; Shaft 1.4057; Seal 1.4571/Graphite; Medium temperature -10...+450°C; DN 150mm; Pressure range 0-16bar; Nominal flange pressure 16bar

BUW4-350-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 350mm; Length 78mm

BUL099-80-D0-01

Butterfly valve with pneumatic actuator; Double acting; 4-fold Eccentric;Lug type; Length According to EN 558-1R16; Body And Disc 1.4408; Seat Inconel 625; Seal 1.4571; Medium temperature -10...+400°C; DN 80mm; Pressure range 0-40bar; Nominal flange pressure PN40; Double acting actuator PAD085-H; Control pressure 5,5...8bar

GA002-150-W

Gate valve with handwheel; Flanged type; Rising stem; Material 1.4408; Metal sealing; Packing Graphite; Nominal flange pressure PN16; Medium temperature -10...+400 °C; DN 150mm; Length 210mm; Pressure range 0-16bar
