Valves, butterfly valves and gate valves - manually operated

Butterfly valve with bare shaft Series BULG-CSN-B-A; ATEX Ex II 2GD h X; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Nominal flange pressure 10/16bar; Pressure range 0...16bar

BULV-150-DSE-B

Butterfly valve with bare shaft Series BULV-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…25bar; Nominal flange pressure PN25

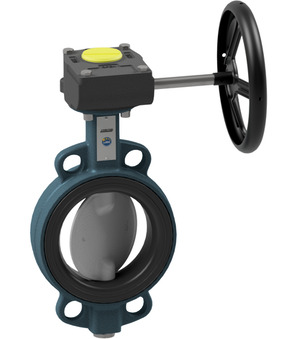

BUW6-150-DSD-G-3C

Butterfly valve with manual gear box; Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-100-DSV-G

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 100mm; Length 52mm

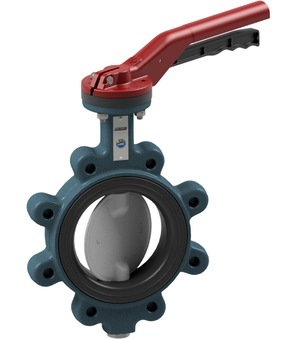

BULG-125-DSV-L-A

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 125mm; Length 56mm; Pressure range 0...16bar; Flange PN10/16; ATEX Ex II 2GD c TX

BULG-125-DSV-L-A3D

Butterfly valve with hand lever; Lug type; ATEX II 2 GD c TX; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 125mm; Length 56mm; Pressure range 0…16bar; Flange PN10/16, Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety

BULG-100-CSN-L-A

Butterfly valve with hand lever Series BULG-CSN-L-A; ATEX Ex II 2GD h X; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Nominal flange pressure PN10/16; Pressure range 0...16bar

LIBU-350-C

Liner; Suitable for Butterfly valves Series BUW2; Material Carboxylated NBR; DN 350mm

GL133-25-W

Globe valve; DN25; PN40; Body Steel; Seat Stainless steel 1.4370; Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Medium temperature -10…+400°C; Pressure range 0…40bar; Butt weld ends

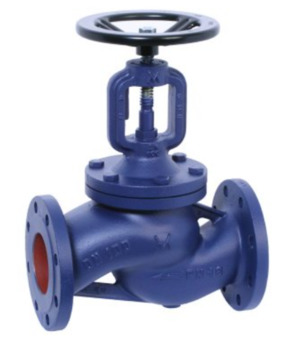

GL119-80-W-C

Globe valve; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5013 (Cobalt blue) Thickness 40µm; Medium temperature -10...+300°C; Pressure range 0...16bar; With control cone; DN 80mm; Length 310mm

BULB-200-DSE-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 200mm; Length 60mm

BULU-200-DSE-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure ANSI150

BULY-200-DSE-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Nominal flange pressure ANSI150

BULG-100-CSWS-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc And Shaft 1.4408; Liner EPDM/FDA; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure 10/16bar

BUW6-150-DSN-G-3C02

butterfly valve with manual gear box; incl. padlock-flange; wafer type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 painted RAL7044; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...16bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; DN 150mm; length 56mm

BUW2-150-DPV-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...6bar; DN 150mm; Length 56mm; Disc Zinc plated ductile iron EN-GJS-400-15

BULG-100-CSWS-B-A

BULG-125-DSE-G

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0...16bar; Flange PN10/16

BUW6-150-CSE-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body made of carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm

BULG-080-SSES-L

Butterfly valve with hand lever; Lug type; Length According to EN558−1R20; Body; Disc And Shaft 1.4408; Liner EPDM; Medium temperature -35...+130°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure PN10/16
