Valves, butterfly valves and gate valves - manually operated

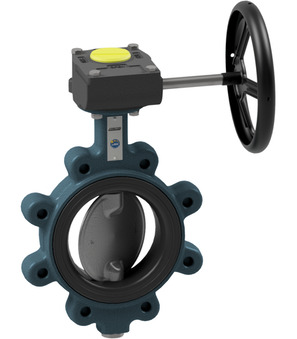

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm

BULY-150-DSE-G

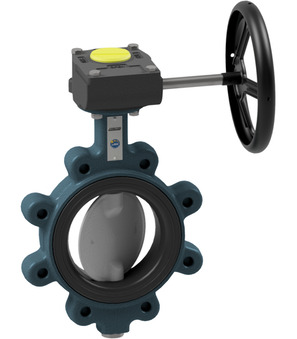

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0-16bar; Flange ANSI150

BULY-150-DSN-G-3C

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 150mm; Length 56mm; Pressure range 0-16bar; Nominal flange pressure ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-200-DSN-B-A3C

Butterfly valve with bare shaft; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULS-080-DSE-G

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…25bar; Flange PN10/16/25

BUW2-125-DSV-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...6bar; DN 125mm; Length 56mm

BUA5-100-DSE1D-D22

Butterfly valve with pneumatic actuator; Wafer type; With DVGW certificate For water; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4021; Liner EPDM; Medium temperature 0...+40°C; Nominal flange pressure PN6/10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Pressure range 0...10bar; DN 100mm; Length 52mm; Actuator PAD085

BUW2-200-DSE-L

Butterfly valve with hand lever Series BUW2-DSE-L; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 200mm; Length 60mm

BU149W125-G-F-DR

Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 125mm; Length 56mm

BULY-150-DSN-G-02

Butterfly valve with manual gear box; Series BULY-DSN-G-02; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure ANSI150; Flange thread UNC; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 150mm; Length 56mm

BULY-150-DSN-G-3C02

Butterfly valve with manual gear box Series BULY-DSN-G-3C02; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure ANSI150; Flange thread UNC; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-125-DSV-B-A

BUW6-200-DSN-B-A

Butterfly valve with bare shaft Series BUW6-DSN-B-A; ATEX Ex II 2GD c TX; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/ANSI150

BULG-125-CSE-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body made of carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0-16bar; Nominal flange pressure 10/16bar

BULY-100-CSE-B

Butterfly valve with bare shaft Series BULY-CSE-B; Lug type; Length According to EN558−1 R20; Body Steel 1.0619 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure ANSI150

BUWX-125-KAE-L

Butterfly valve with hand lever; Wafer type; Body Polypropylen; Disc PVC-U; Shaft 1.4301; Liner EPDM; Nominal flange pressure PN10/ANSI150; Pressure range 0...10bar; DN 125mm; Length 64mm

BULG-125-CSE-L-3C

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body made of carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 125mm; Length 56mm; Pressure range 0-16bar; Flange PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW2-200-DSNS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...6bar; DN 200mm; Length 60mm

BUW6-200-DSES-B

Butterfly valve, free shaft end DN200, wafer, PN10/16/A150, 0-16bar body GGG40, disc and shaft 1.4408, sleeve EPDM
