Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)
BULA-200-CSRQ-B-A3E01
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN16 Medium temperature -29...+230°C; Pressure range 0...16bar; ATEX II 2G/D c TX; DN 200mm; Length 61mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Notch impact test
BULA-200-CSS-B-3C-01
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Steel Epoxy coated C5 According to EN-ISO 12944 RAL7035; Disc 1.4408; Shaft 1.4016; Liner Silicone; Medium temperature -10...+190°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 200mm; Length 60mm; Pressure range 0…16bar; Flange PN16

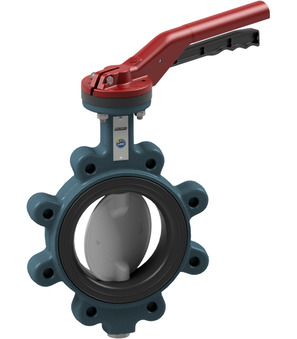

BULA-200-CSS-L-3C-01
Butterfly valve with hand lever; Lug type; Length According to EN558−1R20; Body Steel Epoxy coated C5M RAL7035; Disc 1.4408; Shaft 1.4016; Liner Silicone; Medium temperature -10...+190°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Flange PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULA-200-DSD-B
Butterfly valve with bare shaft; Lug type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Flange PN16

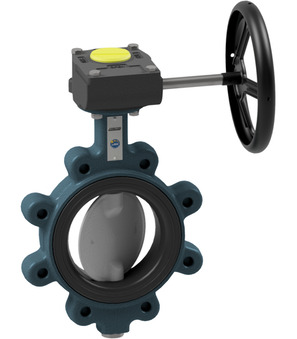

BULA-200-DSD-G
Butterfly valve with manual gear box; Lug type; DVGW-gas-approved; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+60°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Nominal flange pressure PN16bar
BULA-200-DSE-B-A3C01
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 C5M EN-ISO 12944-Coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 200mm; Length 60mm; Pressure range 0...16bar; Flange PN16; ATEX Ex II 2GD c TX
BULA-200-DSE-B-G
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0-16bar; Nominal flange pressure PN16; Free of oil and grease for oxygen
BULA-200-DSE-G-A3F01
Butterfly valve with manual gear box AB215; Handwheel Colour Black; Incl. Unlocking safety device And Visual indication; ATEX II 2 GD Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Coating process According to ISO 12944; Corrosivity category C5M; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Nominal flange pressure PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. Painting certificate; RAL6010
BULA-200-DSE-G-A3F02
Butterfly valve with manual gear box AB215; Handwheel Colour Black; Incl. Unlocking safety device And Visual indication; ATEX II 2 GD Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Coating process According to ISO 12944; Corrosivity category C5M; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Nominal flange pressure PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. Painting certificate; RAL6010; Mounted Limit switch box BE-220M03; IP67 Ex II 2GD Ex d IIC T6 Gb & Ex t IIIC T* Db; Aluminum
BULA-200-DSE-G-A3F03
Butterfly valve with manual gear box; Handwheel Colour Black; Incl. Unlocking safety device And Visual indication; ATEX II 2 GD Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Coating process According to ISO 12944; Colour RAL6010; Corrosivity category C5M; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Nominal flange pressure PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. Painting certificate; Mounted Limit switch box BX45-220MF33 - IP67 EEX ia; Aluminum
BULA-200-DSE-L-A3C01
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 C5M EN-ISO 12944-Coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0-16bar; Flange PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; ATEX Ex II 2GD c TX
BULA-200-DSN-B-3C01
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated C5M RAL7035; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 200mm; Length 60mm; Pressure range 0...16bar; Flange PN16
BULA-200-DSN-L-3C01
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated C5M RAL7035; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 200mm; Length 60mm; Pressure range 0-16bar; Flange PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULA-200-DSS-L
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Silicone; Medium temperature -10...+190°C; DN 200mm; Length 60mm; Pressure range 0-16bar; Flange PN16
BULA-250-DSE-B-G
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 250mm; Length 68mm; Pressure range 0-16bar; Nominal flange pressure PN16; Free of oil and grease for oxygen
BULA-250-DSX-B
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM-HT; Medium temperature -10...+150°C; DN 250mm; Length 68mm; Pressure range 0...16bar; Nominal flange pressure PN16
BULA-250-DSX-G
Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM-HT; Nominal flange pressure PN16; Medium temperature -10...+150°C; Pressure range 0...16bar; DN 250mm; Length 68mm
BULA-250-SSR2Q-B-3C
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE/Inconel 625-Graphite; Nominal flange pressure PN16 Medium temperature -10...+230°C; Pressure range 0...16bar; Fire-safe; DN 250mm; Length 69mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULA-250-SSR2Q-G-3C
Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE/Inconel 625-Graphite; Nominal flange pressure PN16 Medium temperature -10...+230°C; Pressure range 0...16bar; Fire-safe; DN 250mm; Length 69mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULA-300-DSX-B
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM-HT; Medium temperature -10...+150°C; DN 300mm; Length 78mm; Pressure range 0...16bar; Nominal flange pressure PN16
