Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)
A1VN2I5-5N-250

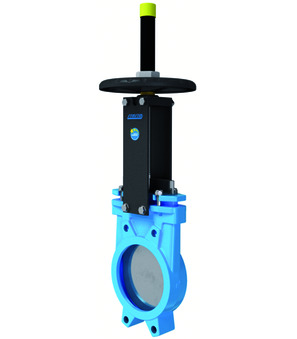

Knife gate valve with handwheel; Wafer type; Non rising stem; Body 1.4408; Gate 1.4401; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 250mm; Length 70mm; Pressure range 0-6bar
A1VN2I5-5N-80
Knife gate valve with handwheel; Wafer type; Non rising stem; Body 1.4408; Gate 1.4401; Soft sealedNBR; Packing PTFE-Synthetic/NBR; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 80mm; Length 50mm; Pressure range 0-10bar
A1VN4H1-F-125-B
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Metal seal with abrasion protection; Packing PTFE-Copper/Scraper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; DN 125mm; Length 56mm; Pressure range 0-10bar
A1VN4H1-F-80-B
Knife gate valve with handwheel; Wafer type; Non rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Metal seal with abrasion protection; Packing PTFE-Copper/Scraper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; DN 80mm; Length 56mm; Pressure range 0-10bar
A2V2H2-5-150-B
Gate valve with handwheel; Wafer type; Rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN6; Unidirectional sealed; Medium temperature -5...+90 °C; DN 150mm; Length 60mm; Pressure range 0-8bar
A3V2H2-5-300
Knife gate valve with handwheel; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN16; Unidirectional sealed; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0-6bar
A3V2H2-5-300-B
Knife gate valve with handwheel; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN16; Unidirectional sealed; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0...6bar
A3V2I4-7-100
knife gate valve with handwheel; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed PTFE; packing PTFE; nominal flange pressure PN16; unidirectional sealed; medium temperature -20...+180 °C; DN 100mm; length 50mm; pressure range 0-10bar
A3V2I4-7-250
knife gate valve with handwheel; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed PTFE; packing PTFE; nominal flange pressure PN16; unidirectional sealed; medium temperature -20...+180 °C; DN 250mm; length 70mm; pressure range 0-10bar
A5C2H2-5-750
knife gate valve with gear box; wafer type; rising stem; housing A216-WCB; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure ANSI150; unidirectional sealed; medium temperature -5...+90°C; DN 750mm; length 110mm; pressure range 0-3bar
A5V2H2-5-100-B
knife gate valve with handwheel; wafer type; rising stem; housing cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure ANSI150; unidirectional sealed; medium temperature -5...+90°C; DN 100mm; length 50mm; pressure range 0-10bar
A5V2H5-5N-250-B
Knife gate valve with handwheel; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90 °C; DN 250mm; Length 70mm; Pressure range 0-10bar
A-AISI304-150-PLATE
Gate; Material Stainless steel 1.4301; For knife gate valve Series A; DN150
BULA-125-CSRS-B-A3C01
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Steel More resistant coating RALXXXX; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN16 Medium temperature -10...+230°C; Pressure range 0...16bar; ATEX II 2G/D c TX; DN 125mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety; Notch impact test
BULA-125-CSRS-L-A3C01
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Steel More resistant coating RALXXXX; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN16 Medium temperature -10...+230°C; Pressure range 0...16bar; ATEX II 2G/D c TX; DN 125mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety; Notch impact test
BULA-150-CSRS-B-A3C01
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Steel More resistant coating RALXXXX; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN16 Medium temperature -10...+230°C; Pressure range 0...16bar; ATEX II 2G/D c TX; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety; Notch impact test
BULA-150-CSRS-L-A3C01
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Steel More resistant coating RALXXXX; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN16 Medium temperature -10...+230°C; Pressure range 0...16bar; ATEX II 2G/D c TX; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Certificate TR CU; With valve pass And Verify Safety; Notch impact test
BULA-200-CSN-B-3C-01
Butterfly valve with bare shaft Series BULA-CSN-B-3C01; Lug type; Length According to EN558−1R20; Body Steel 1.0619 Epoxy coated C5 According to EN-ISO 12944 RAL7035; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Flange PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULA-200-CSN-B-3E-01
Butterfly valve with bare shaft Series BULA-CSN-B-3E-01; Lug type; Length According to EN558−1R20; Body Steel 1.0619; Epoxy coated C5 According to EN-ISO 12944 RAL7035; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -25...+100°C; DN 200mm; Flange PN16; Pressure range 0…16bar; Length 60mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULA-200-CSN-L-3C-01
Butterfly valve with hand lever Series BULA-CSN-L-3C01; Lug type; Length According to EN558−1R20; Body Steel 1.0619 Epoxy coated C5 According to EN-ISO 12944 RAL7035; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 200mm; Length 60mm; Pressure range 0…16bar; Flange PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
