Valves, butterfly valves and gate valves - manually operated

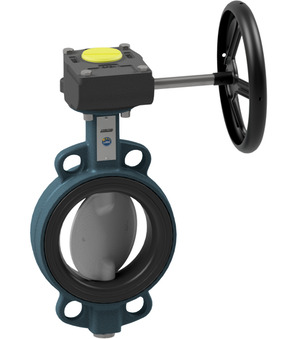

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -35...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Pressure range 0...16bar; DN 150mm; Length 56mm

BUW6-150-SSNS-G

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body, Disc And Shaft 1.4408; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 150mm; Length 56mm

BUW6-150-SSFS-B-3C

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner Silicone Food safe; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C;Pressure range 0...16bar; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-200-CSN-R-A

Butterfly valve with hand lever Continuously adjustable Adjustable; Series BUW6-CSN-R-A; ATEX II 2G/D c TX; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 200mm; Length 60mm

BULG-150-CSV-B-A

Butterfly valve with bare shaft Series BULG-CSV-B-A; ATEX II 2 GD Ex h X; Lug type; Length According to EN558−1 R20; Body made of carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0...16bar; Nominal flange pressure PN10/16

BULG-150-SSNS-B-3C

Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body And Disc And Shaft 1.4408; Liner NBR; Medium temperature -10...+100°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULY-150-CSV-B-01

Butterfly valve with bare shaft Series BULY-CSV-B-01; Lug type; Length According to EN558−1R20; Body Steel 1.0619; Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC

BULY-150-CSV-B-3C01

Butterfly valve with bare shaft Series BULY-CSV-B-3C01; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB; Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

GL116-15-W-C-01

Globe valve; PN40; Bellow; Body 1.4408; Seat, Control cone, Stem Stainless steel 1.4401; Seat seal PTFE; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Medium temperature -10...+400°C; Pressure range 0...40bar; DN 15mm; Length 130mm

BULY-150-CSV-B-A

Butterfly valve with bare shaft; ATEX - II 2GD Ex h X EPT 14; Lug type; Length According to EN558−1R20; Body Steel 1.0619; Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150

BUPX-150-KKE-L

Butterfly valve with hand lever; Wafer type; Body Polypropylen Fibre-glass-reinforced; Disc Polypropylen; Liner EPDM; Nominal flange pressure PN10/ANSI150; Medium temperature -0...+80°C; Pressure range 0...10bar; DN 150mm; Length 70mm

BUW6-200-CSS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Steel; Disc 1.4408; Shaft 1.4016; Liner Silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -29...+190°C; Pressure range 0...16bar; DN 200mm; Length 60mm

GL164-15-W

Needle valve; Body Stainless steel 1.4571; Stem seal PTFE; Medium temperature -20...+250°C; Flange PN16; DN 15mm; Pressure range 0...16bar; Length 132mm; Inside diameter 7mm; Material handwheel Steel

BULA-100-CSRS-L-3C

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4542; Seat RTFE; Nominal flange pressure PN16 Medium temperature -29...+230°C; Pressure range 0...16bar; DN 100mm; Length 52mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-300-DSX-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM HT; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+150°C; Pressure range 0...16bar; DN 300mm; Length 78mm

GL133-65-W

Globe valve; DN65; PN40; Body Steel; Seat Stainless steel 1.4370; Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Medium temperature -10…+400°C; Pressure range 0…40bar; Butt weld ends

BULS-080-CSRS-G

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25

BUW6-250-DSE-W

Butterfly valve with hand gearbox, wafer version, face-to-face length to EN558−1 R20, body GGG40 epoxy-coated, disc 1.4408, shaft 1.4016, sleeve EPDM, flange rating PN10/16/ANSI150, medium temperature -30...+130°C, pressure range 0...16bar, DN 250mm, installation length 68mm gearbox prepared for limit switch box

BULY-300-DSV-G

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 300mm; Length 78mm
