Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)
BULS-080-CSIS-B
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25
BUW4-150-DSTS-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm
BULA-200-DLES-B
butterfly valve with bare shaft; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 HALAR-coated; shaft AISI 316; liner EPDM; medium temperature -10...+100°C; DN 200mm; length 60mm; pressure range 0…16bar; flange PN16

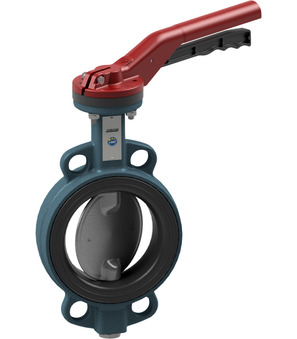

BUW6-200-CSN-L
Butterfly valve with hand lever Series BUW6-CSN-L; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated, Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 200mm; Length 60mm
BUW6-200-CSN-L-3C
Butterfly valve with hand lever Series BUW6-CSN-L-3C; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; Nominal flange pressure PN10/16/ANSI150; Pressure range 0...16bar; DN 200mm; Length 60mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BUW4-150-DSTS-B-A
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 150mm; Length 56mm; ATEX Ex II 2GD c TX
BUW4-150-DSTS-B-A3C
butterfly valve with bare shaft; wafer type; length according to EN558−1 R20; housing carbon steel A216-WCB epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 150mm; length 56mm; ATEX Ex II 2GD c TX; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
BUW4-100-DSTS-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 100mm; Length 52mm
BULA-050-SSR2S-G-3C
Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE/Inconel 625-Graphite; Nominal flange pressure PN16 Medium temperature -10...+230°C; Pressure range 0...16bar; Fire-safe; DN 50mm; Length 43mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BUW4-050-CZTS-L-3E
Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4542 PTFE-coated; Shaft 1.4542; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -29...+190°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BUW6-200-CSN-L-A
Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Steel Epoxy coated, Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; ATEX II 2G/D c TX; DN 200mm; Length 60mm

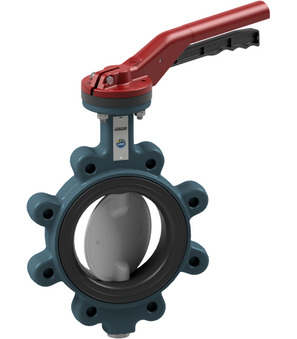

BULG-150-CSV-L-A
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0...16bar; Nominal flange pressure PN10/16; ATEX Ex II 2GD c TX
BUW6-300-DSN-G-3C
Butterfly valve with manual gear box Series BUW6-DSN-G-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BUW6-200-CSN-B-A
Butterfly valve with bare shaft; Wafer type; ATEX II 2G/D c TX; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated, Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; Nominal flange pressure PN10/16/ANSI150; Pressure range 0...16bar; DN 200mm; Length 60mm
BULG-150-SSNS-L-3C
Butterfly valve with hand lever; Lug type; Length According to EN558−1R20; Body AndDisc And; Shaft 1.4408; Liner NBR; Medium temperature -10...+100°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16
BULY-150-CSV-L-3C01
Butterfly valve with hand lever Series BULY-CSV-L-3C01; Lug type; Length According to EN558−1R20; Body Steel 1.0619; Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

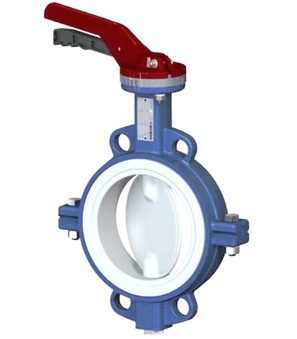

BUW6-150-SSFS-L-3C
Butterfly valve with hand lever; Wafer type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner Silicone Food safe; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BUW9-080-CSIS-L-01
Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc 1.4408, Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -29...+425°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Incl. 2 mechanical limit switches OPEN/CLOSED
BULY-150-CSV-L-A
Butterfly valve with hand lever; ATEX - II 2GD Ex h X EPT 14; Lug type; Length According to EN558−1R20; Body Steel 1.0619; Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure ANSI150
BULG-150-CSV-B
Butterfly valve with bare shaft Series BULG-CSV-B; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 150mm; Length 56mm; Pressure range 0...16bar; Nominal flange pressure 10/16bar
