Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)
MS-2MC07-PIZ001
Mounting bracket With 2 mechanical limit switches; NC/NO contact; For butterfly valve with hand lever DN40-DN300; F10/F07; Mounted
MUAS 12 ES
Socket gate valve, female thread 1/2", DN 15 mm, body 1.4408
GL002-25-W
Globe valve; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5005 (Blue) Thickness 50ym; Medium temperature -10...+300°C; Pressure range 0...16bar; DN 25mm; Length 160mm
BULG-050-DSN-B-A3C
Butterfly valve with bare shaft; ATEX II 2 GD Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 50mm; Length 43mm; Pressure range 0…16bar; Flange PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
110VA-1/4"-NPT-3C
Needle valve; Body Stainless steel 1.4571; Stem seal PTFE; Medium temperature -20...+250°C; NPT 1/4"; DN 5mm; Pressure range 0…400bar; Length 55mm; Material handwheel Polyamide; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULG-050-DSES-B
Butterfly valve, bare shaft end DN50, lug type, PN10/16, 0-16bar body GGG40, disc and shaft 1.4408, sleeve EPDM
BULG-065-DSN-B-3C
Butterfly valve with bare shaft; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 65mm; Length 46mm; Pressure range 0...16bar; Flange PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BULI-065-DSE-B
Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 65mm; Length 46mm; Disc 1.4408
BUW6-050-DUX-B
Butterfly valve, bare shaft end DN50, wafer type, PN10/16/A150, 0-16bar body GGG40, disc galvanised steel, sleeve EPDM-HT

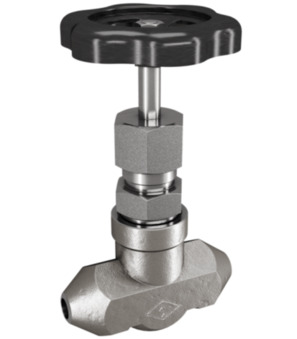

GL136-12-W
Globe valve; Material Stainless steel 1.4104; Handwheel Sheet steel; Medium temperature Max. 400°C; Connection Female thread G1/2"; Pressure range 0...640bar; DN 8mm; Length 80mm
111VA-1/2"-A
Needle valve; Body Stainless steel 1.4571; Stem seal PTFE; Medium temperature -60...+230°C; Connection G 1/2" Male thread; DN 6mm; Pressure range 0...640bar; Length 70mm; Material handwheel Polyamide
111VA-1/4"
Needle valve, connection 1/4" male thread material 1.4571, PN 640
BUW6-065-DSES-B
Butterfly valve with free shaft end DN65, wafer, PN10/16/A150, 0-16bar body GGG40, disc and shaft 1.4408, sleeve EPDM
CC-SE27-10-STW-01
Control cone Suitable to SE27-10-STW-01
BUW6-040-DSN-L
Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 40mm; Length 33mm
BULG-080-DUN-B
Butterfly valve, bare shaft end DN80, lug type, PN10/16, 0-16bar body GGG40, disc galvanised steel, sleeve NBR

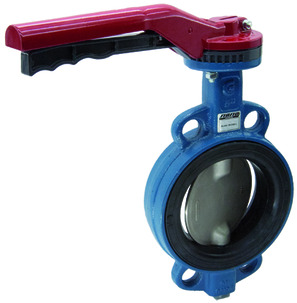

BUW2-080-DUE-L
Butterfly valve, hand lever 10 positions DN80, wafer type, PN10/16/A150, 0-6bar body GGG40, disc galvanised steel, sleeve EPDM
250.56
Socket shut-off valve, female thread 2", DN 50 mm, body gunmetal
SYS-204-01
Inspection certificate EN-10204-3.1; For material, pressure and tightness

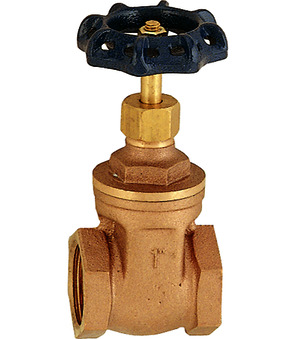

250.39
Socket gate valve, female thread 2", DN 50 mm, body gunmetal
