Valves, butterfly valves and gate valves - manually operated

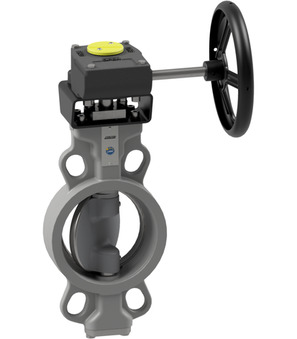

Butterfly valve with manual gear box Series BUW-SSIS-G; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Flange PN10/16/25/ANSI150; Free of oil and grease for oxygen

BUW9-150-SSIS-G-01

butterfly valve with manual gear box series BUW-SSIS-G-01; wafer type; double eccentric; length according to EN558−1R20; housing, disc AISI 316; shaft AISI 630; seat Inconel 625; medium temperature -10...+425°C; pressure range 0...16bar; DN 150mm; length 56mm; flange PN10/16/25/ANSI150; stem extension 1m stainless steel

A1V2I2-5-150-03

knife gate valve with handwheel series A1V; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...10bar; protection plates stainless steel; handwheel stainless steel

MS-2MC07-PIZ001-X

Mounting bracket With 2 mechanical limit switches; NC/NO contact; For butterfly valve with hand lever DN40...DN300; F10/F07

GL002-15-W

Globe valve; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5005 (Blue) Thickness 50ym; Medium temperature -10...+300°C; Pressure range 0...16bar; DN 15mm; Length 130mm

250.51ES

globe valve series 250-ES; body stainless steel AISI 316/AISI 316; handwheel aluminum; <Cone seal metallic, body seal and packing PTFE; medium temperature -20...+175°C; pressure range 0...14bar; RP 1/2"; DN 15mm; length 52mm

GL139-10-W

Globe valve; Body, Seat, Cone, Stem Steel 1.0460; Handwheel Steel; Stem seal Graphite; Rising stem; Medium temperature -20...+400°C; Connection Butt weld ends; Pressure range 0...640bar; Butt weld ends 10,2mm; DN 6mm; Length 80mm

BULG-065-DUN-B

Butterfly valve, bare shaft end DN65, lug type, PN10/16, 0-16bar body GGG40, disc galvanised steel, sleeve NBR

BUW6-050-DSN-B-A

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 50mm; Length 43mm; Pressure range 0...16bar; Nominal flange pressure PN10/16/ANSI150; ATEX Ex II 2GD c TX

MUA114

Socket shut-off valve DN32, G11/4", PN16 body gunmetal, bonnet brass, seal PTFE for saturated steam up to max. 170°C

LIBU-065-S

Liner; Suitable for Butterfly valves Series BUW6, BUW2, BUW4, BULG And BULC; Material Silicone; Nominal diameter 65mm

GL002-20-W

BULG-040-DSN-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 40mm; Length 33mm; Pressure range 0…16bar; Nominal flange pressure PN10/16

BULI-050-DSE-B

Butterfly valve with bare shaft; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 50mm; Length 43mm; Disc 1.4408
