Valves, butterfly valves and gate valves - manually operated

gate valve with handwheel; wafer type; non rising stem; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90 °C; DN 150mm; length 56mm; pressure range 0-10bar; prepared for 2 inductive switches MSU03, MSU04, MSU05

UB1P2D5-5N-125-PIB

knife gate valves with lever; wafer type; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90 °C; DN 125mm; length 56mm; pressure range 0-10bar; prepared for 2 inductive switches MSU03, MSU04, MSU05

UB1N2D5-5N-150-PIB

Knife gate valve with double acting actuator; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 150mm; Length 56mm; Pressure range 0-10bar; Prepared for 2 inductive switches MSU03, MSU04, MSU05

UB1N2D5-5N-125-PIB

Knife gate valve with double acting actuator; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 125mm; Length 56mm; Pressure range 0-10bar; Prepared for 2 inductive switches MSU03, MSU04, MSU05

UB1N2D5-5N-100-PIB

knife gate valve with double acting actuator; wafer type; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 100mm; length 52mm; pressure range 0-10bar; prepared for 2 inductive switches MSU03, MSU04, MSU05

GL134-25-W-C

globe valve with control cone; body, seat, cone, stem stainless steel AISI 316Ti; handwheel steel; stem seal PTFE; rising stem; medium temperature -20...+250°C; connection butt weld ends 33,7mm; pressure range 0...160bar; DN 24mm; length 170mm

C3J-BUW4-200-DSTS

inspection certificate EN-10204-3.1; for material, pressure and tightness

PS-ABZ1-N3HX61A-5S-300-PMB

packing; suitable for knife gate valve ABZ1-N3HX61A-5S-300-PMB

GL123-50-W-C-3C

globe valve series GL123; PN40; with control cone; body AISI 316; seat, cone, stem stainless steel AISI 316; handwheel steel; packing gland graphite; back seal; metal sealing; non rising stem; medium temperature -10..+400°C; DN 50mm; length 230mm; pressure range 0-40bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

BUW4-065-DSTS-B-3C

butterfly valve with bare shaft; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 65mm; length 46mm; inspection certificate EN-10204-3.1; for material, pressure and tightness

C3J-BUW4-065-DSTS

inspection certificate EN-10204-3.1; for material, pressure and tightness

BUW4-080-DSTS-B-3C

butterfly valve with bare shaft; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc and shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 80mm; length 46mm; inspection certificate EN-10204-3.1; for material, pressure and tightness

C3J-BUW4-080-DSTS

inspection certificate EN-10204-3.1; for material, pressure and tightness

BULY-040-DSN-G-01

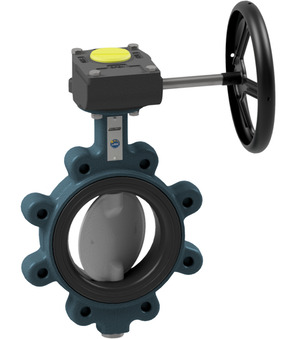

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 40mm; Length 33mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC

A1V2H2-5-200-PIBD4

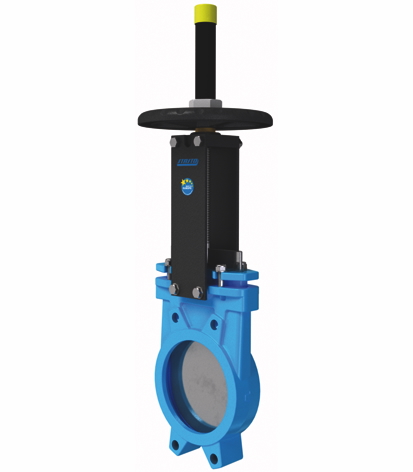

knife gate valve with handwheel series A1V-PIB; wafer type; rising stem; body body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 200mm; length 60mm; pressure range 0...8bar; stem extension 800mm; incl. visual position indicator

C3J-BUW6-300-DSN

inspection certificate EN-10204-3.1; for material, pressure and tightness

BUW4-400-DZTS-B

butterfly valve with bare shaft series BUW4-DZTS-B; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ASTM A747 CB7Cu-1 PTFE-coated; shaft ASTM A747 CB7Cu-1; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 400mm; length 102mm

BUW4-400-DZTS-G

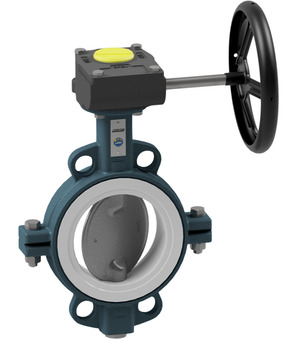

butterfly valve with manual gear box; series BUW4-DZTS-G; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc ASTM A747 CB7Cu-1 PTFE-coated; shaft ASTM A747 CB7Cu-1; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 400mm; length 102mm

STN-A1EM2I2-5-500

Stem nut Suitable to A1EM2I2-5-500

BULG-100-SSXS-B

butterfly valve with bare shaft; lug type; length according to EN558−1 R20; body; disc and shaft AISI 316; liner EPDM HT; nominal flange pressure PN10/16; medium temperature -45...+150°C; pressure range 0...16bar; DN 100mm; length 52mm
