Valves, butterfly valves and gate valves - manually operated

Butterfly valve with bare shaft Series BULU-SSES-B; Lug type; Length According to EN558−1 R20; Body, Disc And Shaft 1.4408; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure ANSI150

BULU-200-SSES-B-01

Butterfly valve with bare shaft Series BULU-SSES-B-01; Lug type; Length According to EN558−1 R20; Body, Disc And Shaft 1.4408; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0…10bar; Nominal flange pressure ANSI150; Flange thread UNC

ABZ1N3HX61A-Z-300-PMB-01-MSU01A

ABZ1N3HX61A-Z-300-PMB-01
gate valve with double acting pneumatic actuator; wafer type; housing cast iron EN-GJL-250; gate Hardox 600; soft sealed Flucast-R; with reinforced fixing ring; packing PTFE-synthetic/EPDM/scraper; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; prepared for 2 mechanical switches MSU01; DN 300mm; length 70mm; pressure range 0...6bar; flushing holes; packing gland 1.4408
MSU01A
electrical position indication series MSU; suitable for knife gate valve; Built-on mechanical limit switch (1 pieces)

C3J-BULG-080-DSN

Inspection certificate EN-10204-3.1; For material, pressure and tightness

C3J-BULG-080-DSN-A

Inspection certificate EN-10204-3.1; For material, pressure and tightness

C3J-CH062-50

Inspection certificate EN-10204-3.1; For material, pressure and tightness

C3J-BULY-080-DSN-01

Inspection certificate EN-10204-3.1; For material, pressure and tightness

C3J-BULY-200-DSV-01

Inspection certificate EN-10204-3.1; For material, pressure and tightness

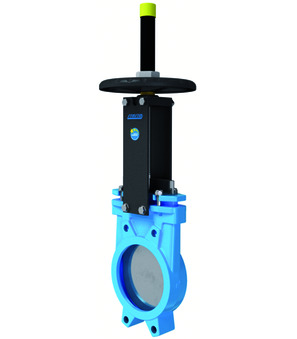

A3V2H2-5-500-B

Knife gate valve with handwheel; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN16; Unidirectional sealed; Medium temperature -5...+90°C; DN 500mm; Length 110mm; Pressure range 0...4bar

SGG-A1V2H2-5-200-B

Gate sliding guides Suitable for Knife gate valve Series A; DN 200mm; Material RCH-1000/Ertalon

C3J-BULY-065-DSN-01

Inspection certificate EN-10204-3.1; For material, pressure and tightness

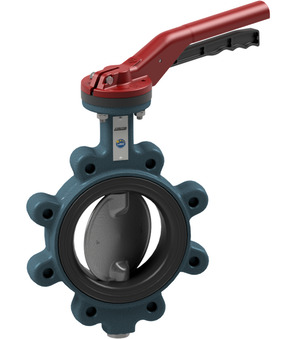

BULY-065-DSN-L-3C01

Butterfly valve with hand lever Series BULY-L-3C01; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 65mm; Length 46mm; Pressure range 0-16bar; Flange ANSI150; Flange thread UNC; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

GL175-20-W

Globe valve; DN20; PN40; Body Stainless steel 1.4021; Seat Stainless steel 1.4370; Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Medium temperature -10…+400°C; Pressure range 0…40bar; Butt weld ends

C3Q-BUW6-100-CSN-A

Notch impact test -29°C; Inspection certificate EN-10204-3.1

C3J-BUW6-100-CSN

Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-100-CSN-R-A3E

Butterfly valve with hand lever Series BUW6-CSN-R-A3E; ATEX II 2 GD Ex h X; Hand lever Continuously adjustable Adjustable; Wafer type; Length According to EN558−1R20; Body Steel 1.0619 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; DN 100mm; Length 52mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
