Valves, butterfly valves and gate valves - manually operated

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -35...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Pressure range 0...16bar; DN 100mm; Length 52mm

BULG-125-CSE-G-3C

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body made of carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 125mm; Length 56mm; Pressure range 0...16bar; Flange PN10/16

BUW9-065-SSRS-B-A

butterfly valve with bare shaft; wafer type; length according to EN558−1R20; housing, disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 65mm; length 46mm; nominal flange pressure PN10/16/25/ANSI150

BUA7A-080-CA3TD-L

butterfly valve with hand lever; wafer type; length according to ISO 5752-20; housing steel epoxy coated; disc 1.4409; shaft AISI 420; seat PTFE/silicone; nominal flange pressure PN10/16/25/40/A150/A300; medium temperature -30...+200°C; pressure range 0...50bar; DN 80mm; length 47mm

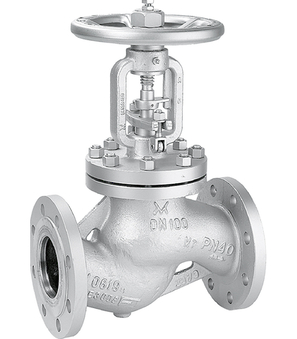

GL162-50-W

globe valve; DN50; ANSI600; housing carbon steel A216-WCB; cone, stem AISI 410; handwheel cast iron; packing gland graphite; metal sealing; rising stem; medium temperature -29…+425°C; pressure range 0...87,6bar

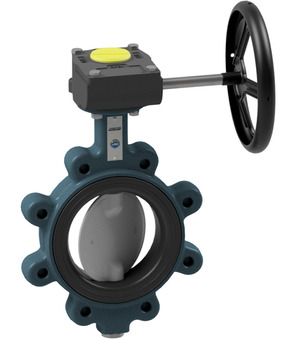

BULA-200-DSE-G-3C

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0...16bar; Flange PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULU-200-DSE-G

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 200mm; Length 60mm; Pressure range 0-10bar; Flange ANSI150

BUW6-100-SSVS-B-A

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body, Disc And Shaft 1.4408; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+200°C; Pressure range 0...16bar; DN 100mm; Length 52mm; ATEX II 2G/D c TX

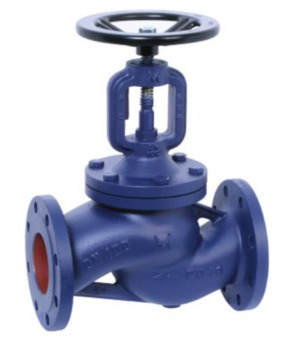

GL119-100-W-01

Globe valve; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Seal PTFE; Rising stem; Body Painted RAL5013 (Cobalt blue) Thickness 40ym; Medium temperature -10...+300°C; Pressure range 0...16bar; DN 100mm; Length 350mm

BUW6-100-SSXS-L-01

Butterfly valve with hand lever; Intermediate flange feed; Length According to EN558−1 R20; Body; Disc And Shaft 1.4408; Liner EPDM HT; Nominal flange pressure PN10/16/ANSI150; Medium temperature -45...+150°C; Pressure range 0...16bar; DN 100mm; Length 52mm; Incl. Mounting bracket With 2 mechanical limit switches; NC/NO contact

BULY-100-SSES-L-01

Butterfly valve with hand lever Series BULY-L-01; Lug type; Length According to EN558−1 R20; Body, Disc And Shaft 1.4408; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Flange thread UNC

BULY-200-DSN-G-3C01

Butterfly valve with manual gear box Series BULY-DSN-G-3C01; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 200mm; Length 60mm; Pressure range 0-16bar; Nominal flange pressure ANSI150; Flange thread UNC; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULG-080-SSNS-G-3C

Butterfly valve with manual gear box Series BUL-SSNS-G-3C; Lug type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner NBR; Medium temperature -10...+100°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Nominal flange pressure PN10/16; Incl. inspection certificate EN 10204-3.1; for material, pressure and tightness

BUW6-200-DSX-G

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM HT; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+150°C; Pressure range 0...16bar; DN 200mm; Length 60mm

BUW6-150-DSV-G

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm

SEC10-114-STW

Angle seat valve; Manual operated; Body 1.4408; Cone, Stem, Head end Stainless steel 1.4571; Handwheel Steel Plastic coated; Seat seal PTFE; Packing PTFE filled with coal; Back seal; PTFE; Rising stem; Medium temperature -30…+200°C; Pressure range 0...40bar; Thread G11/4"; DN 32mm; Length 110mm; Control cone Linear 100%(KVS20)

GL146-40-W-C

Globe valve; PN40; With control cone; Bellow; Body Steel; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Non rising stem; Medium temperature -10...+400°C; DN 40mm; Length 200mm; Pressure range 0...40bar
