Valves, butterfly valves and gate valves - manually operated
| DN | Length | Flange | Pressure range | Design | Type |
|---|---|---|---|---|---|
| 50 mm | 43 mm | PN10/16 | 0...16 bar | - | BULG-050-DSX-L |
| DN | Length | Pressure range | Type |
|---|---|---|---|
| 80 mm | 46 mm | 0...10 bar | BUW4-080-DSTS-L |
| DN | Length | Flange | Pressure range | Design | Type |
|---|---|---|---|---|---|
| 50 mm | 43 mm | PN10/16 | 0...16 bar | - | BULG-065-DSX-L |
| DN | Length | Pressure range | Type |
|---|---|---|---|
| 100 mm | 52 mm | 0...10 bar | BUW4-100-DSTS-L |
| DN | Length | Flange | Pressure range | Design | Type |
|---|---|---|---|---|---|
| 50 mm | 43 mm | PN10/16 | 0...16 bar | - | BULG-080-DSX-L |
| DN | Length | Pressure range | Type |
|---|---|---|---|
| 125 mm | 56 mm | 0...10 bar | BUW4-125-DSTS-L |
| DN | Length | Flange | Pressure range | Design | Type |
|---|---|---|---|---|---|
| 50 mm | 43 mm | PN10/16 | 0...16 bar | - | BULG-100-DSX-L |
Butterfly valve with hand lever Series BUW4-DSTS-L
Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar
| DN | Length | Pressure range | Type | Sequence |
|---|---|---|---|---|
| 150 mm | 56 mm | 0...10 bar | BUW4-150-DSTS-L | 27930006 |
| 200 mm | 60 mm | 0...10 bar | BUW4-200-DSTS-L | 27930007 |
Butterfly valve with hand lever Series BULG-L, BULC-L
Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C
| DN | Length | Flange | Pressure range | Design | Type | Sequence |
|---|---|---|---|---|---|---|
| 65 mm | 46 mm | PN10/16 | 0...16 bar | - | BULG-065-DSE-L | 27930007 |
| 80 mm | 46 mm | PN10/16 | 0...16 bar | - | BULG-080-DNE-L | 27930008 |
Butterfly valve with hand lever Series BUW4-DSTS-L
Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar
| DN | Length | Pressure range | Type | Sequence |
|---|---|---|---|---|
| 250 mm | 68 mm | 0...10 bar | BUW4-250-DSTS-L | 27930008 |
| 300 mm | 78 mm | 0...10 bar | BUW4-300-DSTS-L | 27930009 |

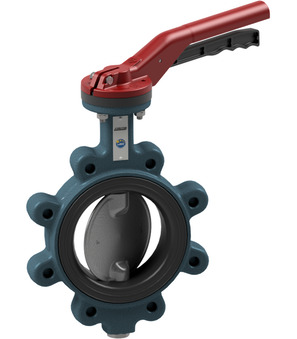

Butterfly valve with hand lever Series BULG-L, BULC-L
Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C
| DN | Length | Flange | Pressure range | Design | Type | Sequence |
|---|---|---|---|---|---|---|
| 80 mm | 46 mm | PN10/16 | 0...16 bar | - | BULG-080-DSE-L | 27930009 |
| 100 mm | 52 mm | PN10/16 | 0...16 bar | - | BULG-100-DSE-L | 27930010 |
| 125 mm | 56 mm | PN10/16 | 0...16 bar | - | BULG-125-DSE-L | 27930011 |
| 125 mm | 56 mm | PN10/16 | 0...16 bar | - | BULG-125-DSE-L-01 | 27930012 |
| 125 mm | 56 mm | PN10/16 | 0...16 bar | - | BULG-125-DSE-L-3C01 | 27930013 |
| 150 mm | 56 mm | PN10/16 | 0...16 bar | - | BULG-150-DNE-L | 27930014 |
| 150 mm | 56 mm | PN10/16 | 0...16 bar | - | BULG-150-DSE-L | 27930015 |
