globe valve; body steel; stem seal graphite; medium temperature -20...+400°C; pressure range 0...315bar; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness; connection 10L; DN 6mm; length 70mm; material handwheel Polyamid

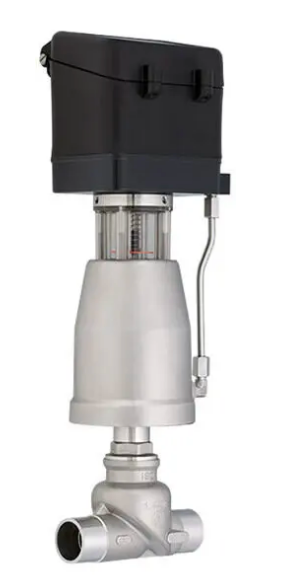

globe valve-control valve; DN40; welding ends according to ISO 1127; body AISI 316; seal PTFE; kvs-value 12,3 (40%); characteristic equal percentage; with mounted digital positioner 4-wire; 24VDC; control signal 4-20mA; head end gasket Klinger Top-chem-2000

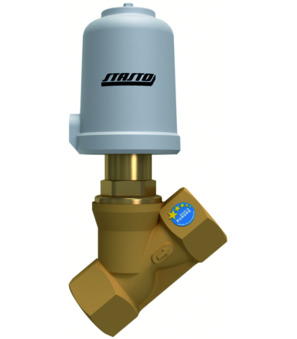

Pneumatically operated seat valve Series SE02-ST; NC; Body Bronze; Seal FKM; Female thread; For liquids; Closing against flow; Medium temperature -30...+170°C; G 1"; DN 25mm; Operating pressure 0...5,7bar; Control pressure 4,5...10bar; Diameter Actuator 50mm; Electrical position indicator with connector; IP65

pinch valve series VF; directly operated; body aluminum; aluminum flange with steel socket; tube natural rubber; control pressure 1,8...2,5 bar higher than effective pressure; medium temperature -10...+80 °C; DN 100mm; operating pressure 0-6bar; flange connection PN10/16; length 280mm; control port 1/4"; ATEX, I M2 / II 2GD II C TX

BUW6-080-DUN-S22

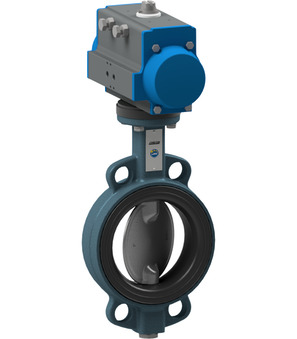

butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 80mm; length 46mm; disc zinc plated steel; actuator PAS1155
EP0S10PZZ
mounted positioner; digitaler I/P-Stellungsregler, 4-20 mA; actuator PAS052-270; position feedback 4-20mA

Knife gate valve without actuator; incl. adapter for AUMA electric actuator; rising stem; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 400mm; length 100mm; pressure range 0...6 bar; with gear box; flange F10

butterfly valve with pneumatic actuator series BUW6-DSE-D2; ATEX II 2 G/D Ex h; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAD075

knife gate valve with double acting actuator series A1N; wafer type; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/copper; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0…8bar

Knife gate valve with double acting actuator; Wafer type; Body 1.4408; Gate 1.4401; Seal EPDM-White; Packing PTFE; Nominal flange pressure PN10; Control pressure 6...10bar; DN 200mm; Length 89mm; Pressure range 0..3bar; Prepared for 2 inductive limit switches M18; Sliding guide PTFE; Mudguards in steel

knife gate valve with double acting actuator series A1N; wafer type; body body EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/copper; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 80mm; length 50mm; pressure range 0…10bar

butterfly valve with electrical actuator series BUW6-DSE-02; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; operating time 27s; voltage 24VAC/DC

A1N2H2-5-150-PIB
knife gate valve with double acting actuator series A1N-PIB; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 150mm; length 60mm; pressure range 0…8bar
ABS40
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
coil type CS; connector size 16mm; voltage 24VDC
6-14123-0000-S
connector; connector size 16mm; Standard; voltage 0-250VAC/DC
MSU03/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (2 pieces); cable length 2m

FK1N1I1-6-200-PI01
knife gate valve with double acting actuator; wafer type; body AISI 316; gate AISI 316; metal sealing; packing graphite; sliding guide bronze; protection plates made of stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 6...10bar; medium temperature -5...+300 °C; prepared for 2 inductive limit switches M18; DN 200mm; length 89mm; pressure range 0...0,5bar; incl. 2 flushing holes; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness
MSU04/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, ATEX, EExi (2 pieces); cable length 2m

Butterfly valve with electric control actuator series BULG-DSN-02; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16; medium temperature -10...+100°C; pressure range 0...10bar; DN 125mm; length 56mm; operating time 27s; voltage 24VAC/DC; incl. positioner; input signal 4-20mA/0-10V

PI02-80-YAA-14-A
pinch valve; ATEX zone 1 and 21; directly operated; body aluminum; aluminum flange with steel socket; tube natural rubber electrically conductive; control pressure 1,8...2,5 bar higher than effective pressure; medium temperature -10...+80 °C; DN 80mm; operating pressure 0...6bar; flange connection PN10/16; length 231mm; control port 1/4"
ABS33
mounted pilot valve series ABS; silencer; suitable for pinch valves series PI08, series VF; connector size 32mm; 3/2-Wegemagnetventil (31A2FV15-U); standard coil BDA
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
C003-32-LV-2
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

pneumatically operated seat valve; NC; body stainless steel AISI 316; seal PTFE; butt weld ends according to DIN11850-2; for liquids; closing against flow; medium temperature -30...+170°C; DN 50mm; operating pressure 0...4,1bar; control pressure 3,5...10bar; diameter actuator 80mm; head end gasket Klinger Top-chem-2000; splash water protection

valve manifold; 5-fold; suitable to series CSE01/02; DN 10mm

head end gasket Sigraflex for angle seat valve SE01/02/03, DN32

pinch valve; NC; body AISI 304; for endless hoses; diameter 10mm; control pressure 3-6bar; diameter actuator 80mm; incl. digital positioner type 8049; 4-wire

Butterfly valve with pneumatic actuator Series BUW4-SSNS-D3; Wafer type; Length According to EN558−1R20; Body, Disc And Shaft 1.4408; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -25...+100°C; Pressure range 0...6bar; DN 300mm; Length 78mm; Actuator PAD125
