BUW2-200-DSV-D32-3C
butterfly valve with pneumatic actuator series BUW2-DSV-D-3C; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...6bar; DN 200mm; length 60mm; actuator PAD085; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
EB0X01-C0
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic; with visual position indicator on/off
ABS55
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-Wege-NAMUR-Impulsmagnetventil (NM52W2S-TP); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

BUW2-250-DSV-D32-3C
butterfly valve with pneumatic actuator series BUW2-DSV-D-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator PAD115; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
EB0X01-C0
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic; with visual position indicator on/off
ABS55
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-Wege-NAMUR-Impulsmagnetventil (NM52W2S-TP); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

Butterfly valve with pneumatic actuator; Lug type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; DN 150mm; Length 56mm; Pressure range 0...16bar; Nominal flange pressure PN16; Actuator PAS2005-H

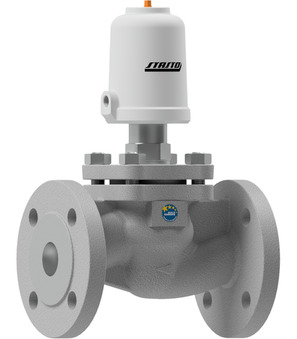

pneumatically operated seat valve series SE23-IT; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; body Stainless steel 1.4308; seal PTFE; flange PN16; for gaseous media and liquids; closing against flow; medium temperature -30...+170°C; DN 150mm; operating pressure 0...6,3bar; control pressure 2...6bar; diameter actuator 250 cm² stainless steel

pneumatically operated seat valve series SE23-IT; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NO; body Stainless steel 1.4308; seal PTFE; flange PN16; for gaseous media and liquids; closing against flow; medium temperature -30...+170°C; DN 125mm; operating pressure 0...9,2bar; control pressure 2...6bar; diameter actuator 250 cm² stainless steel

Body for A1N2H5-5N-50-B

Body for A1N2H5-5N-65-B

body for A1N2H5-5N-80-B

Body for A1N2H5-5N-100-B

body for A1N2H5-5N-125-B

body for A1N2H5-5N-150-B

ring-butterfly damper; bare shaft; double flange type DN400; PN6; body, disc: CORTEN-A; shaft AISI 316; temperature range max. +450°C; operating pressure max. 0,5bar; leakage rate III (ANSI/FCI 70-2); mounting flange ISO F05/F07; square 14mm; length 140mm; torque 48Nm

ring-butterfly damper; bare shaft; double flange type DN500; PN6; body, disc: CORTEN-A; shaft AISI 316; temperature range max. +450°C; operating pressure max. 0,5bar; leakage rate III (ANSI/FCI 70-2); mounting flange ISO F07/F10; square 17mm; length 190mm; torque 92Nm

ring-butterfly damper with electric actuator; double flange type DN500; PN6; body, disc: CORTEN-A; shaft AISI 316; temperature range max. +450°C; operating pressure max. 0,5bar; leakage rate III (ANSI/FCI 70-2); actuator VB110-L; operating time 27s; voltage 24VAC/DC

Ring-butterfly damper with electric actuator; Double flange type DN400; PN6; Body, Disc: CORTEN-A; Shaft 1.4401; Temperature range Max. +450°C; Operating pressure Max. 0,5bar; Leakage rate III (ANSI/FCI 70-2); Actuator VB60-L; Operating time 9s; Voltage 24VAC/DC

Knife gate valve with handwheel gearbox; series AD; wafer type; body ductile iron EN-GJS-500-7; gate AISI 304; metal sealing; packing PTFE-synthetic; nominal flange pressure PN6; unidirectional sealed; medium temperature -5...+90 °C; DN 600mm; length 110mm; pressure range 0-4bar; deflector ring CF8M; Adapter for motor 35x6mm; 188Nm; F14

Seal kit for CSE01-12-15-AT

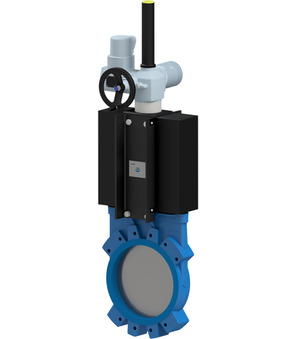

Knife gate valve with electric actuator; Wafer type; Rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR Scraper Copper; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+30°C; DN 400mm; Length 100mm; Pressure range 0…2bar; Actuator AUMA SA10.2 + AC01.2 + Modbus TCP/IP

BUW6-080-DSV-S22-A
butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+130°C; pressure range 0...10bar; DN 80mm; length 46mm; actuator PAS1155, ATEX
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
EPC23050-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 230V/50-60Hz
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

butterfly valve with electrical actuator series BUW2-DSV-002-3C; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator VB270-L; operating time 50s; voltage 24VAC/DC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
