Valves, butterfly valves and gate valves - automatically operated

STASTO Allgemeine Preisliste (EUR)
DN Length Pressure range Type Sequence
125 mm 50 mm 0...10 bar A1N2H3-5V-125 32470001
600 mm 110 mm 0...3 bar A1N2H3-5V-600 32470002

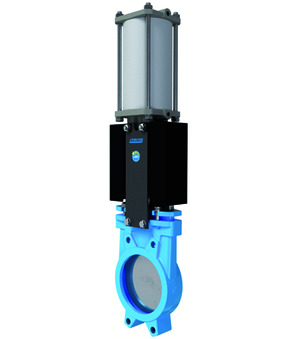

Knife gate valve with double acting actuator Series A1N2H3-5V-B

Knife gate valve with double acting actuator Series A1N2H3-5V-B

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C
To Series: Knife gate valve with double acting actuator Series A1N2H3-5V-B
Grundversion
DN Length Pressure range Type Sequence
50 mm 40 mm 0...10 bar A1N2H3-5V-50-B 32480000
65 mm 40 mm 0...10 bar A1N2H3-5V-65-B 32480001

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB

NC; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A
To Series: Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB
Grundversion
DN Length Pressure range Voltage Design Cable length Function Switch design Connection Flow rate Actuation Type Sequence
150 mm 60 mm 0...10 bar - - - - - - - - A1S2H2-5-150-PMB 32480001
Varianten
DN Length Pressure range Voltage Design Cable length Function Switch design Connection Flow rate Actuation Type Sequence
150 mm 60 mm 0...10 bar 230V/50-60Hz Standard - NC/NO contact Mechanical limit switch (2 Pieces) - - - A1S2H2-5-150-PMB-ABS44-CS23050-6-14123-0000-S-MSU01A/2 32480002
A1N2H3-5V-80-B
Knife gate valve with double acting actuator Series A1N2H3-5V-B; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C; DN 80mm; Length 50mm; Pressure range 0…10bar
To Series: Knife gate valve with double acting actuator Series A1N2H3-5V-B
DN Length Pressure range Type
80 mm 50 mm 0...10 bar A1N2H3-5V-80-B
A1S2H2-5-150-PMB-ABS97-C001-22-C002-31-6-MSU01A
A1S2H2-5-150-PMB
Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB; NC; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 150mm; Length 60mm; Pressure range 0…10bar
ABS97
Mounted pilot valve; Suitable for Pneumatically operated gate valves; Single acting; 3/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil C001; Connector size 22mm; 3/2-way solenoid valve (E32W1S612); DN gate valve 50-400mm
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
MSU01A
Elektrische Stellungsanzeige Serie MSU; passend für Plattenschieber; aufgebauter mechanischer Endschalter (1 Stück)
To Series: Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB
DN Length Pressure range Voltage Design Cable length Function Switch design Connection Flow rate Actuation Type
150 mm 60 mm 0...10 bar 230V/50-60Hz Standard - NC/NO contact Mechanical limit switch (1 Pieces) - - - A1S2H2-5-150-PMB-ABS97-C001-22-C002-31-6-MSU01A
A1N2H3-5V-100-B
Knife gate valve with double acting actuator Series A1N2H3-5V-B; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C; DN 100mm; Length 50mm; Pressure range 0…10bar
To Series: Knife gate valve with double acting actuator Series A1N2H3-5V-B
DN Length Pressure range Type
100 mm 50 mm 0...10 bar A1N2H3-5V-100-B
A1S2H2-5-200-PMB
Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB; NC; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 200mm; Length 60mm; Pressure range 0…10bar
To Series: Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB
DN Length Pressure range Voltage Design Cable length Function Switch design Connection Flow rate Actuation Type
200 mm 60 mm 0...10 bar - - - - - - - - A1S2H2-5-200-PMB
A1N2H3-5V-150-B
Knife gate valve with double acting actuator Series A1N2H3-5V-B; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C; DN 150mm; Length 60mm; Pressure range 0…8bar
To Series: Knife gate valve with double acting actuator Series A1N2H3-5V-B
DN Length Pressure range Type
150 mm 60 mm 0...8 bar A1N2H3-5V-150-B
A1S2H2-5-200-PMB-ABS44-CS23050-6-14123-0000-S-MSU01A/2
A1S2H2-5-200-PMB
knife gate valves with single acting pneumatic actuator series A1S2H2-5-PMB; NC; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 mechanical switches MSU01A; DN 200mm; length 60mm; pressure range 0…10bar
ABS44
mounted pilot valve; suitable for pneumatically operated gate valves; single acting; 3/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 3/2-way solenoid valve (K32W1S614); DN gate valve 50-400mm
CS23050
coil type CS; connector size 16mm; voltage 230V/50-60Hz
6-14123-0000-S
connector; connector size 16mm; Standard; voltage 0-250VAC/DC
MSU01A/2
electrical position indication series MSU; Suitable for knife gate valves; Built-on mechanical limit switch (2 pieces)
To Series: Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB
DN Length Pressure range Voltage Design Cable length Function Switch design Connection Flow rate Actuation Type
200 mm 60 mm 0...10 bar 230V/50-60Hz Standard - NC/NO contact Mechanical limit switch (2 Pieces) - - - A1S2H2-5-200-PMB-ABS44-CS23050-6-14123-0000-S-MSU01A/2
A1N2H3-5V-200-B
Knife gate valve with double acting actuator Series A1N2H3-5V-B; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C; DN 200mm; Length 60mm; Pressure range 0…8bar
To Series: Knife gate valve with double acting actuator Series A1N2H3-5V-B
DN Length Pressure range Type
200 mm 60 mm 0...8 bar A1N2H3-5V-200-B
A1S2H2-5-200-PMB-ABS97-C001-22-C002-31-6-MSU01A
A1S2H2-5-200-PMB
Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB; NC; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A; DN 200mm; Length 60mm; Pressure range 0…10bar
ABS97
Mounted pilot valve; Suitable for Pneumatically operated gate valves; Single acting; 3/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil C001; Connector size 22mm; 3/2-way solenoid valve (E32W1S612); DN gate valve 50-400mm
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
MSU01A
Electrical position indication Series MSU; Suitable for knife gate valves; Built-on mechanical limit switch (1 Pieces)
To Series: Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB
DN Length Pressure range Voltage Design Cable length Function Switch design Connection Flow rate Actuation Type
200 mm 60 mm 0...10 bar 230V/50-60Hz Standard - NC/NO contact Mechanical limit switch (1 Pieces) - - - A1S2H2-5-200-PMB-ABS97-C001-22-C002-31-6-MSU01A
Knife gate valve with double acting actuator Series A1N2H3-5V-B

Knife gate valve with double acting actuator Series A1N2H3-5V-B

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C
To Series: Knife gate valve with double acting actuator Series A1N2H3-5V-B
Grundversion
DN Length Pressure range Type Sequence
250 mm 70 mm 0...8 bar A1N2H3-5V-250-B 32480006
300 mm 70 mm 0...6 bar A1N2H3-5V-300-B 32480007
Knife gate valve with double acting actuator Series A1N2H3-5V-PIB

Knife gate valve with double acting actuator Series A1N2H3-5V-PIB

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C; Prepared for 2 inductive limit switches M18
To Series: Knife gate valve with double acting actuator Series A1N2H3-5V-PIB
Grundversion
DN Length Pressure range Type Sequence
150 mm 60 mm 0...10 bar A1N2H3-5V-150-PIB 32490000
250 mm 70 mm 0...8 bar A1N2H3-5V-250-PIB 32490001
300 mm 70 mm 0...6 bar A1N2H3-5V-300-PIB 32490002
400 mm 100 mm 0...6 bar A1N2H3-5V-400-PIB 32490003
