Valves, butterfly valves and gate valves - automatically operated

STASTO Allgemeine Preisliste (EUR)
A1N2H2-5-80-PIB-ABS40-CS02400-C001-31-LVCV30-2
A1N2H2-5-80-PIB
Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 80mm; Length 50mm; Pressure range 0...10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
C001-31-LVCV30-2
Connector; Connector size 16mm; mit eingebauter LED, VDR und PVC-Kabel (3 m); Voltage 24VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N-PIB
DN Length Pressure range Cable length Function Switch design Voltage Design Connection Flow rate Actuation Type
80 mm 50 mm 0...10 bar - - - 24VDC With integrated LED, VDR and PVC-cable (3 m) - - - A1N2H2-5-80-PIB-ABS40-CS02400-C001-31-LVCV30-2
A1EM2H2-5-400-B

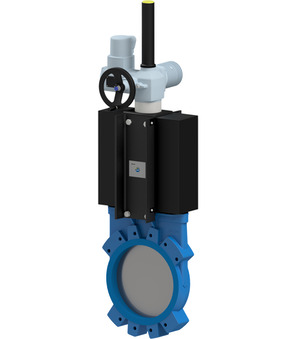

Knife gate valve with electric actuator Series A1EM2H2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 400mm; Length 100mm; Pressure range 0…6bar; Actuator AUMA SA10.2
To Series: Knife gate valve with electric actuator Series A1EM2H2-5-B
DN Length Pressure range Type
400 mm 100 mm 0...5 bar A1EM2H2-5-400-B
A1N2H2-5-80-PIB-ABS40-CS02400-6-14423-0525
A1N2H2-5-80-PIB
Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 80mm; Length 50mm; Pressure range 0...10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14423-0525
Connector; Connector size 16mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N-PIB
DN Length Pressure range Cable length Function Switch design Voltage Design Connection Flow rate Actuation Type
80 mm 50 mm 0...10 bar - - - 24VDC With integrated LED-yellow and VDR - - - A1N2H2-5-80-PIB-ABS40-CS02400-6-14423-0525
A1EM2H2-5-450-B
Knife gate valve with electric actuator Series A1EM2H2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 450mm; Length 106mm; Pressure range 0…4bar; Actuator AUMA SA10.2
To Series: Knife gate valve with electric actuator Series A1EM2H2-5-B
DN Length Pressure range Type
450 mm 106 mm 0...4 bar A1EM2H2-5-450-B
A1N2H2-5-80-PIB-ABS40-CS23050-6-14123-0000-S
A1N2H2-5-80-PIB
Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 80mm; Length 50mm; Pressure range 0...10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS23050
Coil Type CS; Connector size 16mm; Voltage 230V/50-60Hz
6-14123-0000-S
Connector; Connector size 16mm; Standard; Voltage 0-250VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N-PIB
DN Length Pressure range Cable length Function Switch design Voltage Design Connection Flow rate Actuation Type
80 mm 50 mm 0...10 bar - - - 230V/50-60Hz Standard - - - A1N2H2-5-80-PIB-ABS40-CS23050-6-14123-0000-S
A1EM2H2-5-500-B
Knife gate valve with electric actuator Series A1EM2H2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 500mm; Length 110mm; Pressure range 0…3,5bar; Actuator AUMA SA10.2
To Series: Knife gate valve with electric actuator Series A1EM2H2-5-B
DN Length Pressure range Type
500 mm 110 mm 0...3,5 bar A1EM2H2-5-500-B
Knife gate valve with double acting actuator Series A1N-PIB

Knife gate valve with double acting actuator Series A1N-PIB

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05

To Series: Knife gate valve with double acting actuator Series A1N-PIB
Grundversion
DN Length Pressure range Cable length Function Switch design Voltage Design Connection Flow rate Actuation Type Sequence
100 mm 50 mm 0...10 bar - - - - - - - - A1N2H2-5-100-PIB 31410018
125 mm 50 mm 0...10 bar - - - - - - - - A1N2H2-5-125-PIB 31410026
Varianten
DN Length Pressure range Cable length Function Switch design Voltage Design Connection Flow rate Actuation Type Sequence
80 mm 50 mm 0...10 bar - - - 230V/50-60Hz With integrated LED-yellow and VDR - - - A1N2H2-5-80-PIB-ABS40-CS23050-6-14423-0528 31410017
100 mm 50 mm 0...10 bar - - - 24VDC Standard - - - A1N2H2-5-100-PIB-ABS40-CS02400-6-14123-0000-S 31410019
100 mm 50 mm 0...10 bar - - - 24VDC With integrated LED, VDR and PVC-cable (3 m) - - - A1N2H2-5-100-PIB-ABS40-CS02400-C001-31-LVCV30-2 31410020
100 mm 50 mm 0...10 bar - - - 24VDC With integrated LED-yellow and VDR - - - A1N2H2-5-100-PIB-ABS40-CS02400-6-14423-0525 31410021
100 mm 50 mm 0...10 bar - - - 230V/50-60Hz Standard - - - A1N2H2-5-100-PIB-ABS40-CS23050-6-14123-0000-S 31410022
100 mm 50 mm 0...10 bar - - - 230V/50-60Hz With integrated LED-yellow and VDR - - - A1N2H2-5-100-PIB-ABS40-CS23050-6-14423-0528 31410023
100 mm 50 mm 0...10 bar - - - 24VDC / 48V/50-60Hz Standard - - - A1N2H2-5-100-PIB-ABS42-C001-03-C002-31-6 31410024
100 mm 50 mm 0...10 bar 2m NO PNP Inductive proximity switch (1 Pieces) 24VDC Standard - - - A1N2H2-5-100-PIB-ABS40-CS02400-6-14123-0000-S-MSU03 31410025
125 mm 50 mm 0...10 bar - - - 24VDC Standard - - - A1N2H2-5-125-PIB-ABS40-CS02400-6-14123-0000-S 31410027
125 mm 50 mm 0...10 bar - - - 24VDC With integrated LED, VDR and PVC-cable (3 m) - - - A1N2H2-5-125-PIB-ABS40-CS02400-C001-31-LVCV30-2 31410028
125 mm 50 mm 0...10 bar - - - 24VDC With integrated LED-yellow and VDR - - - A1N2H2-5-125-PIB-ABS40-CS02400-6-14423-0525 31410029
125 mm 50 mm 0...10 bar - - - 230V/50-60Hz Standard - - - A1N2H2-5-125-PIB-ABS40-CS23050-6-14123-0000-S 31410030
