Valves, butterfly valves and gate valves - automatically operated

STASTO Allgemeine Preisliste (EUR)
BUW6-150-DSE-0K2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Operating time 27s; Voltage 24VAC/DC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
150 mm 56 mm 24VAC/DC 27 s BUW6-150-DSE-0K2
A1N2I2-5-65-ABS40-CS23050-6-14423-0528
A1N2I2-5-65
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS23050
Coil Type CS; Connector size 16mm; Voltage 230V/50-60Hz
6-14423-0528
Connector; Connector size 16mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
65 mm 40 mm 0...10 bar -5...+90 °C 230V/50-60Hz With integrated LED-yellow and VDR - - - - A1N2I2-5-65-ABS40-CS23050-6-14423-0528
BUW6-150-DSE-0G2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 150mm; Length 56mm; Operating time 27s; Voltage 100-240VAC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
150 mm 56 mm 100-240VAC 27 s BUW6-150-DSE-0G2
A1N2I2-5-80
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 80mm; Length 50mm; Pressure range 0…10bar
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
80 mm 50 mm 0...10 bar -5...+90 °C - - - - - - A1N2I2-5-80

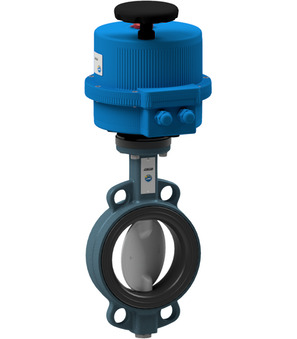

Butterfly valve with electrical actuator Series BUW6-DSE-02

Butterfly valve with electrical actuator Series BUW6-DSE-02

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar

Absperrklappe mit Elektroantrieb Serie BUW6-DSE-02
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
Grundversion
DN Length Voltage Operating time Type Sequence
200 mm 60 mm 24VAC/DC 50 s BUW6-200-DSE-0K2 31390014
200 mm 60 mm 100-240VAC 50 s BUW6-200-DSE-0G2 31390015

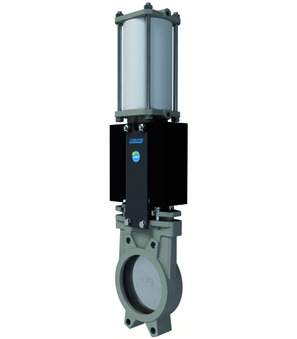

Knife gate valve with double acting actuator Series A1N

Knife gate valve with double acting actuator Series A1N

Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N
To Series: Knife gate valve with double acting actuator Series A1N
Grundversion
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type Sequence
100 mm 50 mm 0...10 bar -5...+90 °C - - - - - - A1N2I2-5-100 31390021
125 mm 50 mm 0...10 bar -5...+90 °C - - - - - - A1N2I2-5-125 31390028
Varianten
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type Sequence
80 mm 50 mm 0...10 bar -5...+90 °C 24VDC Standard - - - - A1N2I2-5-80-ABS40-CS02400-6-14123-0000-S 31390016
80 mm 50 mm 0...10 bar -5...+90 °C 24VDC With integrated LED, VDR and PVC-cable (3 m) - - - - A1N2I2-5-80-ABS40-CS02400-C001-31-LVCV30-2 31390017
80 mm 50 mm 0...10 bar -5...+90 °C 24VDC With integrated LED-yellow and VDR - - - - A1N2I2-5-80-ABS40-CS02400-6-14423-0525 31390018
80 mm 50 mm 0...10 bar -5...+90 °C 230V/50-60Hz Standard - - - - A1N2I2-5-80-ABS40-CS23050-6-14123-0000-S 31390019
80 mm 50 mm 0...10 bar -5...+90 °C 230V/50-60Hz With integrated LED-yellow and VDR - - - - A1N2I2-5-80-ABS40-CS23050-6-14423-0528 31390020
100 mm 50 mm 0...10 bar -5...+90 °C 24VDC Standard - - - - A1N2I2-5-100-ABS40-CS02400-6-14123-0000-S 31390023
100 mm 50 mm 0...10 bar -5...+90 °C 24VDC With integrated LED, VDR and PVC-cable (3 m) - - - - A1N2I2-5-100-ABS40-CS02400-C001-31-LVCV30-2 31390024
100 mm 50 mm 0...10 bar -5...+90 °C 24VDC With integrated LED-yellow and VDR - - - - A1N2I2-5-100-ABS40-CS02400-6-14423-0525 31390025
100 mm 50 mm 0...10 bar -5...+90 °C 230V/50-60Hz Standard - - - - A1N2I2-5-100-ABS40-CS23050-6-14123-0000-S 31390026
100 mm 50 mm 0...10 bar -5...+90 °C 230V/50-60Hz With integrated LED-yellow and VDR - - - - A1N2I2-5-100-ABS40-CS23050-6-14423-0528 31390027
125 mm 50 mm 0...10 bar -5...+90 °C 24VDC Standard - - - - A1N2I2-5-125-ABS40-CS02400-6-14123-0000-S 31390030
125 mm 50 mm 0...10 bar -5...+90 °C 24VDC With integrated LED, VDR and PVC-cable (3 m) - - - - A1N2I2-5-125-ABS40-CS02400-C001-31-LVCV30-2 31390031
