Valves, butterfly valves and gate valves - automatically operated

STASTO Allgemeine Preisliste (EUR)
A1N2I2-5-50-ABS40-CS02400-6-14123-0000-S
A1N2I2-5-50

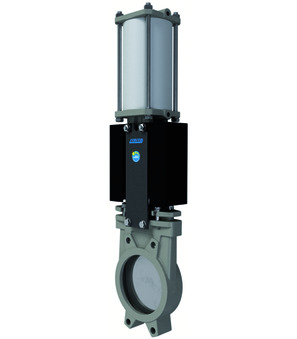

Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14123-0000-S
Connector; Connector size 16mm; Standard; Voltage 0-250VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
50 mm 40 mm 0...10 bar -5...+90 °C 24VDC Standard - - - - A1N2I2-5-50-ABS40-CS02400-6-14123-0000-S
BUW6-050-DSE-0K2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Operating time 9s; Voltage 24VAC/DC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
50 mm 43 mm 24VAC/DC 9 s BUW6-050-DSE-0K2
A1N2I2-5-50-ABS40-CS02400-C001-31-LVCV30-2
A1N2I2-5-50
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
C001-31-LVCV30-2
Connector; Connector size 16mm; mit eingebauter LED, VDR und PVC-Kabel (3 m); Voltage 24VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
50 mm 40 mm 0...10 bar -5...+90 °C 24VDC With integrated LED, VDR and PVC-cable (3 m) - - - - A1N2I2-5-50-ABS40-CS02400-C001-31-LVCV30-2
BUW6-050-DSE-0G2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Operating time 9s; Voltage 100-240VAC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
50 mm 43 mm 100-240VAC 9 s BUW6-050-DSE-0G2
A1N2I2-5-50-ABS40-CS02400-6-14423-0525
A1N2I2-5-50
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14423-0525
Connector; Connector size 16mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
50 mm 40 mm 0...10 bar -5...+90 °C 24VDC With integrated LED-yellow and VDR - - - - A1N2I2-5-50-ABS40-CS02400-6-14423-0525
BUW6-065-DSE-0K2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Operating time 9s; Voltage 24VAC/DC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
65 mm 46 mm 24VAC/DC 9 s BUW6-065-DSE-0K2
A1N2I2-5-50-ABS40-CS23050-6-14123-0000-S
A1N2I2-5-50
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS23050
Coil Type CS; Connector size 16mm; Voltage 230V/50-60Hz
6-14123-0000-S
Connector; Connector size 16mm; Standard; Voltage 0-250VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
50 mm 40 mm 0...10 bar -5...+90 °C 230V/50-60Hz Standard - - - - A1N2I2-5-50-ABS40-CS23050-6-14123-0000-S
BUW6-065-DSE-0G2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 65mm; Length 46mm; Operating time 9s; Voltage 100-240VAC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
65 mm 46 mm 100-240VAC 9 s BUW6-065-DSE-0G2
A1N2I2-5-50-ABS40-CS23050-6-14423-0528
A1N2I2-5-50
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS23050
Coil Type CS; Connector size 16mm; Voltage 230V/50-60Hz
6-14423-0528
Connector; Connector size 16mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
50 mm 40 mm 0...10 bar -5...+90 °C 230V/50-60Hz With integrated LED-yellow and VDR - - - - A1N2I2-5-50-ABS40-CS23050-6-14423-0528
BUW6-080-DSE-0K2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Operating time 9s; Voltage 24VAC/DC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
80 mm 46 mm 24VAC/DC 9 s BUW6-080-DSE-0K2
A1N2I2-5-65
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0…10bar
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
65 mm 40 mm 0...10 bar -5...+90 °C - - - - - - A1N2I2-5-65
Butterfly valve with electrical actuator Series BUW6-DSE-02

Butterfly valve with electrical actuator Series BUW6-DSE-02

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar

Absperrklappe mit Elektroantrieb Serie BUW6-DSE-02
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
Grundversion
DN Length Voltage Operating time Type Sequence
80 mm 46 mm 100-240VAC 9 s BUW6-080-DSE-0G2 31390007
100 mm 52 mm 24VAC/DC 27 s BUW6-100-DSE-0K2 31390008
A1N2I2-5-65-ABS40-CS02400-6-14123-0000-S
A1N2I2-5-65
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14123-0000-S
Connector; Connector size 16mm; Standard; Voltage 0-250VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
65 mm 40 mm 0...10 bar -5...+90 °C 24VDC Standard - - - - A1N2I2-5-65-ABS40-CS02400-6-14123-0000-S
BUW6-100-DSE-0G2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Operating time 27s; Voltage 100-240VAC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
100 mm 52 mm 100-240VAC 27 s BUW6-100-DSE-0G2
A1N2I2-5-65-ABS40-CS02400-C001-31-LVCV30-2
A1N2I2-5-65
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
C001-31-LVCV30-2
Connector; Connector size 16mm; mit eingebauter LED, VDR und PVC-Kabel (3 m); Voltage 24VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
65 mm 40 mm 0...10 bar -5...+90 °C 24VDC With integrated LED, VDR and PVC-cable (3 m) - - - - A1N2I2-5-65-ABS40-CS02400-C001-31-LVCV30-2
BUW6-125-DSE-0K2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Operating time 27s; Voltage 24VAC/DC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
125 mm 56 mm 24VAC/DC 27 s BUW6-125-DSE-0K2
A1N2I2-5-65-ABS40-CS02400-6-14423-0525
A1N2I2-5-65
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14423-0525
Connector; Connector size 16mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
65 mm 40 mm 0...10 bar -5...+90 °C 24VDC With integrated LED-yellow and VDR - - - - A1N2I2-5-65-ABS40-CS02400-6-14423-0525
BUW6-125-DSE-0G2
Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 125mm; Length 56mm; Operating time 27s; Voltage 100-240VAC
To Series: Butterfly valve with electrical actuator Series BUW6-DSE-02
DN Length Voltage Operating time Type
125 mm 56 mm 100-240VAC 27 s BUW6-125-DSE-0G2
A1N2I2-5-65-ABS40-CS23050-6-14123-0000-S
A1N2I2-5-65
Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0…10bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS23050
Coil Type CS; Connector size 16mm; Voltage 230V/50-60Hz
6-14123-0000-S
Connector; Connector size 16mm; Standard; Voltage 0-250VAC/DC
To Series: Knife gate valve with double acting actuator Series A1N
DN Length Pressure range Medium temperature Voltage Design Connection Function Flow rate Actuation Type
65 mm 40 mm 0...10 bar -5...+90 °C 230V/50-60Hz Standard - - - - A1N2I2-5-65-ABS40-CS23050-6-14123-0000-S
