Special armatures

2/2-way coaxial valve; DN40; PN100; 0…100bar; 220VDC; NC; directly operated; body: stainless steel; medium: water; incl. connection box; incl. 1 inductive limit switch (B) for closed-position; special version

CVT-15-NC-515

2/2-way coaxial valve; Directly operated; G1/2"; 0...40bar; 220VDC; DN15; NC; Body: Stainless steel; Medium: Hydrogen; Back pressure tight; Terminal box; Manual emergency override; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); Special seals; Vacuum leak test with certificate; Inspection certificate 3.1; Material certificate; ATEX CE Ex II 3G Ex ec IIC T3 Ta -20…+80°C Gc / II 3D Ex tc IIIC T195°C Ta -20…+80°C Dc And Ex II 3G Ex h IIC T3 Gc / II 3D Ex h IIIC T195°C Dc; Special version

CVT3-15-NC-145

3/2-way-coaxial valve; Directly operated; G3/4"; 0...16bar; 24VDC; DN15; NC; Directly operated; Body: Brass; Medium: Air/Vacuum; Special version

CVT3-25-NC-028

3/2-way-coaxial valve; Directly operated; G1"; 0...40bar; 230VAC; DN25; NC; Body: Brass; Medium: Oxygen; Incl. LED; Special seals; Free of oil and grease for oxygen; Special version

SG12-80-WWFEC6-01

sliding gate valve with electrical actuator; electrically operated; type SG12; nominal diameter DN80; nominal pressure PN10/40; wafer type; body: AISI 316Ti; fixed disc AISI 316Ti coated; sliding disc SFC; kvs-value 92 (100%); characteristic linear; 100-240VAC; 3-point control 24VDC

SK-CVTEH-10-NC-008

seal kit for CVTEH-10-NC-008

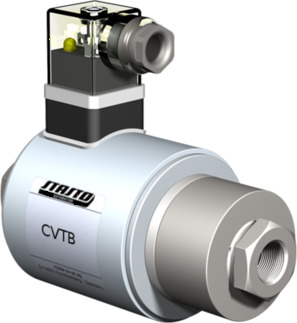

CVTB-5-NC-011

2/2-way high pressure valve; directly operated; 3/8"NPT; 0...16bar; 230VAC; DN5; NC; body: AISI 430F/steel nickel plated; medium: additives; terminal box with integrated rectifier; connector with cable harness 5m; back pressure tight; Special material for low temperatures; special seals; incl. inspection certificate 3.1; ATEX Ex II 2G Ex h IIC T4 Gb / Ex II 2D Ex h IIIC T130°C Db; special version

VR-CVPSP23-15-001

valve rod for CVPSP23-15-001

CVFV-40-NC-006

2/2-way coaxial valve; externally controlled; ANSI-RF 300 lb; 0...40bar; DN40; NC; body: zinc plated steel; medium: nitrogen +150°C; incl. 2 inductive limit switches OPEN/CLOSED (I.); special seals; incl. certificate for vacuum; CE-mark; special version

CVT-15-NC-516

2/2-way coaxial valve; directly operated; G1/2"; 0...16bar; 230VAC; DN15; NC; body: brass; Media: propane/butane/nitrogen; special seals; incl. 2 inductive NAMUR limit switches OPEN/CLOSED; Flow through on both sides; ATEX II 2 G Eex me II T4 and II 2 D IP 65 T 130°C; test report 3.1; special version

CVTE-40-NC-003

2/2-way coaxial valve; externally controlled; G11/2"; 0...63bar; DN40; NC; body: steel nickel plated; medium: water; special version

CVFV-P-50-NC-012

2/2-way coaxial valve; externally controlled; flange DN50 PN40; 0...40bar; 24VDC; NC; body: zinc plated steel; medium: lubricating oil; incl. 5/2-way pilot valve ISO1; incl. LED; special version

SG06-25-UWC-80-03

control valve type SG06; DN25; PN10/40; NC; material: carbon steel; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 5 (100%); characteristic equal percentage; actuator diameter 80mm; digital positioner ExPro, II 2G Ex ia IIC T4 Gb, IP 65; earthing connection

CVTS-3-NC-005

Coax-2/2-way-lateral valve; directly operated; G3/8"; 0...40bar; 24VDC; DN3; NC; body: brass; medium: LPG; incl. special seals; incl. connection box; ATEX II 3G Ex nA IIC T3 Ta -20...+80°C Gc / II 3D Ex tc IIIC T195°C Ta -20...+80°C Dc IP65 and II 3 GD c T4; 5,2 l/min.; special version
