Pressure switches, measuring instruments and flow monitors

STASTO Allgemeine Preisliste (EUR)
PS44-18N-0,5/8-01
pressure switch; change-over contact; diaphragm NBR; material: zinc plated steel; male thread G 1/8"; overpressure protection 60bar; temperature range -20°C…80°C; 48VAC/2A; 24VDC/2A; connection connector M12X1
FM13-12-N-4-02
flow monitors series FM13-N; viscosity compensated 32...600mm²/s; body nickel plated brass; float brass; for any mounting position; medium temperature max. 120°C; oil scale; change-over contact; connection G1/2"; switching range 1...4l/min; maximum pressure 10bar; U max. 250V; I max. 3A; length 114mm
FM53-38-ECTFE-1000-01
Impeller-Flow meter; Male thread; Body material ECTFE; Temperature range 0...+80°C; Connection G3/8"; Pressure Max. 10bar; Measuring range 80...1000l/h Water 22°C; Outlet signal Rectangular pulses
PS44-14N-1/16-02
Pressure switch; Change-over contact; Diaphragm NBR; Material: Zinc plated steel; Male thread G1/4"; Overpressure protection 60bar; Temperature range -20°C…80°C; 48VAC/2A; 24VDC/2A; oil- and grease-free for oxygen; Connection 3x6,3x0,8
FM24-10-N-4-04
Flow monitors Series FM24; Viscosity compensated ...600mm²/s; Body Nickel plated brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; Connection 1"; Indicating range 1...4L/min; Maximum pressure 250bar; Length 130mm; Without switching unit
FM24-10-N-8-02
Flow monitors Series FM24; Viscosity compensated ...600mm²/s; Body Nickel plated brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; Connection 1"; Indicating range 2...8L/min; Maximum pressure 250bar; Length 130mm; Without switching unit
FM36-34-N-40
Flow monitors; Viscosity compensated ...600mm²/s; Body Nickel plated brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; NO contact; Application: Monitoring of lubrication; Connection G3/4"; Switching range 4...40L/min; Maximum pressure 250bar; U max. 250V; Max. current 3A; Length 152mm
FM03-34-W-45
Flow monitors Series FM03-W; Viscosity compensated 32...600mm²/s; Body Stainless steel; For any mounting position; Medium temperature Max. 120°C; Oil scale; NO contact; Application: Monitoring of lubrication; Connection 3/4"; Switching range 15…45L/min; Maximum pressure 250bar; U max. 250V; I max. 3A; Length 130mm
FM03-12-N-3-02
Flow monitors; Viscosity compensated 32...600mm²/s; Body Nickel plated brass; For any mounting position; Medium temperature Max. 120°C; Oil scale; Change-over contact 30x70; Application: Monitoring of lubrication; Connection 1/2"; Switching range 0,8...3L/min; Maximum pressure 300bar; U max. 250V; I max. 1,5A; Length 90mm

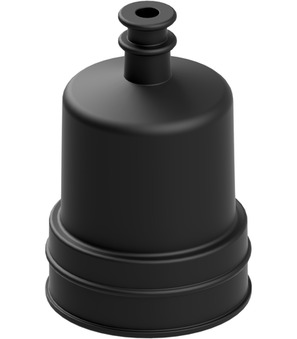

6365
Accessories; Suitable for Series 901; Schutzkappe aus Gummi für Schutzart IP44

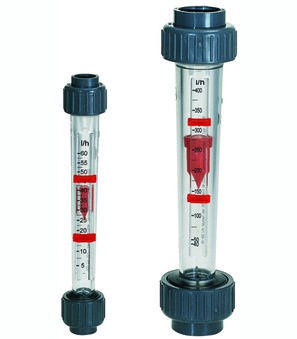

FM59-10-M-1000
Flow meter; Measuring tube PSU; Float PVDF; Female thread Malleable cast iron zinc plated; Temperature range -10...+60°C; Pressure Max. 10bar; Mounting position Vertical pipe; Application: Water; Connection 1"; Range 100...1000l/h
PS01-65V-5/20-01
Pressure switch Change-over contact; Diaphragm FKM; Setting scale; 250VAC/6A; PPS connection 6.5mm; Application: Air, Water, Neutral oils; Protection class See Protection cap (Max. IP65); Range of adjustment 5...20mbar; Overpressure protection 0,5bar; Hysteresis range 3mbar
FM02-10-N-300-01
Flow monitors Series FM02; Body Nickel plated brass; Float Brass; For any mounting position; Medium temperature Max. 120°C; Air scale; Switching range at 1 bar absolute; 20°C; Change-over contact; Connection 1"; Switching range 100...300Nl/min; Maximum pressure 250bar; U max. 250V; I max. 3A; Length 130mm
FM02-10-N-650-02
Flow monitors Series FM02; Body Nickel plated brass; Float Brass; For any mounting position; Medium temperature Max. 120°C; Air scale; Switching range at 1 bar absolute; 20°C; Change-over contact; Connection 1"; Switching range 200...650Nl/min; Maximum pressure 250bar; U max. 250V; I max. 3A; Length 130mm
