NSF-approved; Body Fibre-glass-reinforced polyamide Grivory GV-5 FWA; Seals EPDM-FDA; Maximum inlet pressure 15bar; Medium temperature +4…+60°C; Flow at Δp=0,8bar 10l/min
Pressure regulator fixed set Series PR64 -
Body Brass; Spring cover Polyamide; Seals NBR; Max. Inlet pressure 40bar; Operating pressure range 1...10bar; Medium temperature 0...70°CPressure regulator Series PR01
-
Body Brass; Fine screen Stainless steel; Spring cover, Screen cup Polyamide; Seals NBR/EPDM; Mesh size 0,5mm; Max. Inlet pressure 30bar; Operating pressure range 1,5...6bar; Medium temperature -10…+70°C
Pressure regulator Series PR02/PR10 -
Body Bronze; Fine screen Stainless steel; Seals EPDM; Maximum inlet pressure 25bar; Operating pressure range 0,5...2bar; Medium temperature -20...+120°C
Pressure regulator Series PR03...0.5/2 -
Without relieving; Body Bronze; Maximum inlet pressure 60bar
Pressure regulator Series PR40 -
Body Bronze; Fine screen Stainless steel; Seals EPDM; Maximum inlet pressure 40bar; Operating pressure range 5...15bar; Medium temperature -20…+95°C
Pressure regulator Series PR03…5/15 -
Body Bronze; Fine screen Stainless steel; Spring cover, Seals FKM; Max. Inlet pressure 40bar; Operating pressure range 1...8bar; Medium temperature -10…+120°C
Pressure regulator Series PR03-V -
Body Bronze; Flange PN16; Fine screen Stainless steel; Seals EPDM; Max. Inlet pressure 16bar; Medium temperature -20…+120°C
Flange pressure regulator Series PR04 -
Body Bronze; Flange PN16; Fine screen Stainless steel; Seals EPDM; Max. Inlet pressure 16bar; Operating pressure range 5...15bar; Medium temperature -20…+95°CFlange pressure regulator Series PR04...5/15
-
Body Ductile iron EN-GJS-400-15; Seals EPDM; Flange PN16; Max. Inlet pressure 16bar; Operating pressure range 0,5…2bar; Medium temperature -10…+60°C
Flange pressure regulator Series PR21 -
Body Bronze; Flange PN40; Fine screen Stainless steel; Seals EPDM; Maximum inlet pressure 40bar; Operating pressure range 1...8bar; Medium temperature -20…+120°C
Flange pressure regulator Series PR04-PN40 -
Body 1.4408; Seals FKM; Medium temperature -10…+120°C
Pressure regulator Series PR08 -
Body 1.4408; Seals FKM; Maximum inlet pressure 40bar; Operating pressure range 5...15bar; Medium temperature -10…+95°C
Pressure regulator Series PR08...5/15 -
Body 1.4301; 11/2"...2" 1.4571; Inner parts 1.4571; Medium temperature -20…+200°C

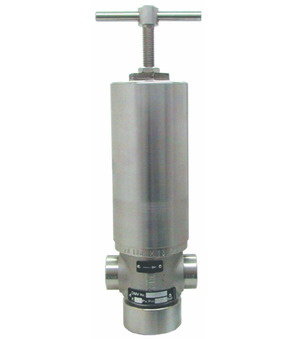

Pressure regulator Series PR09 -
Body 1.4408; Flange PN40; Fine screen Stainless steel; Seals FKM; Medium temperature -10…+120°CFlange pressure regulator Series PR12
-
Body 1.4408; Flange PN40; Fine screen Stainless steel; Seals FKM; Operating pressure range 5...15bar; Medium temperature -10…+95°CFlange pressure regulator Series PR12...5/15
Pressure regulator
| Female thread | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|
| G 1/2" | 0,35...73 bar | Max. 14-100 bar | auf Anfrage | PR09-12-X |
| DN | Mesh size | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|---|
| 25 mm | 0,6 mm | 1...8 bar | Max. 40 bar | 4166 | PR12-25H-1/8 |
| Female thread | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|
| G 3/4" | 0,35...53 bar | Max. 14-63 bar | auf Anfrage | PR09-34-X |
| DN | Mesh size | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|---|
| 32 mm | 0,6 mm | 0,5...2 bar | Max. 25 bar | 4163 | PR12-32H-0.5/2 |
| Female thread | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|
| G 1" | 0,25...23 bar | Max. 10-63 bar | auf Anfrage | PR09-10-X |
| DN | Mesh size | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|---|
| 32 mm | 0,6 mm | 1...8 bar | Max. 40 bar | 4166 | PR12-32H-1/8 |
| Female thread | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|
| G 1 1/4" | 0,25...23 bar | Max. 10-63 bar | auf Anfrage | PR09-114-X |
| DN | Mesh size | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|---|
| 40 mm | 0,75 mm | 0,5...2 bar | Max. 25 bar | 4163 | PR12-40H-0.5/2 |
| Female thread | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|
| G 1 1/2" | 0,25...17 bar | Max. 10-63 bar | auf Anfrage | PR09-112-X |
| DN | Mesh size | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|---|
| 40 mm | 0,75 mm | 1...8 bar | Max. 40 bar | 4166 | PR12-40H-1/8 |
| Female thread | Outlet pressure | Inlet pressure | Suitable manometer | Type |
|---|---|---|---|---|
| G 2" | 0,25...17 bar | Max. 10-40 bar | auf Anfrage | PR09-20-X |

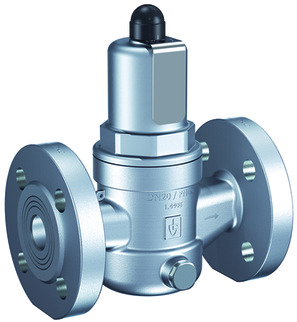

Flange pressure regulator Series PR12
| DN | Mesh size | Outlet pressure | Inlet pressure | Suitable manometer | Type | Sequence |
|---|---|---|---|---|---|---|
| 50 mm | 0,75 mm | 0,5...2 bar | Max. 25 bar | 4163 | PR12-50H-0.5/2 | 33600014 |
| 50 mm | 0,75 mm | 1...8 bar | Max. 40 bar | 4166 | PR12-50H-1/8 | 33600015 |
| 65 mm | 0,75 mm | 1...8 bar | Max. 40 bar | 4129 + 4126 | PR12-6540-1/8 | 33600016 |
| 80 mm | 0,75 mm | 1...8 bar | Max. 40 bar | 4129 + 4126 | PR12-80H-1/8 | 33600017 |
Flange pressure regulator Series PR12...5/15
| DN | Mesh size | Suitable manometer | Type | Sequence |
|---|---|---|---|---|
| 15 mm | 0,6 mm | 4167 | PR12-15H-5/15 | 33610000 |
| 20 mm | 0,6 mm | 4167 | PR12-20H-5/15 | 33610001 |
| 25 mm | 0,6 mm | 4167 | PR12-25H-5/15 | 33610002 |
| 32 mm | 0,6 mm | 4167 | PR12-32H-5/15 | 33610003 |
| 40 mm | 0,75 mm | 4167 | PR12-40H-5/15 | 33610004 |
