Ball valves - manually operated

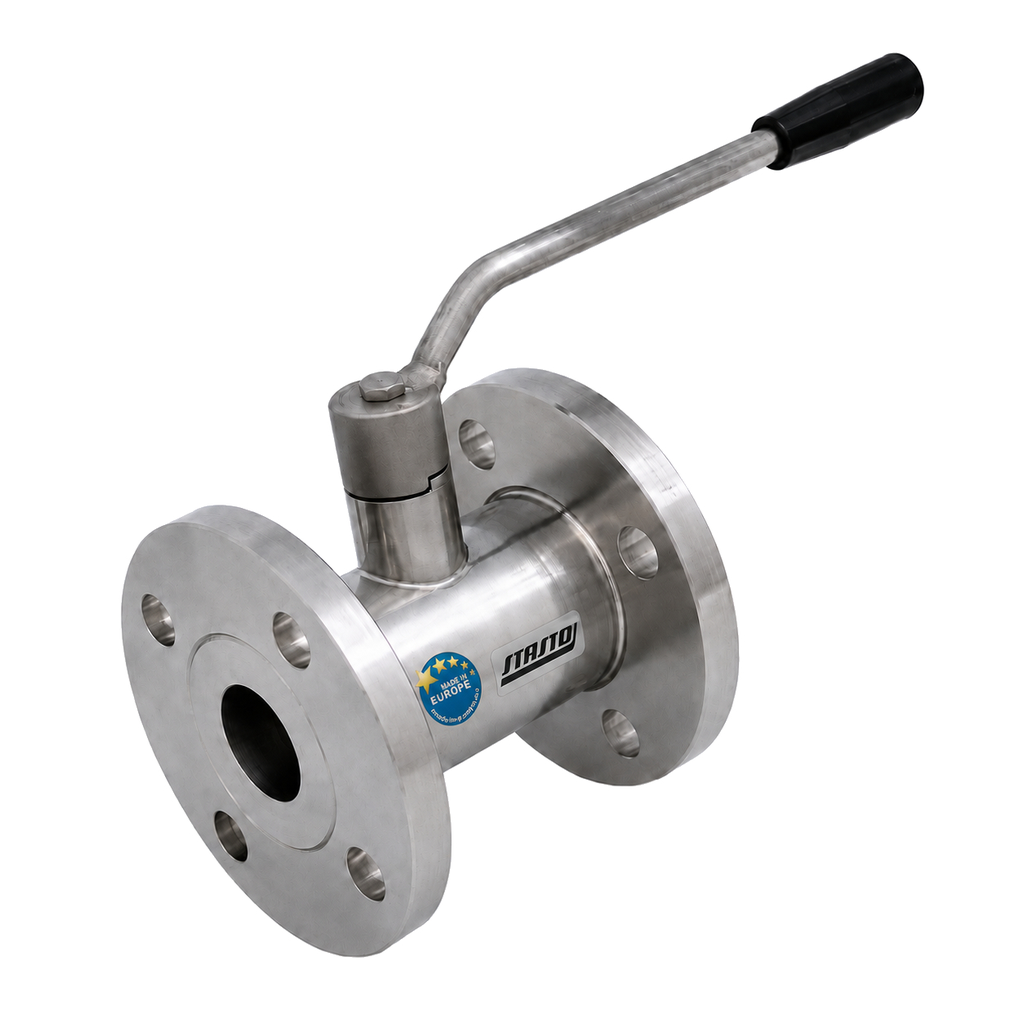

Flanged ball valve Series BA116-L-A; ATEX II 2 G/D; Flange PN63, Full bore; Body steel A350-LF2, Ball 1.4301; Seals Fibre-glass-reinforced PTFE/PTFE/Graphoil/FKM; Pressure range 0…63bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 85mm

BA945-RD95X16-B-3E

Ball valve made of stainless steel; Full bore; Body And Ball 1.4404; Seals MPTFE/FKM Without dead space; Medium temperature -20...+170°C; Connection 95x1/6"; DIN 11851 M/M; Nominal diameter 65mm; Pressure range 0…40bar; Length 172mm; Flange ISO5211 F07; Square 17mm; Heating jacket; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-certification

C3T-BA945-RD95X16-B

Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-certification

C3T-BA945-RD78X16-B

Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-certification

SK-BA162-25-L-AH

Seal kit for Ball valve BA162-25-L-AH

C3M-BA949-32-A

Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

C3M-BA949-25-A

Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

C3M-BA949-15-A

Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

BA949-32-L-A3C

Flanged ball valve; ATEX II 2 G/D T4; Body, Ball 1.4404 Polished; Seals PTFE-metal reinforced/Kalrez; Medium temperature -40...+200°C; Nominal diameter 32mm; Flange ANSI150 According to EN 1759-1; Pressure range 0...20bar; Length 130mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

BA949-25-L-A3C

Flanged ball valve; ATEX II 2 G/D T4; Body, Ball 1.4404 Polished; Seals PTFE-metal reinforced/Kalrez; Medium temperature -40...+200°C; Nominal diameter 25mm; Flange ANSI150 According to EN 1759-1; Pressure range 0...20bar; Length 125mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

BA949-15-L-A3C

Flanged ball valve; ATEX II 2 G/D T4; Body, Ball 1.4404 Polished; Seals PTFE-metal reinforced/Kalrez; Medium temperature -40...+200°C; Nominal diameter 15mm; Flange ANSI150 According to EN 1759-1; Pressure range 0...20bar; Length 115mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

BA668-14-L-3C

High pressure ball valve Series BA668; Female thread; Body, Ball 1.4408; Seals POM/FKM; With erosion protection ring; For gases; Medium temperature -20...+100°C; Incl. 3.1-Inspection document According to DIN EN 12266-1 P10/P11/P12; For pressure, function and tightness; Inspection certificate EN-10204-3.1; For body material; G 1/4"; Nominal diameter 6mm; Pressure range 0...500bar; Length 69mm

BA809-34-L

High pressure ball valve Series BA809; Female thread; Body Steel, Ball 1.4571; Seals POM/NBR; With erosion protection ring; For gases; Medium temperature -30...+100°C; G 3/4"; Nominal diameter 20mm; Pressure range 0...500bar; Length 95mm; With hand lever

BA809-12-L

High pressure ball valve Series BA809; Female thread; Body Steel, Ball 1.4571; Seals POM/NBR; With erosion protection ring; For gases; Medium temperature -30...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; With hand lever

BA102-15L-L-01

High pressure ball valve Series BA102; Male thread according to ISO 8434-1 (DIN 2353); Body, Ball 1.4571/1.4404; Seals POM/FKM; For liquids; Medium temperature -20...+100°C; Square 9mm; Connection 15L/M22X1,5; Nominal diameter 13mm; Pressure range 0…500bar; Length 82mm; Incl. mounting holes

BA126-25-L-3C

Flanged ball valve Series BA126-L-3C; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 25mm; Length 125mm; Length EN558-1R14
