Ball valves - manually operated

STASTO Allgemeine Preisliste (EUR)
C3M-BA587-32
Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

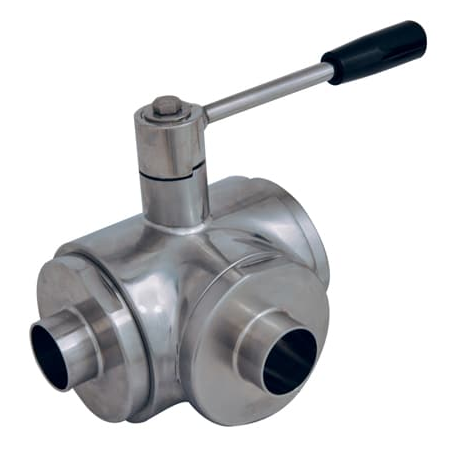

BA587-15-L-3C
Ball valve made of stainless steel Series BA587; 3-way-type; Sealing on four ports; Welding ends ISO 1127 21,3x1,65; Full bore; Body, Ball 1.4404; Seals MPTFE/FKM; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0-100bar; Length 118mm; Ball L; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA587-25-L-3C
Ball valve made of stainless steel Series BA587; 3-way-type; Sealing on four ports; Welding ends ISO 1127 33,7x2; Full bore; Body, Ball 1.4404; Seals MPTFE/FKM; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-64bar; Length 140mm; Ball L; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA587-32-L-3C
Ball valve made of stainless steel Series BA587; 3-way-type; Sealing on four ports; Welding ends ISO 1127 42,4x2; Full bore; Body, Ball 1.4404; Seals MPTFE/FKM; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0-64bar; Length 156mm; Ball L; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA168-112N-L
ball valve made of stainless steel ATEX II 2 G/D T4; full bore; two-parts type; female thread; body, ball AISI 316L; body polished; seals PTFE/FKM; medium temperature -20...+160°C; G 11/2"; nominal diameter 40mm; pressure range 0...64bar; length 104mm; free of oil and grease for hydrogen
BA089-200-LLD-A-01
Flanged ball valve Series BA089-LLD-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Full bore; Body Steel lacquered; Ball 1.4401; Seals Fibre-glass-reinforced PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 200mm; Pressure range 0-25bar; Flange ANSI 300; Length 502mm
BA001-10-L-2C
Ball valve made of brass; Full bore; Female thread; Seal PTFE; Medium temperature -20...+160°C; Hand lever Steel; Connection G 1"; Nominal diameter 25mm; Pressure range 0-50bar; Length 69,5mm; Incl. Certificate according to EN 10204-2.2
BA891-12-L-A-01
Ball valve made of stainless steel Series BA891-L-A-01; ATEX II 2 G/D; Fire-safe; TA-Luft; V-Ball 30-60°; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...140bar; Length 66mm
C3M-BA891-12-A-01
Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA891-12-L-A3C-01
Ball valve made of stainless steel Series BA891-L-A3C-01; ATEX II 2 G/D; Fire-safe; TA-Luft; V-Ball 30-60°; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...140bar; Length 66mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
C3T-BA272-25
Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-certification
SK-BA486-14N-B-AH
Seal kit PTFE/EPDM Special; Free of oil and grease for oxygen; For Ball valve BA486-14N-B-AH
BA920-10-L-3E
Ball valve made of stainless steel; Full bore; Three-parts type; Female thread G1"; Housing, ball 1.4404; Polished housing; Seals PTFE/FKM Without dead space; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Length 90mm
BA193-12-LLD-A3C
Ball valve made of stainless steel; Full bore; Three-parts type; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM Special; Medium temperature -45...+150°C; G 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 70mm; With locking device; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA305-25-LLD-A0H3C
Flanged ball valve; ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db; 3-way-type; Sealing on three ports; Full bore; Body, Ball 1.4404; Seals PTFE/EPDM-Special; Medium temperature -45...+150°C; Nominal diameter 25mm; Length 150mm; Pressure range 0...40bar; Flange PN40; Ball T; With locking device; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Oil and grease-free design for hydrogen and oxygen
BA489-40-LLD-A0H3C
Flanged ball valve Series BA489; ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C; Nominal diameter 40mm; DN ball 40mm; Pressure range 0...40bar; Flange PN40; Length 140mm; With locking device; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Oil and grease-free design for hydrogen and oxygen
BA489-40-LLD-A0H3C-EB0X99
BA489-40-LLD-A0H3C
Flanged ball valve Series BA489; ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C; Nominal diameter 40mm; DN ball 40mm; Pressure range 0...40bar; Flange PN40; Length 140mm; With locking device; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Oil and grease-free design for hydrogen and oxygen
EB0X99
Limit switch box; ATEX II 2G Ex ia IIC T6 Gb IP65; 2 Inductive proximity switches; 10-30VDC; Switch type IFM NS5003; Function NC contact; Material of case Plastic; With Visual indication
BA550-40-LLD-A0H3C
Flanged ball valve Series BA550; ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Medium temperature -45...+150°C; Nominal diameter 40mm; DN ball 40mm; Pressure range 0...40bar; Flange PN40; Length 140mm; With locking device; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Oil and grease-free design for hydrogen and oxygen
BA895-80-B-A0H3C
Flanged ball valve Series BA895; ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Medium temperature -45...+150°C; Nominal diameter 80mm; DN ball 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm; Flange ISO5211 F07; Square 17mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Oil and grease-free design for hydrogen and oxygen
BA895-80-GLD-A0H3C
Flanged ball valve with manual gearbox Series BA895; ATEX II 2G Ex h IIC T4 Gb / II 2D Ex h IIIC T135°C Db And II 2 GD Ex h IIC T3 Gb TA ≤120°C / II GD Ex h IIIC T200°C Db Ta ≤120°C; With locking device; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Medium temperature -45...+150°C; Nominal diameter 80mm; DN ball 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Oil and grease-free design for hydrogen and oxygen
