Ball valves - manually operated

STASTO Allgemeine Preisliste (EUR)
BA261-32-L-A3C
Flanged ball valve Series BA261-L-A3C; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0...40bar; Flange PN40; Length 65mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA125-20-B-AH
Ball valve made of stainless steel; Full bore; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM-Special; Medium temperature -45...+150°C; Connection G2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 92mm; Bare shaft F07/Square 17mm; Free of oil and grease for hydrogen; ATEX II 2 G/D T4
BA761-50-L
ball valve made of stainless steel; full bore; housing, ball AISI 316L; seals PTFE/FKM; medium temperature -20...+170°C; welding ends DIN11850 53x1,5; nominal diameter 50mm; pressure range 0…40bar; length 136mm; with hand lever
BA234-28L-L-03
high pressure ball valve; male thread according to ISO 8434-1 (DIN 2353); housing, ball AISI 316Ti/AISI 316L; seals POM/NBR; for hydraulic liquids; medium temperature -30...+100°C; connection 28L/M36x2; nominal diameter 25mm; pressure range 0...350bar; length 108mm; prepared for limit switch
BA435-50-LLD-A
Flanged ball valve Series BA435-LLD-A; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body Steel A352-LCB, Ball 1.4301; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Pressure range 0...20bar; Medium temperature -40...+180°C; With locking device; Nominal diameter 50mm; Length 178mm
BA435-50-LLD-A3C
Flanged ball valve Series BA435-LLD-A3C; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body Steel A352-LCB, Ball 1.4301; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Pressure range 0...20bar; Medium temperature -40...+180°C; With locking device; Nominal diameter 50mm; Length 178mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA384-50-LLD-A
Flanged ball valve Series BA384-LLD-A; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Steel A352-LCB, Ball 1.4301; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Medium temperature -40...+180°C; With locking device; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN40; Length 150mm
BA466-32-L-A
Ball valve made of stainless steel Series BA466-L-A; Full bore; Two-parts type; Butt weld ends; Body, Ball 1.4404; Seals PTFE-Reinforced with carbographite; Medium temperature -20...+160°C; Nominal diameter 32mm; Class 800; Pressure range 0-138bar; Length 160mm; Antistatic design; Fire-Safe; ATEX II 2 G/D c T3; Free of oil and grease
BA466-32-L-A3C
Ball valve made of stainless steel Series BA466-L-A3C; Full bore; Two-parts type; Butt weld ends; Body, Ball 1.4404; Seals PTFE-Reinforced with carbographite; Medium temperature -20...+160°C; Nominal diameter 32mm; Class 800; Pressure range 0-138bar; Length 160mm; Antistatic design; Fire-Safe; ATEX II 2 G/D c T3; Free of oil and grease; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA452-S080-B
Ball valve PVC; Full bore; Solvent cement socket 90mm; Seals PTFE/EPDM; Medium temperature 0...+60°C; Incl. Adapter For mounting an actuator;Nominal diameter 80mm; Pressure range 0...16bar
BA576-10-L-3C-02
Ball valve made of stainless steel; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1"; Nominal diameter 25mm; Pressure range 0...64bar; Length 102mm; Ball T; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-Approval
760802-50
Flanged ball valve; Fire-Safe/Antistatik According to ATEX/TA-Luft; Length According to EN558−1 R1; Body 1.0619; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Medium temperature -10...+160°C; Nominal diameter 50mm; Pressure range 0-40bar; Flange PN40; Length 230mm
BA075-50-LLD-A3C
Flanged ball valve; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R1; Full bore; Body 1.0619, Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; With locking device; Nominal diameter 50mm; Pressure range 0…40bar; Flange PN40; Length 230mm
BA222-TCC34-D0
Ball valve with pneumatic actuator; 3-way-type;Body, Ball 1.4404; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+170°C; Tri-Clamp connection 3/4"; Nominal diameter 15mm; Pressure range 0-100bar; Length 118mm; Actuator PAD052
EB0X79X
Limit switch box ; Aluminum; Black RAL9005; 2 Micro switches SPDT; Exd; IP66-67; Suitable for Actuators PAD/PAS052-270; Display Yellow/Red; MS48-120M06; CSA-Certified
BA009-34-L-02
Ball valve made of brass; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 3/4"; Nominal diameter 20mm; Pressure range 0-30bar; Length 87mm; Ball L; Incl. Mounted limit switch box EB0X68; Switching capacity4A/230VAC-1A/24VDC; Switch type Crouzet 83.161.301; Contact material Silver-nickel; Material of case Aluminum; With visual position indicator On/off - Yellow/Red; Flow path 05
BA220-TCC20-B

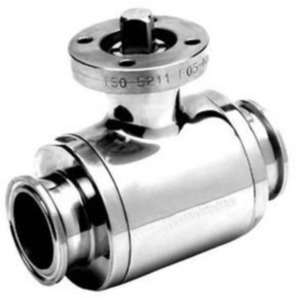

Ball valve made of stainless steel; Full bore; Body, Ball 1.4404; Seals PTFE/FKM; Medium temperature -20...+160°C; Tri-Clamp connection 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Flange ISO5211 F05; Square 14mm
BA482-25-L-A-01
Flanged ball valve Series BA482-L-A-01; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/HNBR; Medium temperature -40...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Flange PN40; Length 57mm; Free of oil and grease
BA482-25-L-AH
Flanged ball valve Series BA482-25-L-AH; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/HNBR; Medium temperature -40...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Flange PN40; Length 57mm; Free of oil and grease for hydrogen
BA482-25-L-AH3C
Flanged ball valve Series BA482-L-AH3C; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/HNBR; Medium temperature -40...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Flange PN40; Length 57mm; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
