Ball valves - manually operated

STASTO Allgemeine Preisliste (EUR)
BA846-80-B-01
Flanged ball valve Series BA846; Flange ANSI150, Full bore; Body, Ball 1.4404; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+170°C; Nominal diameter 80mm; Length 118mm; Head flange ISO5211 F07; Square 17mm
BA846-100-B-01
Flanged ball valve Series BA846; Flange ANSI150, Full bore; Body, Ball 1.4404; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+170°C; Nominal diameter 100mm; Length 140mm; Head flange ISO5211 F10; Square 17mm
C3M-BA074-100
Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA847-50-B-A
Flanged ball valve; Body 1.4401; Ball 1.4401/CRC-Coated; Seals Metallic CRC/Thermiculite; Stem Nitronic-50; Medium temperature 0...+530°C; Nominal diameter 50mm; Pressure range 0...25bar; Flange PN40; Flange ISO5211 F10; 25/18; Antistatic; Fire Safe
BA847-50-S0-A
Flanged ball valve with pneumatic actuator; ATEX II 2G/D; Fire-safe; Flange PN40; Body 1.4401; Ball 1.4401/CRC-Coated; Seals Metallic CRC/Thermiculite; Stem Nitronic-50; Single acting actuator; Control pressure 5,5...8bar; Medium temperature 0...+530°C; Nominal diameter 50mm; Pressure range 0...25bar; Fire Safe; Actuator PAS2005
BA091-15-L-02
Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 15mm; Length 65mm; V-ball 90°
BA091-25-L-02
Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 25mm; Length 92mm; V-ball 90°
BA091-40-L-02
Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 40mm; Length 116mm; V-ball 90°
BA091-50-L-01
Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 50mm; Length 136mm; V-ball 90°
890113
Hand lever Calibrated; For ballvalve Series 70; 71; BA069; BA078; BA091; For size 3/4"; Visual indication
BA738-14N-B-AH3N
High pressure ball valve; Female thread; Body 1.4571; Ball Nitronic-50; Seals PEEK/FKM-Special version; Medium temperature -40...+85°C; Connection 1/4"NPT; Nominal diameter 8mm; Pressure range 0...500bar; Length 71,6mm; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1 For material And Additional High pressure gas test; ATEX Certificate
BA848-10-B-AH
Ball valve made of stainless steel; ATEX II 2 G/D T4; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Medium temperature -20...+170°C; Welding ends According to ASTM A-270 12.7 x 1.65; Nominal diameter 10mm; Pressure range 0…100bar; Length 88mm; Bare shaft; Mounting flange F03, Square 9mm; Free of oil and grease for hydrogen

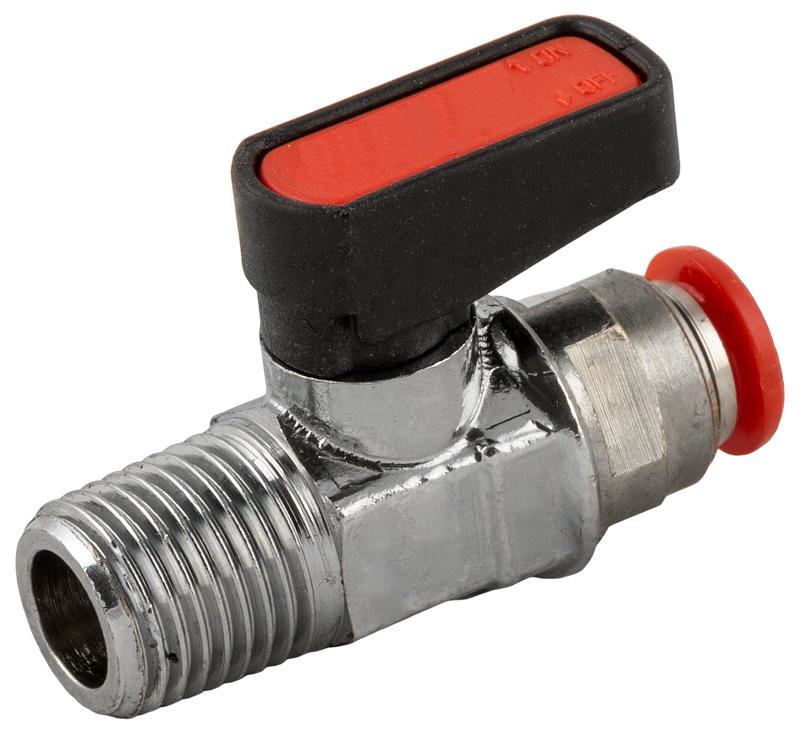

BA849-06-18-L
Ball valve made of brass; Reduced bore; Push-in fitting/Male thread; Seal NBR; Medium temperature -20...+80°C; Turning handle Plastic; Connection 6mm / R 1/8"; Nominal diameter 5mm; Pressure range 0-20bar; Length 40mm
C3M-BA409-34-A
Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
C3K-BA686-12N-A0
3.1-Inspection document According to DIN EN 12266-1 P10/P11/P12; For pressure, function and tightness
C3R-BA686-12N-A0
Inspection certificate EN-10204-3.1; For body material
CAB-BA686-12N-A0
ATEX-declaration 2014/34/EC
C3K-BA102-12N
3.1-Inspection document According to DIN EN 12266-1 P10/P11/P12; For pressure, function and tightness
C3R-BA102-12N
Inspection certificate EN-10204-3.1; For body material
BA852-20-L
Flanged ball valve Series BA856; Flange PN6, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...6bar; Medium temperature -20...+160°C; Nominal diameter 20mm; Length 40mm
