Ball valves - manually operated

STASTO Allgemeine Preisliste (EUR)
BA625-125-L
Flanged ball valve; Flange PN16, Full bore; Body Ductile iron; Seals PTFE/FPM; Pressure range 0...16bar; Medium temperature -20...+60°C; Nominal diameter 125mm; Length 325mm; Length EN558 R27; TA-Luft certification; DVGW-gas-approved
BA151-65-L
Flanged ball valve; ATEX II 2 G/D; TA-Luft; DVGW-gas-approved; Length According to EN558−1R27; Body Steel; Ball 1.4301; Seals Fibre-glass-reinforced PTFE/HNBR; Flange PN40; Full bore; Medium temperature 0...+50°C; Pressure range 0...40bar; Nominal diameter 65mm; Length 170mm
BA162-25-L-A-01
Flanged ball valve; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R101; Flange PN100, Full bore; Body And Ball Stainless steel AISI 316; Seals PTFE-metal reinforced/Graphoil/FKM; Pressure range 0...100bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 65mm; Free of oil and grease
BA236-112-L-0-01
high pressure ball valve; 3-way-type; sealing on two sides; pressure inlet just in front; female thread; housing zinc plated steel; ball steel; seals POM/FPM; medium temperature -20...+100°C; for liquids; G 11/2"; nominal diameter 40mm; pressure range 0...350bar; length 130mm; ball L; free of oil and grease for oxygen
BA646-112-L-0-01
high pressure ball valve; 3-way-type; sealing on two sides; pressure inlet just in front; female thread; housing zinc plated steel; ball steel; seals POM/FPM; medium temperature -20...+100°C; for liquids; G 11/2"; nominal diameter 40mm; pressure range 0...350bar; length 130mm; ball T; free of oil and grease for oxygen
FSKH-DN50-PN100-3123-F
DS-3KH-DN10-4494
Seal kit for 3KH ball valve DN10, silicone-free
BA740-50-B
ball valve made of stainless steel; full bore; housing, ball AISI 316L; seals PTFE/FFKM; medium temperature -20...+160°C; welding ends ISO 1127 60,3 x 2; nominal diameter 50mm; pressure range 0…25bar; length 165mm; bare shaft; mounting flange ISO5211 F05; square 14mm;
BA597-50-L
Ball valve made of stainless steel; Full bore; Body, Ball 1.4404; Seals PTFE/FFKM; Medium temperature -20...+160°C; Welding ends ISO 1127 60,3 x 2; Nominal diameter 50mm; Pressure range 0…25bar; Length 165mm; With hand lever
BA384-80-LLD-A
Flanged ball valve Series BA384-LLD-A; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Steel A352-LCB, Ball 1.4301; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Medium temperature -40...+180°C; With locking device; Nominal diameter 80mm; Pressure range 0...16bar; Flange PN16; Length 180mm
BA721-32-L
Flanged ball valve; Flange PN160; Full bore; Body 1.4571; Ball 1.4408; Seals POM/FKM; Pressure range 0...160bar; Medium temperature -10...+90°C; Nominal diameter 32mm; Length 180mm

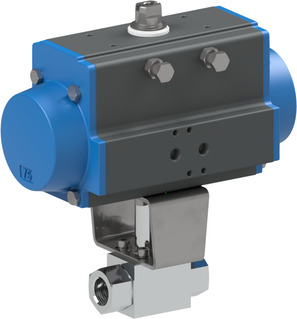

BA243-12-D0-01
Ball valve with pneumatic actuator; Female thread; Body; Ball 1.4571/1.4404; Seals PEEK/FKM FDA; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; G 3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm; Actuator PAD075
BA236-20-L
High pressure ball valve; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; G 2"; Nominal diameter 48mm; Pressure range 0...350bar; Length 150mm; Ball L
710202-DN65
Ball valve, long weld ends, DN65 body and ball 1.4651, seal PTFE/FKM
761030-50
Ball valve, flange ANSI 300, DN50 body 1.4408, ball 1.4401, seal PTFE/FKM, Fire Safe/ATEX anti-static
BA816-65-L-AH
Ball valve made of stainless steel; ATEX II 2 G/D T4; Full bore; Body And Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+170°C; Connection Butt weld ends According to ISO 1127; Nominal diameter 65mm; Pressure range 0…40bar; Length 154mm; Free of oil and grease for hydrogen
BA482-40-L-A-01
Flanged ball valve Series BA482-L-A-01; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/HNBR; Medium temperature -40...+160°C; Nominal diameter 40mm; Pressure range 0...40bar; Flange PN40; Length 79mm; Free of oil and grease
BA482-40-L-AH
Flanged ball valve Series BA482-L-AH; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/HNBR; Medium temperature -40...+160°C; Nominal diameter 40mm; Pressure range 0...40bar; Flange PN40; Length 79mm; Free of oil and grease for hydrogen
BA482-40-L-AH3C
Flanged ball valve Series BA482-L-AH3C; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/HNBR; Medium temperature -40...+160°C; Nominal diameter 40mm; Pressure range 0...40bar; Flange PN40; Length 79mm; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA413-50-LLD-A
Flanged ball valve Series BA413-LLD-A; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body, Ball 1.4408; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Pressure range 0...20bar; Medium temperature -40...+180°C; With locking device; Nominal diameter 50mm; Length 178mm
