Other materiales - A03

Category

Body, Ball 1.4401; Seals PTFE/FKM; Control pressure 5,5...8bar; Medium temperature -20...+160°C; With mounted NAMUR solenoid valve

Ball valve with pneumatic actuator Series BAB1.SS.ABS

Body, Ball Brass; Seals PTFE/FKM/EPDM; Control pressure 5,5...8bar; Medium temperature -20...+160°C; With mounted NAMUR solenoid valve

Ball valve with pneumatic actuator Series BAB1.BL.ABS

3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Double acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar

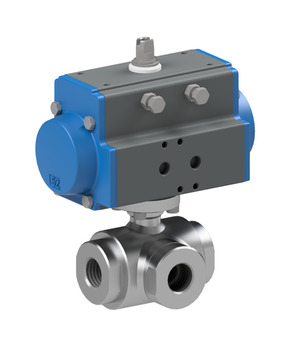

Ball valve with pneumatic actuator Series BAL1, BAT1

3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar

Ball valve with pneumatic actuator Series BAL1, BAT1

Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

Ball valve with pneumatic actuator Series BAH1-UCPN-D0

Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

Ball valve with pneumatic actuator Series BAH1-UCPN-S0

Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

Ball valve with pneumatic actuator Series BAH7-D0

Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

Ball valve with pneumatic actuator Series BAH7

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For neutral gases

Ball valve with pneumatic actuator Series BAK1-D0

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids

Ball valve with pneumatic actuator Series BAH1-SSKV-D0

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For neutral gases

Ball valve with pneumatic actuator Series BAK1-S0

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids

Ball valve with pneumatic actuator Series BAH1

3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BAL, BAT

3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BAL, BAT

Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar

Ball valve with pneumatic actuator Series BAI1

Female thread 3-way-type; Sealing on two sides; Pressure inlet just in front; Body, Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...350bar

Ball valve with pneumatic actuator Series BAI1

3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C

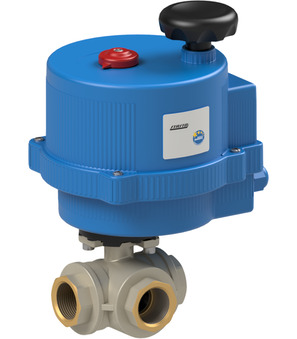

Ball valve with electrical actuator Series 8E026, 8E027

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA081-D0-A

Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar

Flanged ball valve with pneumatic actuator Series BA052-D0

Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar

Flanged ball valve with pneumatic actuator Series BA052-S0

For steam; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Flanged ball valve with pneumatic actuator Series BA079-S

For steam; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Flanged ball valve with pneumatic actuator Series BA079-D

ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA175-D

ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA175-S

Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar

Flanged ball valve with pneumatic actuator Series BA178-D0

Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar

Flanged ball valve with pneumatic actuator Series BA178-S0

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar

Flanged ball valve with pneumatic actuator Series BA178-D0-A

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar

Flanged ball valve with pneumatic actuator Series BA178-S0-A

Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...16bar; ATEX-design

Flanged ball valve with pneumatic actuator Series BADA

For steam; ATEX II 2 G/D; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+198°C

Ball valve with pneumatic actuator Series BA145-D0-A

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA081-S0-A

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents

Flanged ball valve with pneumatic actuator Series BA160-D0-A

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4301; Seals PTFE; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Also suitable for solvents

Flanged ball valve with pneumatic actuator Series BA160-S0-A

Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP68; ATEX II2GD ExdIIBT6Gb ExtbIIICT80°CDb

Electrical actuator Series VRX/VSX

Material Zinc plated steel

Mounting bridge

Material 1.4301

Mounting bridge

For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Ball valve with pneumatic actuator Series BA036-D0

For steam; Flange PN16; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Ball valve with pneumatic actuator Series BA050-D0

For steam; Flange PN16; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Ball valve with pneumatic actuator Series BA050-S0

Male thread According to DIN 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Ball valve with pneumatic actuator Series BA118-D0

With Heating jacket; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA128-D

3-way-type; Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -10...+160°C

Ball valve with electrical actuator Series BA046, BA047-0

Flange PN40; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar

Flanged ball valve with pneumatic actuator Series BA045-D

ATEX II 2 G/D; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body 1.4408; Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BA132

Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body 1.4408; Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; ATEX

Flanged ball valve with pneumatic actuator Series BA132

Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals fibre-glass-reinforced PTFE/FKM; Medium temperature -10...+160°C; Flange PN40

Flanged ball valve with electrical actuator Series BA115

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature 0...+100°C; Incl. Positioner 4-20mA/0-10V

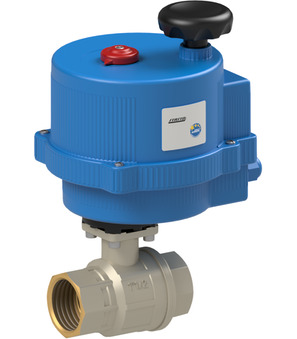

Ball valve with electrical actuator Series BA081

Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; Incl. Positioner 4-20mA/0-10V

Ball valve with electrical actuator Series 8E004

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Free of oil and grease Medium temperature -20...+160°C; RP 2"; DN 50mm; Pressure range 0-25bar; Length 136mm; Actuator PAD085

Ball valve with pneumatic actuator Series BA138

Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C

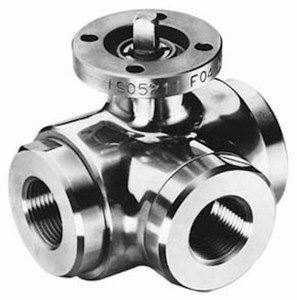

Ball valve made of stainless steel Series BA541, BA542

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C

Pneumatic actuator Series PAD-H

Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C

Flanged ball valve Series BA055, BA056

ATEX II 2 G/D T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C

Ball valve made of stainless steel Series BA541-B-A, BA542-A

ATEX II 2 G/D c T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+60°C; Free of oil and grease for oxygen

Ball valve made of stainless steel Series BA541-A0, BA542-A0

ATEX II 2 G/D; Double acting; Rotation angle 180°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar

Pneumatic actuator Series PAD-180

Female thread; Body, Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C

High pressure ball valve Series BA230-B

Flange; Body, Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C

High pressure ball valve Series BA230-B

Male thread According to ISO 8434-1 (DIN 2353); Body, Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C

High pressure ball valve Series BA230-L/S-B

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA069-D

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA891-S0-A

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA069-S

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA891-D0-A

Bare shaft; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Medium temperature -45...+150°C

Ball valve made of stainless steel Series BA125-B

Bare shaft; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Medium temperature -45...+150°C

Flanged ball valve Series BA545-B

Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/EPDM-Special; Sealing on three ports; Medium temperature -45...+150°C

Ball valve made of stainless steel Series BA119, BA235

Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Sealing on three ports; Medium temperature -45...+150°C

Flanged ball valve Series BA549-B

Electrical actuator Series VB

Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BA051-S0

ATEX II 2 G/D: Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals fibre-glass-reinforced PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BA132

ATEX II 2 G/D; Bare shaft; Fire-safe/ATEX-Antistatic design; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4408; Seals PTFE-reinforced/Graphite/FKM; Silicone-free; Medium temperature -30...+180°C

Ball valve made of stainless steel Series BA133-B-A

;ATEX II 2 G/D; Butt weld ends; Fire-safe/ATEX-Antistatic design; Body, Ball 1.4408; Seals PTFE-reinforced/Graphite/FKM; Silicone-free; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -30...+180°C

Ball valve with pneumatic actuator Series BA133-A

Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override

Electrical actuator Series J3C

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; NPT/UNC

Pneumatic actuator Series PAS-U

Electrical actuator Series VRX/VSX

;Protection class IP68; ATEX II 2 G/D ExdIIBT6Gb ExtbIIICT80°CDb; Incl. Accumulator for safety position NC; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C

Flanged ball valve with electrical actuator Series BA051

Electrical actuator Series VRX/VSX

ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA043-S0

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C

Pneumatic actuator Series PAS-H

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Inverse direction of rotation

Pneumatic actuator Series PAS-A

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C

Pneumatic actuator Series PAS-L

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; PTFE-coated; Pinion stainless steel AISI304

Pneumatic actuator Series PAS-PS

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Completely made of stainless steel

Pneumatic actuator Series PAS-SS

ATEX II 2 G/D c T6; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion stainless steel AISI304

Pneumatic actuator Series PAS-S

ATEX II 2 G/D; Single acting; Rotation angle 90° Adjustable; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar

Pneumatic actuator Series PAS-R

Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C;

High pressure ball valve Series BA233

Male thread according to DIN 2353; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C

High pressure ball valve Series BA233

Square adapter Series VK

Reducing adapter Series STSQ

Female thread; Body, Ball 1.4401; Seals PTFE-Fibre-glass-reinforced/EPDM; Compensation hole; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+160°C

Ball valve with pneumatic actuator Series BA673

Female thread; Body, Ball 1.4401; Seals PTFE-Fibre-glass-reinforced/EPDM; Compensation hole; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+160°C

Ball valve with pneumatic actuator Series BA673

Declutchable; Suitable for Series PAD/PAS

Gear box

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C

Pneumatic actuator Series PAD-L

Suitable for Series PAD

Manual emergency override

For steam; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; ; Medium temperature -20...+198°C; Pressure range Steam 0...15bar

Ball valve with pneumatic actuator Series BA091-S0

Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Ball valve with pneumatic actuator Series BA029

Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP68; Incl. Positioner 4-20mA/0-10V; inkl. Accumulator for safety position NC

Electrical actuator Series VB

Flange PN40; Body Steel; Ball 1.4301; PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar

Flanged ball valve with pneumatic actuator Series BA045-S

Pneumatically; 3/2-way; NC; Mechanically operated

Mounting bracket Suitable for Limit switch

ATEX II 2 G/D; Double acting; Rotation angle 180°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Pinion made of stainless steel 1.4305

Pneumatic actuator Series PAD-HS

ATEX II 2 G/D T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C

Ball valve with pneumatic actuator Series BA541-D0-A, BA542-D0-A

ATEX II 2 G/D c T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C

Ball valve with pneumatic actuator Series BA541-S0-A, BA542-S0-A

Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator, Oversized; Control pressure 5,5...8bar; Medium temperature -10...+198°C

Ball valve with pneumatic actuator Series BA078-D0B/D01

ATEX II 2 G/D; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+198°C

Ball valve with pneumatic actuator Series BA078-D0B/D01-A

Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator, Oversized; Control pressure 5,5...8bar; Medium temperature -20...+198°C

Ball valve with pneumatic actuator Series BA091-D0B/D01

ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6, Oversized; Control pressure 5,5...8bar; Medium temperature -20...+198°C

Ball valve with pneumatic actuator Series BA091-D0B/D01-A

Female thread; Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-B

Male thread According to ISO 8434-1 (DIN 2353); Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-L/S-B

Female thread; Body, Ball 1.4571/1.4404; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+100°C; For liquids

Ball valve with pneumatic actuator Series BA102

Male thread according to ISO 8434-1 (DIN 2353); Drilled for mounting an actuator; Body, Ball 1.4571/1.4404; Seals PEEK/FKM; Medium temperature -20...+200°; For liquids

High pressure ball valve Series BA243

Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C

Ball valve made of brass Series 2500

Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override

Electrical actuator Series J4C

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA033-D0-A

ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA137

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Flanged ball valve with pneumatic actuator Series BA044-S0-A

Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Flanged ball valve with pneumatic actuator Series BA044-D0

Electrical actuator Series VB-UL

ATEX II 2 G/D T4; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C

Flanged ball valve Series BA055, BA056-ATEX

ATEX II 2 G/D T4; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BA055-D-A, BA056-D-A

ATEX II 2 G/D; TA-Luft; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar

Flanged ball valve with pneumatic actuator Series BA052-S0-A

Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C

Ball valve made of brass Series BA080-B

Bare shaft; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/PTFE/FKM; Medium temperature -20...+170°C

Ball valve made of stainless steel Series BA168-B

Bare shaft; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/PTFE/FKM; Medium temperature -20...+170°C; Free of oil and grease for hydrogen

Ball valve made of stainless steel Series BA168-B-H

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar

Pneumatic actuator Series PAS

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°

Pneumatic actuator Series PAS-B

Electrical actuator Series VB-AKKU-POS

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Inverse direction of rotation

Pneumatic actuator Series PAD-HA

Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. Positioner 4-20mA/0-10V; Incl. manual emergency override

Electrical actuator Series VB-M-R

Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Flanged ball valve with pneumatic actuator Series BA049-S0-3C

ATEX II 2 G/D; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA034-S0-A

ATEX II 2 G/D; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA034-D0-A

Electrical actuator Series VB-AKKU

Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Medium temperature -20...+100°C

High pressure ball valve Series BA268-B

Female thread; Body Zinc plated steel; Ball Steel; Seals POM/EPDM-Perox; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; For liquids

Ball valve with pneumatic actuator Series BA268-S0

For steam; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C

Ball valve with electrical actuator Series BA036

3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C

Ball valve with electrical actuator Series BA037, BA038

Ball valve with pneumatic actuator Series BA037, BA038-D0

Ball valve with pneumatic actuator Series BA037, BA038-S0

Female thread; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; Flange Bolt circle 36mm, Distance of the mounting holes 18x31,2mm

High pressure ball valve Series BA233

Male thread according to DIN 2353; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; Flange Bolt circle 36mm, Distance of the mounting holes 18x31,2mm

High pressure ball valve Series BA233

; 1.4305

Bolt

; 1.4305

Bolt

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Pinion turned by 90°

Pneumatic actuator Series PAD-HB

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Pinion turned by 90°

Pneumatic actuator Series PAD-B

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R101; Flange PN100, Full bore; Body steel A350-LF2, Ball 1.4301; Seals PTFE-metal reinforced/FKM/Graphite; Pressure range 0...100bar;Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA179-S0-A

Length According to EN558−1R24; Flansch PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Medium temperature -10...+120°C; Pressure range 0…16bar

Flanged ball valve with electrical actuator Series BA040

ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate

Pneumatic actuator Series PAS-3M

Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate

Electrical actuator Series VB

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R1; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Flanged ball valve with pneumatic actuator Series BA073-S0-A

For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Pressure range Steam 0...14bar; Medium temperature -20...+198°C

Ball valve with pneumatic actuator Series BA036-S0

Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA043-D0

ATEX II 2 G/D; Bare shaft; Flange PN16; Full bore; Body Steel A352-LCB, Ball stainless steel 1.4301; Seals MPTFE/PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+180°C

Flanged ball valve Series BA353-B-A

ATEX II 2 G/D; Bare shaft; Flange PN16; Full bore; Body, Ball 1.4401; Seals MPTFE/PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+180°C

Flanged ball valve Series BA282-B-A

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals MPTFE/PTFE/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA282

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals MPTFE/PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA282

ATEX II 2 G/D; Flange PN16; Body Steel A352-LCB; Ball 1.4301; Seals MPTFE/PTFE/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA353

ATEX II 2 G/D; Flange PN16; Body Steel A352-LCB; Ball 1.4301; Seals MPTFE/PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+180°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA353

ATEX zone 0 and 20; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C

Ball valve with pneumatic actuator Series BAH1-A

ATEX zone 0 and 20; Bare shaft; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; For liquids; Medium temperature -20...+100°C

High pressure ball valve Series BA066-B-A

ATEX zone 1 and 21; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids

Ball valve with pneumatic actuator Series BA066-D0-A

Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids

Ball valve with pneumatic actuator Series BA066-D0

1.4301; According to ISO4017

Hexagon head screw Series SW002-I

1.4301; According to DIN127

Spring washer Series SWA004-I

3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body, Ball Stainless steel 1.4571/1.4404; Seals POM/NBR; Medium temperature -30...+100°C; For liquids

High pressure ball valve Series BA696-B

Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE-metal reinforced/FKM; Sealing on three ports; Medium temperature -20...+200°C

Ball valve made of stainless steel Series BA355, BA388

Bare shaft; 3-way-type; Sealing on three ports; Female thread; Body, Ball 1.4571; Seals PEEK/FKM-Low temperature; With erosion protection ring; Medium temperature -30...+200°C (151...+200°C Max. 95bar)

High pressure ball valve Series BA351-B

3-way-type; Sealing on three ports; Female thread; Body, Ball 1.4571; Seals PEEK/FKM-Low temperature; With erosion protection ring; Medium temperature -30...+200°C (151...+200°C Max. 95bar)

Ball valve with electrical actuator Series BA351

ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA049-D0-A

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA033-D0

ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA033-S0-A

For steam; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+187°C; Pressure range Steam 0...11bar

Ball valve with pneumatic actuator Series BA130

; Bare shaft; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body, Ball Stainless steel 1.4571; Seals POM/NBR; Medium temperature -30...+100°C; For liquids

High pressure ball valve Series BA696-B

ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA043-A

ATEX II 2 G/D; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Ball valve with pneumatic actuator Series BA028-A

ATEX II 2 G/D; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C

Ball valve with pneumatic actuator Series BA028-A

ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; PTFE coated

Pneumatic actuator Series PAD-P

Butt weld ends ISO 11850; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+170°C

Kugelhahn mit Druckluftdrehantrieb Serie BA446-S0AH

Ball valve with pneumatic actuator Series BA446-S0AH

Female thread; Body, Ball 1.4401; Seals PTFE/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA440

Fire-safe; TA-Luft; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA106-D0

Fire-safe; TA-Luft; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA106-S0

ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Double acting actuator ATEX II 2 G/D; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA106-S0-A

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA081-D0

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

Ball valve with pneumatic actuator Series BA081-S0

Electrical actuator Series VR/VS

Electrical actuator Series ER

Electrical actuator Series VR/VS

Female thread; Body, Ball Stainless steel AISI 316; Seals PTFE-Reinforced with carbographite/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+160°C

Ball valve with pneumatic actuator Series BA364-D0

Female thread; Body, Ball Stainless steel AISI 316; Seals PTFE-Reinforced with carbographite/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+160°C

Ball valve with pneumatic actuator Series BA364-S0

Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4...20mA/0...10V

Electrical actuator Series VB

Bare shaft; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Medium temperature -20...+170°C

Flanged ball valve Series BA272

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Free of oil and grease for oxygen

Ball valve with pneumatic actuator Series BA033-D0-0

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Free of oil and grease for oxygen

Ball valve with pneumatic actuator Series BA033-S0-0

For steam; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Pressure range Steam 0...14bar; Medium temperature -20...+198°C

Ball valve with pneumatic actuator Series BA036-S0-A

ATEX II 2G/D; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2G/D; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanschkugelhahn mit Druckluftdrehantrieb Serie BADA.gif

Flanschkugelhahn mit Druckluftdrehantrieb Serie BADA-3.gif

Flanged ball valve with pneumatic actuator Series BA049-S0-A

Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar

Flanged ball valve with pneumatic actuator Series BA049-D0

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1 R27; Body, Ball 1.4408; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C

Flanged ball valve with pneumatic actuator Series BA368-D0-A

ATEX II 2 G/D; Bare shaft; Flange PN16; Full bore; Body, Ball 1.4401; Seals TFM-MPTFE-Thickness Reduced/FFKM; Pressure range 0...16bar; Medium temperature -20...+180°C

Flanged ball valve Series BA496-B-A

Bare shaft; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/EPDM; Medium temperature -20...+150°C

Flanged ball valve Series BA734

Other materiales - A03

Female thread; Double acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-D0

Male thread According to ISO 8434-1 (DIN 2353); Double acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-L/S-D0

Male thread According to ISO 8434-1 (DIN 2353); Single acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-L/S-S0

Female thread; Single acting actuator; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C

High pressure ball valve Series BA234-S0

Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Medium temperature -20...+160°C

Flanschkugelhahn mit Elektroantrieb Serie BA048

Flanged ball valve with electrical actuator Series BA048

ATEX zone 1 and 21; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids

Ball valve with pneumatic actuator Series BA066-S0-A

ATEX II 2 G/D; Bare shaft; Full bore; Three-parts type; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C

Ball valve made of stainless steel Series BA486-B-A

ATEX II 2 G/D; Bare shaft; Full bore; Three-parts type; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C; Free of oil and grease for hydrogen

Ball valve made of stainless steel Series BA486-B-AH

ATEX II 2 G/D; Bare shaft; Full bore; Three-parts type; Female thread; Body, Ball 1.4404; Seals PTFE/EPDM; Medium temperature -20...+150°C; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Ball valve made of stainless steel Series BA486-B-AH3C

Design

Loading...
Pressure range

Loading...
DN

Loading...
Ball

Loading...
Flange

Loading...
Voltage

Loading...
Material of case

Loading...
Function

Loading...
Connection

Loading...
Female thread

Loading...
Diameter

Loading...
Male thread

Loading...
Butt weld ends

Loading...
Type

Loading...
Keywords
- Verpackungsmaterial/EPR-Recycling

Reset

Other materiales - A03

BA112-100-0H-01

Flanged ball valve with electrical actuator Series BA112-0H; Flange ANSI300; Flange thread Metrical; Full bore; Body, Ball 1.4401; Seals PTFE-Fibre-glass-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 100mm; Length 152mm; Electrical actuator VB270M-0F50-Q22; Operating time 50s; Voltage 100-240VAC; Body Aluminum; Protection class IP68;

VS300-CM35-Q22

Electric control actuator Series VR/VS; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP68; Torque 300Nm; Operating time 35s; Flange ISO5211 F07/F10-Stern 22mm; Voltage 400V/50/60Hz; 3-phase; Control signal Transmitter 4-20mA

BA043-100-CM

Flanged ball valve with electric actuator; Flange PN16; Body Steel; Ball 1.4401; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 100mm; Pressure range 0...16bar; Length 152mm; Operating time 35s; Voltage 400V/3/50-60Hz; Protection class IP67; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Transmitter 4...20mA

EB0X05-T1A1

mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-100; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic; mounting bridge T1A1

EB0X05X-T3A3

Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS115-230; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831391 - ATEX; Contact material Silber-Nickel; Material of case Plastic; Mounting bridge T3A3

BA683-RD95X16-D0-3E-01

Ball valve made of stainless steel; Full bore; Body 1.4404; Ball 1.4404; Seals MPTFE/FKM; Medium temperature -20...+170°C; Connection 95x1/6"; DIN 11851 F/F; Nominal diameter 65mm; Pressure range 0…40bar; Length 154mm; Heating jacket; Actuator PAD075; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-certification

BA080-12-0H-01

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0...40bar; Length 67mm; Operating time 10s; Voltage 100...240VAC; Square adapter Made of stainless steel

BA683-RD95X16-D0-3E-01-ABS54-C001-03-C002-31-LV-2

BA683-RD95X16-D0-3E-01
Ball valve made of stainless steel; Full bore; Body 1.4404; Ball 1.4404; Seals MPTFE/FKM; Medium temperature -20...+170°C; Connection 95x1/6"; DIN 11851 F/F; Nominal diameter 65mm; Pressure range 0…40bar; Length 154mm; Heating jacket; Actuator PAD075; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-certification
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

BA910-112-S0

Ball valve with pneumatic actuator; ATEX II 2 G/D; Female thread; Body, Ball 1.4401/1.4542; Seals Metallic/Graphoil; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -50...+400°C; Connection G 11/2"; Nominal diameter 40mm; Pressure range 0...138bar; Length 130mm; Actuator PAS1255-H

ER60-0Q15-Q22

Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 15sec; Flange ISO5211 F05/F07-star 22mm; Voltage 100...240VAC / 100...350VDC; Protection class IP65

BA234-10-0L

Ball valve with electrical actuator; Female thread; Body, Ball 1.4571/1.4404; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; G 1"; Nominal diameter 25mm; Pressure range 0...350bar; Length 113mm; Operating time 27s; Voltage 24VAC/DC

BA727-12-SP0L

Ball valve with electrical actuator; 4-way-type; Five-part; Female thread; Body 1.4408 Polished, Ball 1.4401; Seals PTFE; Medium temperature -30...+160°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...63bar; Length 79mm; Ball X; Operating time 10s; Voltage 24VAC/DC

BA931-32-S0-A

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R1; Body, Ball 1.4408; Seals PTFE-reinforced/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 32mm; Pressure range 0...40bar; Flange PN40; Length 180mm; Actuator PAS0635

BA931-65-S0-A

Flanged ball valve with pneumatic actuator Series BA931-S0-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R1; Body, Ball 1.4408; Seals PTFE-reinforced/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 65mm; Pressure range 0...16bar; Flange PN16; Length 290mm; Actuator PAS1155

BA931-32-S0-A-ABS53-EPC02400-1-MS-2P-052230-PF002

BA931-32-S0-A
Flanged ball valve with pneumatic actuator Series BA931-S0-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R1; Body, Ball 1.4408; Seals PTFE-reinforced/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 32mm; Pressure range 0...40bar; Flange PN40; Length 180mm; Actuator PAS0635
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC
MS-2P-052230-PF002
Mounted inductive dual proximity switch; 8,2VDC; 2 NC-Namur-EExi; Electric connection M12, 4-pin; P&F-NCN3-F31-N4-V1; For actuator 52 To 230

BA931-65-S0-A-ABS53-EPC02400-1-MS-2P-052230-PF002

BA931-65-S0-A
Flanged ball valve with pneumatic actuator Series BA931-S0-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R1; Body, Ball 1.4408; Seals PTFE-reinforced/Graphoil/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 65mm; Pressure range 0...16bar; Flange PN16; Length 290mm; Actuator PAS1155
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC
MS-2P-052230-PF002
Mounted inductive dual proximity switch; 8,2VDC; 2 NC-Namur-EExi; Electric connection M12, 4-pin; P&F-NCN3-F31-N4-V1; For actuator 52 To 230

BA542-212-B-3E

Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 21/2"; Nominal diameter 65mm; Pressure range 0...40bar; Length 160mm; Ball L; Flange ISO5211 F07; Square 17mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-certification

BA542-212-D0-3E

Ball valve with pneumatic actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 21/2"; Nominal diameter 65mm; Pressure range 0…40bar; Length 160mm; Actuator PAD085; Ball L; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-certification

RK-HAD50

Repair kit For Hydraulic actuator HAD50

BA010-20-2PL-01

Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 2"; DN 50mm; Pressure range 0...10bar; Length 166mm; Actuator VB060M-PE9-Q14; Operating time 9s; Voltage 24VAC/DC; Body Aluminum; Protection class IP68; Accumulator for safety position NC; Ball T; Flow path 02

Search

Your Cart

Categories

Other materiales - A03

Other materiales - A03
