BA049-40-D0-01
Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAD063; V-Ball 90°
EP0S11
Mounted positioner; Digital I/P-positioner, 4-20 mA; Actuator PAD052-270

BA047-65-S0-01

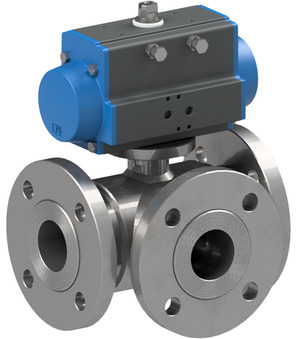

Flanged ball valve with pneumatic actuator; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Reduced bore; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Pressure range 0...16bar; Nominal diameter 65mm; DN ball 50,2mm; Length 106mm; Actuator PAS1255; Ball T
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; With visual position indicator On/off

ABS54-PI08
Mounted pilot valve; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270; Hose connection Push-in fitting 8mm
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

BA048-80-S0
Flanged ball valve with pneumatic actuator Series BA048-S; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 80mm; Length 122mm; Actuator PAS1255
ABS53-C001-03-C002-31-LV-2
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
EB0X01-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; With visual position indicator On/off

BA048-50-S0
Flanged ball valve with pneumatic actuator Series BA048-S; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Actuator PAS1005
ABS53-C001-03-C002-31-LV-2
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
EB0X01-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; With visual position indicator On/off

BA048-80-T0
Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 80mm; Length 122mm; Actuator PAS1255B; Safety position NO
ABS53-C001-03-C002-31-LV-2
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
EB0X01-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; With visual position indicator On/off

BA210-12-S0
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Free of oil and grease; For oxygen; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-140bar; Length 66mm; Actuator PAS0755
ABS53-C001-03-C002-31-6
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

BA082-100-T0
Flanschkugelhahn mit Druckluftdrehantrieb; Flansch ANSI150; Gehäuse, Kugel 1.4401; Dichtungen PTFE/FKM; doppeltwirkender Antrieb; Steuerdruck 4...8bar; Mediumstemperatur -20...+160°C; Druckbereich 0...16bar; Nennweite 100mm; Einbaulänge 152mm; Antrieb PAD115
ABS53-C001-03-C002-31-6
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01-WSTHVB
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; Mounting bridge Stainless steel
FR01-14-0,5/8
Filter regulator Series FR01/FR; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 20µm; Plastic bowl with protection cage; Connection 1/4"; Flow at 6,3bar/Δp=1bar 1200Nl/min; Max. inlet pressure 16bar
MMP01-14
Mounting bracket; Suitable to series MU301-14, MU201-14, FR01-14, RE01-14

BA091-20-D0
Ball valve with pneumatic actuator; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 20mm; Pressure range 0-15bar; Length 76mm; Actuator PAD052
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

BA034-100-S0-3C
Ball valve with pneumatic actuator Series BA034-S0-3C; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Pressure range 0-16bar; Length 217mm; Actuator PAS1255; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
ABS53-C001-03-C002-31-6
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; With visual position indicator On/off

BA034-100-S0-3C
Ball valve with pneumatic actuator Series BA034-S0-3C; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Pressure range 0-16bar; Length 217mm; Actuator PAS1255; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
ABS51-C001-03-C002-31-6
ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01-C0
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic; With visual position indicator On/off

BA128-150-S0
Flanged ball valve with pneumatic actuator; With heating jacket; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 150mm; Length 232mm; Connections Heating jacket G 1"; Actuator PAS2005
ABS54
Mounted pilot valve Series ABS; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270
PI16-06-14-N-0-360
Swivel male elbow Series PI16-360; Nickel plated brass; Cylindrical thread; Diameter 6mm; Thread 1/4"
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic

BA261-50-S0-AH3C
Flanged ball valve with pneumatic actuator Series BA261-S0-AH3C; Fire-Safe/Antistatik According to ATEX/TA−Luft; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Pressure range 0-40bar; Flange PN40; Length 84mm; Actuator PAS1155; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
EB0X86
Mounted limit switch box; IP65; 2x Inductive Proximity switch; Switching capacity 10-30VDC/100mA; Switch type P+F NBB2-V3-E2-3G-3D; Function NO contact PNP; Material of case Aluminum; Cable inlet M20x1,5; Temperature range -25...+70°C; Including visual indication; ATEX II3G Ex ec IIC T6 Gc; II3D Ex tc IIIC T80°C Dc

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D; Fire-Safe; Length According to EN558−1 R27; Body Zinc plated steel, Ball 1.4301; Stem seal 2-fold PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 125mm; Pressure range 0...16bar; Flange PN16; Length 325mm; Actuator PAD125; Flat sealing face; With mounted fittings 8mm

Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body Zinc plated steel, Ball 1.4301; Stem seal 2-fold PTFE/FKM; Double acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm; Actuator PAD140; Flat sealing face; With mounted fittings 8mm

Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-Wege-NAMUR-Magnetventil (NM32W1S-PR); Actuator PAS052-270; Connection 8mm; Mounted coil EPC02400-1

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0-40bar; Length 67mm; Operating time 10s; Voltage 24VAC/DC; Incl. Positioner 4-20mA/0-10V

Flanged ball valve with pneumatic actuator Series BA835-S0; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FFKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 240mm; Pressure range 0…16bar; Flange PN16; Actuator PAS1255; Ball T

Ball valve made of stainless steel; With spring return; ATEX II 2 G/D T4; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Medium temperature -20...+160°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 62mm

Flanged ball valve with pneumatic actuator Series BA835-S0; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FFKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 240mm; Pressure range 0…16bar; Flange PN16; Actuator PAS1255; Ball T; Flow path 02
