Ball valves - automatically operated

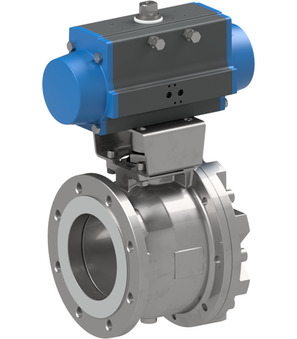

Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body, Ball 1.4408; Stem seal 2-fold PTFE/FKM; Double acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm; Actuator PAD140; Flat sealing face; With mounted fittings 8mm

SQ72A-EB8-Q22-01

Electric control actuator; Suitable for Valves with 90° operation; 2 potential-free contacts for end position feedback; 2 Torque switches; Incl. manual emergency override; Torque 100...300Nm Adjustable; Operating time 8 Seconds; Flange ISO5211-F05/F07; Square 22mm; Voltage 230V/50Hz; Protection class IP68; class C EN15714-2, S4 25%; Incl. Aumamatic ACEXC 01.2; ATEX II 2G Ex db eb IIC T4 Gb; II 2D Ex tb IIIC T130°C Db; II 2G Ex h IIC T4 Gb

SQR072A-EM22-Q17-01

Electric control actuator; Suitable for Valves with 90° operation; MWG; Output signal (position feedback) 4...20mA; Incl. manual emergency override; Torque 150-300Nm Preset at 220Nm; Operating time 22 Seconds; Flange ISO5211-F10; AF 17mm; Voltage 400V50Hz; Protection class IP68; class C EN15714-2, S4 25%; Control AC01.2 Integrated

BA056-80-2S4-01

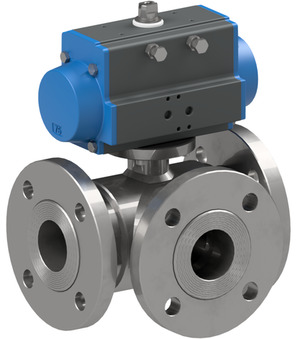

flanged ball valve with pneumatic actuator; flow path 02; inverse direction of rotation; 3-way-type; sealing on three ports; housing AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; control pressure 5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; length 260mm; pressure range 0…16bar; flange PN16; actuator PAS1605-A; ball T

BA716-50-S0-A

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T6 X; Body, Ball 1.4401/1.4542; Seals Metallic/Graphoil; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -46...+400°C; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN40; Actuator PAS1805-H; Incl. 100mm Stem extension

BA742-100-B

flanged ball valve; bare shaft; 3-way-type; full bore; housing AISI 316L polished; ball AISI 316L; seals PTFE/EPDM; sealing on three ports; medium temperature -20...+160°C; nominal diameter 100mm; DN ball 100mm; pressure range 0...16bar; flange PN16; length 300mm; ball L; flange ISO5211 F07; square 17mm

BA055-100-B-02

Flanged ball valve; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Incl. Pressure sleeve; Sealing on three ports; Medium temperature -20...+160°C; Nominal diameter 100mm; DN ball 100mm; Pressure range 0...16bar; Flange PN16; Length 300mm; Ball L; Flange ISO5211 F07; Square 17mm

BA051-150-CE-01

Flanged ball valve with electrical actuator; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm; 2 potential-free contacts for end position feedback; Operating time 36-73s; Voltage 24VAC/DC. Electrical actuator PSQ503AMS; In- and output signal 0(4)-20mA bzw. 0(2)-10V; Fault relay

BA522-125-B

flanged ball valve; 3-way-type; sealing on four ports; housing, ball AISI 316; seals PTFE/graphite reinforced/FKM; medium temperature -20...+180°C; nominal diameter 125mm; reduced bore 100mm; length 325mm; pressure range 0-16bar; flange PN16; ball L; for mounting an actuator F10/SW22

BA742-100-D0

flanged ball valve with pneumatic actuator; 3-way-type; sealing on three ports; housing AISI 316L polished; ball AISI 316L; seals PTFE/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 100mm; length 300mm; pressure range 0…16bar; flange PN16; actuator PAD115; ball L

BA044-200-D2-A-02

Flanged ball valve with pneumatic actuator; ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; Fire-Safe; TA−Luft; Length According to EN558−1 R27; Body Zinc plated steel, Ball 1.4301; Stem seal 2-fold PTFE/FKM; Double acting actuator; ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T85°C Db; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 200mm; Pressure range 0-16bar; Flange PN16; Length 400mm; Actuator PAD180; Flat sealing face; With mounted fittings 8mm

BA128-150-S0

Flanged ball valve with pneumatic actuator; With heating jacket; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 150mm; Length 232mm; Connections Heating jacket G 1"; Actuator PAS2005

BA071-80-D0-A

ball valve with pneumatic actuator; flange ANSI600; ATEX II 2 G/D c T3; housing, ball AISI 316; seals PTFE/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...100bar; nominal diameter 80mm; length 356mm; actuator PAD160

BA055-100-D0-02

Flanged ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Incl. Pressure sleeve; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Length 300mm; Pressure range 0…16bar; Flange PN16; Actuator PAD115; Ball L

BA055-100-0H

Flanged ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Medium temperature 0...+100°C; Nominal diameter 100mm; Length 300mm; Pressure range 0…16bar; Flange PN16; Operating time 50s; Voltage 100-240VAC; Ball L

BA522-125-D0

flanged ball valve with pneumatic actuator; 3-way-type; sealing on three ports; housing, ball AISI 316; seals PTFE/graphite reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+180°C; nominal diameter 125mm; reduced bore 100mm; length 325mm; pressure range 0-16bar; flange PN16; actuator PAD115; ball L

BA130-150-S0

Ball valve with pneumatic actuator; Flange PN40; For steam; Full bore; Body, Ball 1.4401; Seals PTFE-Graphite/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20…187°C; Nominal diameter 150mm; Length 232mm; Pressure range 0...11bar; Actuator PAS2005

BA575-150-S0

Flanged ball valve with pneumatic actuator; Flange PN40; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -35...+150°C; Pressure range 0...40bar; Nominal diameter 150mm; Length 232mm; Actuator PAS2005; Safety position NC

BA162-100-S0-AH

ball valve with pneumatic actuator; ATEX II 2 G/D; fire-safe; TA-Luft; length according to EN558−1R101; flange PN100; full bore; housing and ball stainless steel AISI 316; seals PTFE-metal reinforced/Graphoil/FKM; pressure range 0...100bar;; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 100mm; pressure range 0...100bar; length 185mm; actuator PAS2005; free of oil and grease for hydrogen

BA741-80-0N

flanged ball valve with electrical actuator; ball valve ATEX II 2 G/D c T6 X; housing AISI 316; ball AISI 316/CRC-coated; seals metallic CRC-WC/graphite; stem inconel 718; medium temperature -46...+400°C; nominal diameter 80mm; pressure range 0...40bar; flange PN40; length 145mm; incl. 100mm stem extension; actuator VS300; operating time 60s; voltage 15-30V/50-60Hz, 12-48VDC
