Ball valves - automatically operated

STASTO Allgemeine Preisliste (EUR)

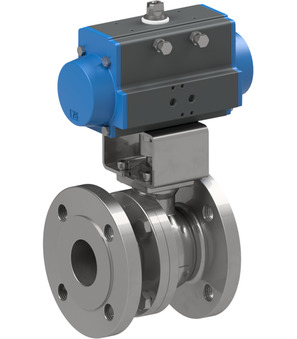

BA051-125-D2-A-01
Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body, Ball 1.4408; Stem seal 2-fold PTFE/FKM; Double acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 125mm; Pressure range 0-16bar; Flange PN16; Length 325mm; Actuator PAD125
BA048-150-0L
Flanged ball valve with electrical actuator; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 150mm; Pressure range 0-16bar; Length 232mm; Operating time 50s; Voltage 24VAC/DC
VT1000-0Q65-Q36
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 1000Nm; Operating time 65sec; Flange ISO5211 F10/F12-star 36mm; Voltage 100-240V/50-60Hz, 100-350VDC; Protection class IP68
VT1000-0V65-Q36
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 1000Nm; Operating time 65sec; Flange ISO5211 F10/F12-star 36mm; Voltage 24-48V/50-60Hz, 24-72VDC; Protection class IP68

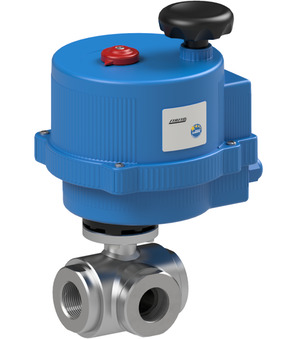

BA542-30-CL
Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 3"; DN 80mm; Pressure range 0…16bar; Length 200mm; Operating time 27s; Voltage 24VAC/DC; Electric actuator with positioner 0-10V/4-20mA; Ball L
BA137-125-D0-A-01
Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Antistatic design; ATEX; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 125mm; Length 196mm; Actuator PAD115; Mounted limit switch box EB0X05; Mounted pilot valve ABS51-230V/50-60Hz-ATEX

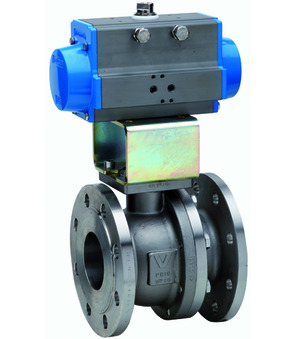

BA115-150-D0-A
Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body Zinc plated steel; Ball 1.4301; Stem seal 2-fold PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 150mm; Pressure range 0-40bar; Flange PN40; Length 350mm; Actuator PAD160
BA051-125-CH
Flanged ball valve with electrical actuator; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 125mm; Pressure range 0-16bar; Flange PN16; Length 325mm; 2 potential-free contacts for end position feedback; Operating time 60s; Voltage 100-240V50-60Hz; In- and output signal 4-20mA bzw. 0-10V
BA051-125-S0-A-01
Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 125mm; Pressure range 0...16bar; Flange PN16; Length 325mm; Actuator PAS1405
BA051-125-D2-A-02
flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1 R27; housing, ball AISI 316; stem seal 2-fold PTFE/FKM; double acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; nominal diameter 125mm; pressure range 0-16bar; flange PN16; length 325mm; actuator PAD125; flat sealing face; with mounted fittings 8mm
BA049-100-0M-A-01
Flanged ball valve with electrical actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 100mm; Pressure range 0-16bar; Length 152mm; Actuator AUMA SQ72A-0M8-Q17-01; Operating time 8s; Voltage 400VAC; ATEX II 2 G/D c T3
BA051-100-0B
Flanged ball valve with electrical actuator; Protection class IP68; ATEX II2GD ExdIIBT6Gb ExtbIIICT80°CDb; Length According to EN558−1 R27; Body, Ball 1.4408; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 100mm; Pressure range 0-16bar; Flange PN16; Length 190mm; Operating time 4s; Voltage 230V 50Hz
VT600-PQ42-Q36
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 600Nm; Operating time 42sec; Flange ISO5211 F10/F12-star 36mm; Voltage 100-240VAC, 100-350VDC; Protection class IP67; With Accumulator for safety position NC
BA162-80-S0-A
ball valve with pneumatic actuator; ATEX II 2G/D c T3; fire-safe; TA-Luft; length according to EN558−1R101; flange PN100, full bore; housing stainless steel AISI 316, ball AISI 316L; seals PTFE/FKM/graphite; pressure range 0...100bar; single acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0...100bar; length 150mm; actuator PAS1805
BA813-50-S0-AH
Flanged ball valve with pneumatic actuator; Body, Ball 1.4401; Seals KEL-F (PCTFE)/Graphite; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -50...+180°C; Nominal diameter 50mm; Pressure range 0-16bar; Flange PN16; Length 95mm; Actuator PAS1605; Free of oil and grease for hydrogen; ATEX Ex II2G c IIC TX And Ex II2D c IIC TX;
BA473-125-D0
Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PEEK Thickness Reduced; Stem Reinforced 17-4-PH; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 125mm; Length 196mm; Actuator PAD125
BA055-80-B-02
Flanged ball valve; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Incl. Pressure sleeve; Sealing on three ports; Medium temperature -20...+160°C; Nominal diameter 80mm; DN ball 80mm; Pressure range 0...16bar; Flange PN16; Length 260mm; Ball L; Flange ISO5211 F07; Square 17mm
BA499-40-L
Flanged ball valve; With hand lever; Body, Ball 1.4571; Seals PEEK; Medium temperature -30...+160°C; Nominal diameter 40mm; Pressure range 0...320bar; Flange PN320
BA541-30-3S0-01
Ball valve with pneumatic actuator; 3-way-type; Flow path 03; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator; Full bore; Control pressure 4...8bar; Medium temperature -20...+170°C; G 3"; Nominal diameter 80mm; Pressure range 0…40bar; Length 200mm; Actuator PAS1604; Ball T
BA368-125-S0-A-01
flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R27; housing, ball AISI 316; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 125mm; pressure range 0...16bar; flange PN16; length 325mm; actuator PAS1605-L low temperature equipment
