Ball valves - automatically operated

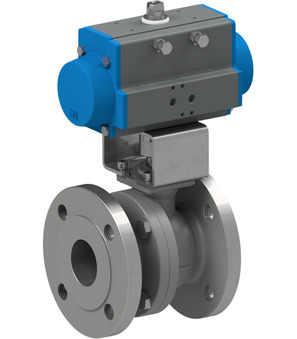

Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Body, Ball 1.4408; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 57mm; Actuator PAS0855; With control ball V30-60; Safety position NO

BA080-12-CH

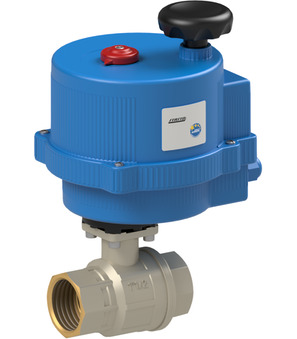

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0-40bar; Length 67mm; Operating time 10s; Voltage 100-240VAC; Incl. Positioner 4-20mA/0-10V

BA050-25-S2

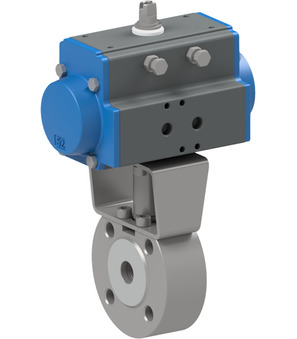

Flanged ball valve; Flange PN16; Full bore; Body; Ball 1.4401; Seals PTFE-Graphite/FKM; Nominal diameter 25mm; Length 46mm; Steam applications Max. 15bar/198°C; Single acting actuator; Control pressure 4...8bar; Actuator PAS1003

BA082-20-S2

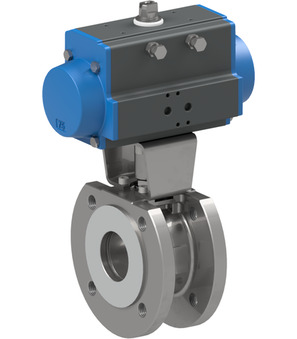

flanged ball valve with pneumatic actuator; flange ANSI150; housing, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 4...8bar; medium temperature -20...+160°C; pressure range 0..20bar; nominal diameter 20mm; length 40mm; actuator PAS1003

BA146-32-D0-01

STASTO Combination#br#Ball valve with pneumatic actuator; Butt weld ends Long; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 306mm; Actuator PAD052; Limit switch box EB0X03; 5/2-way solenoid valve - NAMUR type ABS54; 24VDC-LED

BA110-25-S0-A

Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body, Ball 1.4408; Ball seal PTFE-graphite reinforced; Stem seal Graphoil/FKM/PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 25mm; Pressure range 0-15bar; Flange PN40; Length 125mm; Actuator PAS0855

BA110-25-T0-A

flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1 R27; housing, ball AISI 316; ball seal PTFE-graphite reinforced; stem seal Graphoil/FKM/PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; nominal diameter 25mm; pressure range 0-15bar; flange PN40; length 125mm; actuator PAS0855; safety position NO

BA080-10-PH

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1"; DN 25mm; Pressure range 0-40bar; Length 90mm; Operating time 10s; Voltage 100-240VAC; NC-Accumulator for safety position

BA168-34-T0-H-ABS53-EPC23050-1

BA168-34-T0-H
Ball valve with pneumatic actuator; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; G 3/4"; Nominal diameter 20mm; Pressure range 0-100bar; Length 72mm; Actuator PAS0855; Oil and grease-free design for hydrogen Safety position NO
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
EPC23050-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 230V/50-60Hz

BA033-12-CL

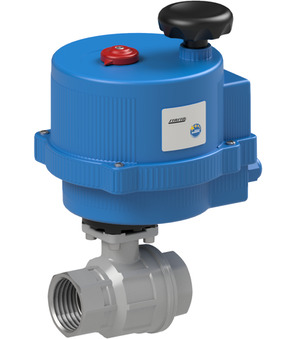

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; DN 15mm; Pressure range 0-64bar; Length 65mm; Operating time 10s; Voltage 24VAC/DC; For a maximum of 100 operations a day; Special version: Incl. Positioner 4-20mA/0-10V

BARB-050-CITV-D0

Ball valve with pneumatic rotary actuator 75 double-acting, body 1.0432, ball 1.4308, flange PN 40 connection DN50

BA080-212-D0-01

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-25bar; Length 165mm; Actuator PAD063; Incl. ABS51-24VDC-UL Approval

BA034-15-CL

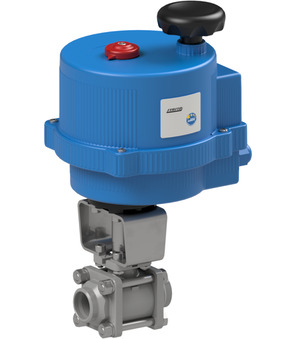

Ball valve with electrical actuator; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; DN 15mm; Pressure range 0-64bar; Length 65mm; Operating time 8s; Voltage 24VAC/DC; Positioner 4-20mA/0-10V

BA080-34-CH

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 10s; Voltage 100-240VAC; With integrated positioner 4-20mA/0-10V

BAH1-004-SSKV-D001

High-pressure ball valve PN400, 1/2", DN13 with double-acting pneumatic actuator 63 body and ball 1.4571, seal PEEK/FKM, for hydraulic fluids incl. limit switch box connection G1/2"

BA033-14-CL

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; For a maximum of 100 operations a dayMedium temperature -20...+160°C; RP 1/4"; DN 8mm; Pressure range 0-64bar; Length 57mm; Incl. Positioner 4-20mA/0-10V; Operating time 8s; Voltage 24VAC/DC; Protection class IP67

BA081-34-PH

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 3/4"; DN 20mm; Pressure range 0-64bar; Length 78mm; Operating time 10s; Voltage 100-240VAC; NC-Accumulator for safety position

BA341-25-S0-A

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Body Ball 1.4401; Seals Fibre-glass-reinforced PTFE Thickness Reduced/FFKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 46mm; Actuator PAS0855

BA368-32-S0-A

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Nominal diameter 32mm; Pressure range 0...40bar; Flange PN40; Length 130mm; Actuator PAS0635
