Ball valves - automatically operated

STASTO Allgemeine Preisliste (EUR)
BA452-S080-S0
Ball valve with pneumatic actuator; Material PVC; Seals PTFE/FPM; Single acting actuator; Control pressure 5,5...8bar; Solvent cement socket 90mm; Nominal diameter 80mm; Pressure range 0-10bar; Actuator PAS0855

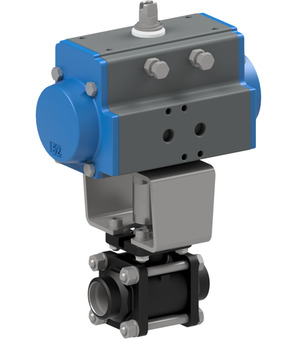

BA397-40-S0-A
Ball valve with pneumatic actuator Series BA397-S-A; ATEX II 2 G/D c T3; Butt weld ends; Three-parts type; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FFKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm; Actuator PAS0855

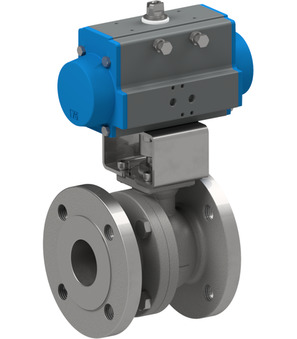

BA261-25-S0-A-01
flanged ball valve with pneumatic actuator; ATEX II 2 G/D; fire-safe; TA-Luft; body, ball AISI 316; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0...40bar; flange PN40; length 57mm; actuator PAS0855; Oil and grease-free design for hydrogen and oxygen; ATEX II 2G Ex h IIC T6...T1 Gb and II 2D Ex h IIIC T85°C...T450°C Db

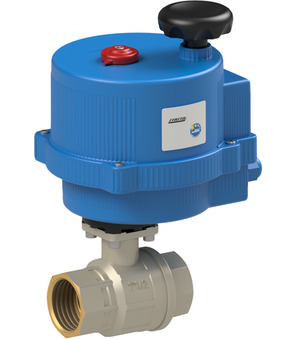

BA080-114-PL
Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 11/4"; DN 40mm; Pressure range 0-40bar; Length 104mm; Operating time 8s; Voltage 24VAC/DC; NC-Accumulator for safety position
BAC1-009-CITV-S1
Ball valve with pneumatic actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 3...8bar; Medium temperature -10...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Actuator PAS1251
BA146-25-S0-01
STASTO Combination#br#Ball valve with pneumatic actuator; Butt weld ends Long; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 292mm; Actuator PAS0635; Limit switch box EB0X03; 5/2-way solenoid valve - NAMUR type ABS54; 24VDC-LED
BA051-20-D0-0
Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body, Ball 1.4408; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Flange PN40; Length 120mm; Actuator PAD075; Free of oil and grease for oxygen
VB190-L-P0T
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67; Feedback via potentiometer
BA029-40-S2
Ball valve with pneumatic actuator; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS1155
BA030-40-S2
Ball valve with pneumatic actuator; Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -10...+160°C; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS1153
BA082-40-S0
Flanged ball valve with pneumatic actuator; Flange ANSI160; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS0855
MTS45-0EAE13
Pneumatic actuator; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 10bar; Flange ISO5211 F07/F10; Female square 22mm
BA261-25-S0-AH3C
Flanged ball valve with pneumatic actuator; Series BA261-S0-AH3C; Fire-Safe/Antistatik According to ATEX/TA−Luft; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 57mm; Actuator PAS0855; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA261-25-T0-AH3C
Flanged ball valve with pneumatic actuator; Series BA261-T0-AH3C; Fire-Safe/Antistatik According to ATEX/TA−Luft; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 57mm; Actuator PAS0855; Safety position NO; Free of oil and grease for hydrogen; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
BA149-050-D0-01
Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE-Graphite reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Nominal diameter 50mm; Pressure range 0-40bar; Flange PN40; Length 150mm; Actuator PAD085

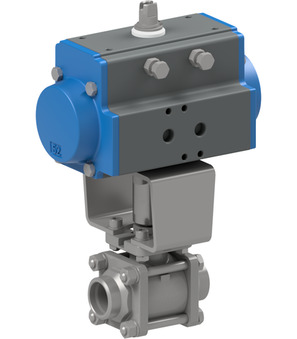

BA740-20-S0-A
ball valve with pneumatic actuator; ATEX II 2 G/D c T3; welding ends; welding ends ISO 1127 26,9 x 1,65; three-parts type; housing, ball AISI 316; seals PTFE/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0...40bar; length 106mm; actuator PAS0755
BAC4-008-SSTV-D201
Ball valve, 3-piece, weld-on, DN40 body and ball 1.4401, seal PTFE/FKM with mounted pneumatic rotary actuator 75 (control pressure 4bar) with mounted limit switch box EB0X13 11/2"
BA081-20-S0-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 135mm; Actuator FS0040N40Q14
BA080-114-CL
Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 11/4"; DN 32mm; Pressure range 0-40bar; Length 102mm; Operating time 10s; Voltage 24VAC/DC; With integrated positioner 4-20mA/0-10V
BA261-25-S0-A-02
Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Body, Ball 1.4408; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 57mm; Actuator PAS0855; With control ball V30-60
