Ball valves - automatically operated

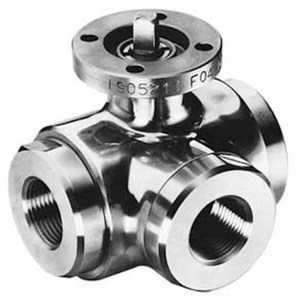

Ball valve made of stainless steel; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; G 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 102mm; Ball L; Flange ISO5211 F05; Square 14mm, Incl. inspection certificate 3.1 For pressure, function and tightness; FDA-approved

BAT1-006-TSTV-BD

Ball valve, 3-way version, G 1" fourfold sealing, body and ball stainless steel 1.4401 seals PTFE/FKM, full bore, T-port flange for actuator mounting F05-14mm

VB030-L-UL

Electric actuator VB030, 24VAC/DC rotation angle 0-90°, flange F03/05, SW11, rated torque 30Nm UL approval

BA091-25-D0-02

Ball valve with pneumatic actuator; Butt weld ends; Body; Ball 1.4401; Seals PTFE Graphite reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Compensation hole; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAD075

BA391-114-D0-AB-01

ball valve with pneumatic actuator; ATEX II 2 G/D; female thread; housing, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0-64bar; length 100mm; V-ball 30-60°; actuator PAD052

BA040-025-T0

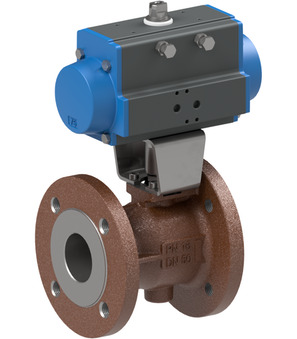

Flanged ball valve with pneumatic actuator; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 125mm; Length EN558-1 R14; Actuator PAS0635; Safety position Open

3900000088

Limit switch box For actuator PAD/PAS52-100; Incl. 2 limit switches OPEN/CLOSED; P+F SJ3,5-N 2; ATEX Ex II 2 G/D EEx ia IIC T6

BA235-14-D0

Ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM-Special; Double acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -45...+150°C; G 1/4"; Nominal diameter 12mm; Pressure range 0…100bar; Length 72mm; Actuator PAD052-L; Ball L

BARB-015-SSTV-D0

Ball valve with pneumatic rotary actuator 32 double-acting, body 1.4401, ball 1.4401, flange PN 40 connection DN15

BA033-12-0R

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; DN 15mm; Pressure range 0-64bar; Length 65mm; Operating time 9s; Voltage 24...240VAC / 24...135VDC

BA435-15-S0-A-01

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to ANSI B16.10; Full bore; Body Steel A352-LCB, Ball 1.4301; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Medium temperature -40...+180°C; Nominal diameter 15mm; Pressure range 0...20bar; Flange ANSI150; Length 108mm; Single acting actuator; Control pressure 5,5...8bar; Actuator PAS0525-L

BA092-20-D0

Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 20mm; Pressure range 0...20bar; Flange ANSI150; Length 117mm; Actuator PAD052

BA236-14-D0

ball valve with pneumatic actuator; female thread 3-way-type; sealing on two sides; pressure inlet just in front; housing, ball steel; seals POM/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; pressure range 0...500bar; G 1/4"; nominal diameter 6mm; length 69mm; actuator PAD063; ball L

EB0X50

Mounted limit switch box; IP65; 2 Proximity switch; Suitable for Actuators PAD/PAS052-270; Switching capacity 8VDC/3mA; Switch type P&F SJ3,5-SN; Function NC-Namur-ATEX; Material of case Aluminum; Cable gland M20x1,5; Temperature range -25...+85°C; Including visual indication; ATEX II2G Ex ia IIC T6 Gb

BA080-10-S2-01

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; Actuator PAS0633; Mounted pilot valveConnector size 22mm; 3/2-way solenoid valve - NAMUR type (NM32W1S-PR); 24VDC

BA486-38N-S0-AH

Ball valve with pneumatic actuator; ATEX II 2 G/D Female thread; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+150°C; Connection 3/8"NPT; Nominal diameter 10mm; Pressure range 0-100bar; Length 52mm; Actuator PAS0635; Free of oil and grease for hydrogen

BA486-38N-S0-AH3C

350.313

Ball valve with pneumatic actuator; Female thread; Body Brass; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5bar; Medium temperature -20...+70°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-40bar;

BA078-25-D0-A-02

Ball valve with pneumatic actuator; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE Graphite reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+198°C; Compensation hole; Nominal diameter 25mm; Pressure range 0…15bar; Length 92mm; Actuator PAD075; ATEX/Antistatic
