Ball valves - automatically operated

STASTO Allgemeine Preisliste (EUR)

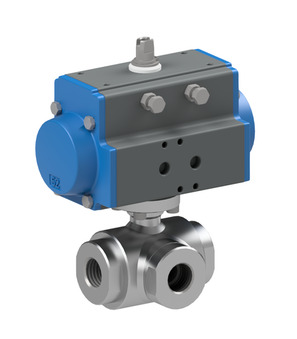

BA580-34-S0
Ball valve with pneumatic actuator; 3-way-type; Ball is sealed on all sides; Body 1.4404 Polished; Ball 1.4404; Seals PTFE; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Female thread 3/4NPT"; Nominal diameter 20mm; Pressure range 0...40bar; Length 92mm; Actuator PAS0855; Ball L
BA580-34-S0-A
Ball valve with pneumatic actuator; ATEX II 2 G/D T4; 3-way-type; Ball is sealed on all sides; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; Female thread 3/4"NPT; Nominal diameter 20mm; Pressure range 0...100bar; Length 92mm; Actuator PAS0855; Ball L; ATEX-design
BA583-150-D0
Flanged ball valve with pneumatic actuator; ATEX II 2G/D c T3; TA-Luft;; Length According to EN558−1 R27; Body, Ball 1.4408; Seals TFM-PTFE/HNBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+150°C; Nominal diameter 150mm; Pressure range 0-16bar; Flange PN16; Length 350mm; Actuator PAD140
BA583-200-D0
Flanged ball valve with pneumatic actuator; ATEX II 2G/D c T3; TA-Luft;; Length According to EN558−1 R27; Body, Ball 1.4408; Seals TFM-PTFE/HNBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+150°C; Nominal diameter 200mm; Pressure range 0-16bar; Flange PN16; Length 400mm; Actuator PAD160
BA583-300-D0
Flanged ball valve with pneumatic actuator; ATEX II 2G/D c T3; TA-Luft;; Length According to EN558−1 R27; Body, Ball 1.4408; Seals TFM-PTFE/HNBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+150°C; Nominal diameter 300mm; Pressure range 0-16bar; Flange PN16; Length 500mm; Actuator PAD230
BA587-100-0H
Flanged ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Medium temperature 0...+100°C; Nominal diameter 100mm; Length 286mm; Pressure range 0…16bar; Welding ends ISO 1127 114,3x2; Operating time 27s; Voltage 100-240VAC; Ball L
BA587-50-S0
Flanged ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body 1.4404; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 182mm; Pressure range 0...40bar; Welding ends ISO 1127 60,3x2; Actuator PAS1155; Ball L
BA596-20-S0-A-01
Flanged ball valve; Fire-Safe/Antistatik According to ATEX II 2 G/D c T3/TA-Luft; Length According to ASME B16.10; Full bore; Flange ANSI 600; Body, Ball 1.4408; Seals Reinforced PTFE/FKMLow temperature design -29...+180°C; Pressure range 0...100Bar; Nominal diameter 20mm; Length 190mm; Single acting actuator; Control pressure 5,5...8bar; Actuator PAS10005
BA599-50-D0-A-3C-01
Ball valve with pneumatic actuator; Full bore; Body, Ball 1.4404; Seals PTFE/FKM; Medium temperature -20...+160°C; Welding ends DIN11850 53x1,5; Nominal diameter 50mm; Pressure range 0…25bar; Length 165mm; ATEX-design EX II 2 G-D T4; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-Approval; Double acting actuator PAD085; Control pressure 5,5...8bar
BA599-80-D0-A-3C-01
Ball valve with pneumatic actuator; Full bore; Body, Ball 1.4404; Seals PTFE/FKM; Medium temperature -20...+160°C; Welding ends DIN11850 85x2; Nominal diameter 80mm; Pressure range 0…16bar; Length 208mm; ATEX-design EX II 2 G-D T4; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; FDA-Approval; Double acting actuator PAD115; Control pressure 5,5...8bar
BA608-10-D0
Ball valve with pneumatic actuator; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body, Ball 1.4571; Seals POM/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; G 1"; Nominal diameter 25mm; Pressure range 0-315bar; Length 113mm; Actuator PAD115; Ball L
BA608-38-D0
Ball valve with pneumatic actuator; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body, Ball 1.4571; Seals POM/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; G 3/8"; Nominal diameter 10mm; Pressure range 0-500bar; Length 72mm; Actuator PAD063; Ball L
BA611-125-D0
Flanged ball valve with pneumatic actuator; Reduced bore; Flange PN100; Zinc plated steel; Ball Stainless steel; Seals POM/FPM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...100bar; Nominal diameter 100mm; Length EN558-1; Actuator PAD140
BA611-125-S0
Flanged ball valve with pneumatic actuator; Reduced bore; Flange PN100; Zinc plated steel; Ball Stainless steel; Seals POM/FPM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...100bar; Nominal diameter 100mm; Length EN558-1; Actuator PAS2005
BA611-32-CL
flanged ball valve with electrical actuator; flange PN100; housing zinc plated steel; ball stainless steel; seals POM/FPM; medium temperature -10°C...+90°C; nominal diameter 32mm, length 180mm; operating time 27s; voltage 24VAC/DC; with integrated positioner 4-20mA/0-10V
BA612-40-0L
Flanged ball valve with electrical actuator; Body Zinc plated steel; Ball Hard chrome plated steel; Seals POM/FPM; DN 40mm; Pressure range 0-63bar; Flange PN63; Length 200mm; Operating time 27s; Voltage 24VAC/DC
BA613-38-B
High pressure ball valve; 3-way-type; Female thread; Zinc plated steel; Seals PEEK/FKM; G 3/8"; Nominal diameter 10mm; Pressure range 0-500bar; Ball T; For mounting an actuator F05, SW14
BA614-12-L
High pressure ball valve; Female thread; Body Steel; Ball Hard chrome plated brass; Seals PTFE/FKM; Medium temperature -20...+60°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...16bar; Length 75mm; DVGW-gas-approved
BA617-14-0L-01
High pressure ball valve With electric actuator VB060; Female thread; Body 1.4571; Seals POM/FPM; Medium temperature -10...+90°C; G 1/4"; Nominal diameter 10mm; Pressure range 0-500bar; Operating time 9s; Voltage 24VAC/DC
BA617-38-0L-01
High pressure ball valve With electric actuator VB060; Female thread; Body 1.4571; Seals POM/FPM; Medium temperature -10...+90°C; G 3/8"; Nominal diameter 10mm; Pressure range 0-500bar; Operating time 9s; Voltage 24VAC/DC
