ball valve with pneumatic actuator series BA387-D0-A; ; ATEX II 2 G/D; full bore; two-parts type; female thread; body, ball AISI 316; seals PTFE-reinforced with carbographite/FFKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; RP 3/4"; nominal diameter 20mm; pressure range 0...105bar; length 79mm; actuator PAD063

high pressure ball valve with electric actuator; male thread according to ISO 8434-1 (DIN 2353); body AISI 316Ti; ball AISI 316Ti hard chrome plated; seals POM/NBR; with erosion protection ring; medium temperature -30...+100°C; connection 8S/M16x1,5; DN 4mm; pressure range 0-500bar; length 73mm; operating time 8s; voltage 24VAC/DC

Ball valve with electric actuator; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; medium temperature -20...+160°C; nominal diameter 80mm; length 260mm; pressure range 0…16bar; flange PN16; ball T; operating time 27s; voltage 24VAC/DC; incl. positioner 4-20mA/0-10V

BA599-50-B-3E
ball valve made of stainless steel; full bore; body, ball AISI 316L; seals PTFE/FKM; medium temperature -20...+160°C; welding ends DIN11850 53x1,5; nominal diameter 50mm; pressure range 0…25bar; length 165mm; with bare shaft; flange ISO 5211; F05; SW14; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; FDA-approval
PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
ABS53-C001-03-C002-31-LV-2
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic

ball valve; 3-way-type; sealing on four ports; full bore; body, ball AISI 316L; seals PTFE/FKM; medium temperature -20...+170°C; Tri-Clamp connection 2" DIN 32676 TAB.2 REIHE A;nominal diameter 50mm; pressure range 0-40bar; ball L; length 182mm; flange ISO5211 F07; square 17mm; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; FDA-approval

BA599-65-B-3E
ball valve made of stainless steel; full bore; body, ball AISI 316L; seals PTFE/FKM; medium temperature -20...+160°C; welding ends DIN11850 70x2; nominal diameter 65mm; pressure range 0…25bar; length 191mm; with bare shaft; flange ISO 5211; F07; SW17; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; FDA-approval
PAD075
pneumatic actuator series PAD; ATEX II 2 G/D c T6; double acting; rotation angle 90°; according to ISO 5211/NAMUR; operating pressure range max. 8bar; diameter 75mm; flange ISO5211 F05/F07; female square 17mm; torque at 5,5bar 66Nm
ABS53-C001-03-C002-31-LV-2
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

Flanged ball valve with handwheel gearbox series BA051-G-A0; ATEX II 2 G/D; fire-safe; TA-Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; medium temperature -20...+60°C; free of oil and grease for oxygen; nominal diameter 250mm; pressure range 0...16bar; flange PN16; length 450mm

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 1/2"; DN 15mm; pressure range 0-40bar; length 67mm; actuator VB030-H; operating time 8s; voltage 100-240VAC

electrical actuator; max. torque 150Nm; operating time 32...320 seconds; flange ISO5211-F05/F07/F10; AF 17mm; voltage 24VDC; protection class IP67; S2-15min.; S4-50%

flanged ball valve with pneumatic actuator series BA051; ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; Fire-Safe; TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T85°C Db; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0...40bar; flange PN40; length 130mm; actuator PAS0635; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

flanged ball valve with pneumatic actuator; flange acc. to ANSI 150; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...20bar; nominal diameter 150mm; length 232mm; actuator PAS1255

BA074-150-S0
flanged ball valve with pneumatic actuator; flange acc. to ANSI 150; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...20bar; nominal diameter 150mm; length 232mm; actuator PAS1255
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01-WSTHVB
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic; mounting bridge stainless steel

flanged ball valve with pneumatic actuator; flange acc. to ANSI 150; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...20bar; nominal diameter 25mm; length 46mm; actuator PAS0635-B; safety position NO

BA074-25-T0
flanged ball valve with pneumatic actuator; flange acc. to ANSI 150; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+160°C; pressure range 0...20bar; nominal diameter 25mm; length 46mm; actuator PAS0635-B; safety position NO
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

inspection certificate EN-10204-3.1; for material, pressure, function and tightness

limit switch box; IP65; 4 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/230VAC; switch type Crouzet 83.161.301; contact material silver-nickel; material of case aluminum; including visual indication

limit switch box; IP65; 4 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/230VAC; switch type Crouzet 83.161.301; contact material silver-nickel; material of case aluminum; including visual indication

mounting bracket; for butterfly valve in food-grade version; F05/F07-F05; bolt 8-14

mounting bracket; for butterfly valve in food-grade version; F05/F07-F05; bolt 8-17

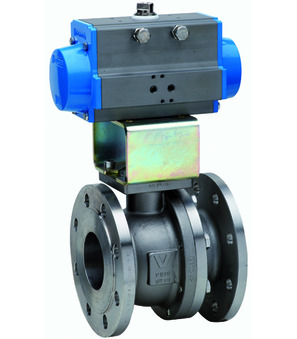

flanged ball valve with pneumatic actuator; Fire-Safe/antistatic according to ATEX/TA−Luft; Overall length according to EN558−1 R27; body, ball AISI 316; ball seal PTFE-graphite reinforced; stem seal Graphoil/FKM/PTFE; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; nominal diameter 25mm; pressure range 0-15bar; flange PN40; length 125mm; actuator PAS0855; safety position NO; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
