Ball valves - automatically operated

STASTO Allgemeine Preisliste (EUR)

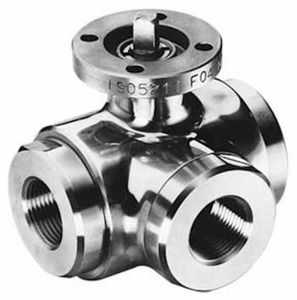

BA542-114-B-A0
Ball valve made of stainless steel Series BA541-A0, BA542-A0; ATEX II 2 G/D c T4; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+60°C; Free of oil and grease for oxygen; G 11/4"; Nominal diameter 32mm; Pressure range 0…64bar; Length 118mm; Ball L; Flange ISO5211 F07; Square 17mm
To Series: Ball valve made of stainless steel Series BA541-A0, BA542-A0
Female thread DN Length Square Flange ISO5211 Ball Pressure range Design Type
G 1 1/4" 32 mm 118 mm 17 mm F07 L 0...64 bar ATEX BA542-114-B-A0
Pneumatic actuator Series PAD-180

Pneumatic actuator Series PAD-180

ATEX II 2 G/D; Double acting; Rotation angle 180°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar

To Series: Pneumatic actuator Series PAD-180
Grundversion
Diameter Flange ISO5211 Female square Torque at 5,5bar Design Type Sequence
52 mm F03/F05 11 mm 20 Nm ATEX PAD052-180 26190000
75 mm F05/F07 17 mm 66 Nm ATEX PAD075-180 26190001
63 mm F05/F07 14 mm 36 Nm ATEX PAD063-180 26190002
85 mm F05/F07 17 mm 96 Nm ATEX PAD085-180 26190003
100 mm F07/F10 17 mm 150 Nm ATEX PAD100-180 26190004
115 mm F07/F10 22 mm 249 Nm ATEX PAD115-180 26190005
125 mm F07/F10 22 mm 327 Nm ATEX PAD125-180 26190006
140 mm F10/F12 27 mm 451 Nm ATEX PAD140-180 26190007

High pressure ball valve Series BA230-B

Female thread; Body, Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C
To Series: High pressure ball valve Series BA230-B
Grundversion
Female thread DN Length Pressure range Type Sequence
G 1 1/4" 32 mm 111 mm 0...420 bar BA230-114-B 26200000
G 2" 48 mm 140 mm 0...420 bar BA230-20-B 26200001
BA230-40-B
High pressure ball valve; Flange connection DN40; DIN 3202-F1; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; Nominal diameter 40mm; Pressure range 0...320bar; Length 200mm; Drilled for mounting an actuator
To Series: High pressure ball valve Series BA230-B
DN Length Pressure range Type
40 mm 200 mm 0...320 bar BA230-40-B

High pressure ball valve Series BA230-L/S-B

Male thread According to ISO 8434-1 (DIN 2353); Body, Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C
To Series: High pressure ball valve Series BA230-L/S-B
Grundversion
Male thread DN Length Type Pressure range Type Sequence
M52x2 32 mm 148 mm 38S 0...420 bar BA230-38S-B 26220000
M52x2 40 mm 147 mm 42L 0...420 bar BA230-42L-B 26220001
Ball valve with pneumatic actuator Series BA069-D

Ball valve with pneumatic actuator Series BA069-D

Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C

To Series: Ball valve with pneumatic actuator Series BA069-D
Grundversion
Female thread DN Length Pressure range Design Type Sequence
RP 1/4" 8 mm 55 mm 0...140 bar - BA069-14-D0 26230000
RP 1/4" 8 mm 55 mm 0...140 bar - BA069-14-D0-B 26230001
RP 1/2" 15 mm 66 mm 0...140 bar - BA069-12-D0 26230002
RP 1/2" 15 mm 66 mm 0...140 bar - BA069-12-D0-B 26230003
RP 1/2" 15 mm 66 mm 0...140 bar ATEX BA069-12-D0-AB 26230004
RP 3/4" 20 mm 79 mm 0...105 bar - BA069-34-D0 26230005
