STASTO fittings: High-quality valves, fittings and accessories for your applications

Products

Armatures

21IH7K1V350-GDV-GDV14024DY-C003-32-LV-2

21IH7K1V350-GDV

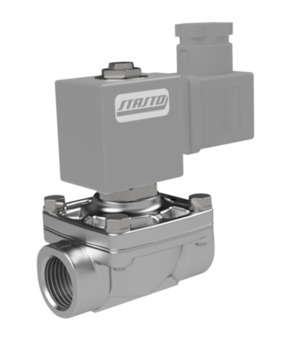

2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDV14024DY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 24V/50-60Hz; Approval CSA/UL/VDE
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

To Series: 2/2-way solenoid valve Series 21IH

Female thread	DN	Length	Pressure AC	Pressure DC	Medium temperature	Voltage	Voltage type	Design	Approval	Type
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	24V/50-60Hz	-	With integrated LED-yellow and VDR	UL/CSA/VDE	21IH7K1V350-GDV-GDV14024DY-C003-32-LV-2

21HF8K0B400-BDA08042AS-C003-32-6

21HF8K0B400

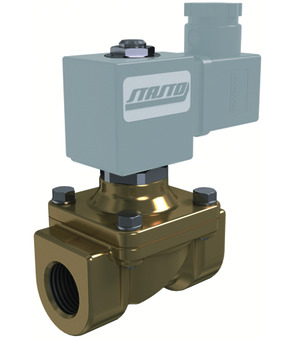

2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Length 128mm; Standard coil BDA
BDA08042AS
Coil Type BDA; Standard; Connector size 32mm; Voltage 42V/50Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21H..K0Y

Female thread	DN	Length	Pressure AC	Pressure DC	Seal	Medium temperature	Voltage	Approval	Design	Voltage type	Type
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	42V/50Hz	CE	Standard	AC	21HF8K0B400-BDA08042AS-C003-32-6

21IH7K1V350-GDV-GDV14220CS-C003-32-6

21IH7K1V350-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDV14220CS
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 220VDC; Approval CE
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21IH

Female thread	DN	Length	Pressure AC	Pressure DC	Medium temperature	Voltage	Voltage type	Design	Approval	Type
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	220VDC	-	Standard	CE	21IH7K1V350-GDV-GDV14220CS-C003-32-6

21HF8K0B400-BDA08042AS-C003-31-CV20-6

21HF8K0B400
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Length 128mm; Standard coil BDA
BDA08042AS
Coil Type BDA; Standard; Connector size 32mm; Voltage 42V/50Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21H..K0Y

Female thread	DN	Length	Pressure AC	Pressure DC	Seal	Medium temperature	Voltage	Approval	Design	Voltage type	Type
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	42V/50Hz	CE	With moulded PVC-cable (2 m)	AC	21HF8K0B400-BDA08042AS-C003-31-CV20-6

21IH7K1V350-GDV-GDV14220CS-C003-31-CV20-6

21IH7K1V350-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDV14220CS
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 220VDC; Approval CE
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21IH

Female thread	DN	Length	Pressure AC	Pressure DC	Medium temperature	Voltage	Voltage type	Design	Approval	Type
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	220VDC	-	With moulded PVC-cable (2 m)	CE	21IH7K1V350-GDV-GDV14220CS-C003-31-CV20-6

21HF8K0B400-BDA08048AS-C003-32-6

21HF8K0B400
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Length 128mm; Standard coil BDA
BDA08048AS
Coil Type BDA; Standard; Connector size 32mm; Voltage 48V/50Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21H..K0Y

Female thread	DN	Length	Pressure AC	Pressure DC	Seal	Medium temperature	Voltage	Approval	Design	Voltage type	Type
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	48V/50Hz	CE	Standard	AC	21HF8K0B400-BDA08048AS-C003-32-6

21IH7K1V350-GDV-GDV14220CS-C003-32-LV-1

21IH7K1V350-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDV14220CS
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 220VDC; Approval CE
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

To Series: 2/2-way solenoid valve Series 21IH

Female thread	DN	Length	Pressure AC	Pressure DC	Medium temperature	Voltage	Voltage type	Design	Approval	Type
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	220VDC	-	With integrated LED-yellow and VDR	CE	21IH7K1V350-GDV-GDV14220CS-C003-32-LV-1

21HF8K0B400-BDA08048AS-C003-31-CV20-6

21HF8K0B400
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Length 128mm; Standard coil BDA
BDA08048AS
Coil Type BDA; Standard; Connector size 32mm; Voltage 48V/50Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21H..K0Y

Female thread	DN	Length	Pressure AC	Pressure DC	Seal	Medium temperature	Voltage	Approval	Design	Voltage type	Type
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	48V/50Hz	CE	With moulded PVC-cable (2 m)	AC	21HF8K0B400-BDA08048AS-C003-31-CV20-6

21IH7K1V350-GDV-GDV14110AY-C003-32-6

21IH7K1V350-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDV14110AY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 110V/50Hz,120V/60Hz; Approval CSA/UL/VDE
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21IH

Female thread	DN	Length	Pressure AC	Pressure DC	Medium temperature	Voltage	Voltage type	Design	Approval	Type
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	110V/50Hz, 120V/60Hz	-	Standard	UL/CSA/VDE	21IH7K1V350-GDV-GDV14110AY-C003-32-6

21HF8K0B400-BDA08110DS-C003-32-6

21HF8K0B400
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Length 128mm; Standard coil BDA
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21H..K0Y

Female thread	DN	Length	Pressure AC	Pressure DC	Seal	Medium temperature	Voltage	Approval	Design	Voltage type	Type
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	110V/50-60Hz	CE	Standard	AC	21HF8K0B400-BDA08110DS-C003-32-6

21IH7K1V350-GDV-GDV14110AY-C003-31-CV20-6

21IH7K1V350-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDV14110AY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 110V/50Hz,120V/60Hz; Approval CSA/UL/VDE
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21IH

Female thread	DN	Length	Pressure AC	Pressure DC	Medium temperature	Voltage	Voltage type	Design	Approval	Type
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	110V/50Hz, 120V/60Hz	-	With moulded PVC-cable (2 m)	UL/CSA/VDE	21IH7K1V350-GDV-GDV14110AY-C003-31-CV20-6

21HF8K0B400-BDA08110DS-C003-31-CV20-6

21HF8K0B400
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Length 128mm; Standard coil BDA
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21H..K0Y

Female thread	DN	Length	Pressure AC	Pressure DC	Seal	Medium temperature	Voltage	Approval	Design	Voltage type	Type
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	110V/50-60Hz	CE	With moulded PVC-cable (2 m)	AC	21HF8K0B400-BDA08110DS-C003-31-CV20-6

21IH7K1V350-GDV-GDV14110AY-C003-32-LV-1

21IH7K1V350-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDV14110AY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 110V/50Hz,120V/60Hz; Approval CSA/UL/VDE
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

To Series: 2/2-way solenoid valve Series 21IH

Female thread	DN	Length	Pressure AC	Pressure DC	Medium temperature	Voltage	Voltage type	Design	Approval	Type
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	110V/50Hz, 120V/60Hz	-	With integrated LED-yellow and VDR	UL/CSA/VDE	21IH7K1V350-GDV-GDV14110AY-C003-32-LV-1

21HF8K0B400-BDA08110DS-C003-32-LV-1

21HF8K0B400
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Length 128mm; Standard coil BDA
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

To Series: 2/2-way solenoid valve Series 21H..K0Y

Female thread	DN	Length	Pressure AC	Pressure DC	Seal	Medium temperature	Voltage	Approval	Design	Voltage type	Type
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	110V/50-60Hz	CE	With integrated LED-yellow and VDR	AC	21HF8K0B400-BDA08110DS-C003-32-LV-1

21IH7K1V350-GDV-GDV14230AY-C003-32-6

21IH7K1V350-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDV14230AY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz; Approval CSA/UL/VDE
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21IH

Female thread	DN	Length	Pressure AC	Pressure DC	Medium temperature	Voltage	Voltage type	Design	Approval	Type
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	230V/50Hz-240V/60Hz	-	Standard	UL/CSA/VDE	21IH7K1V350-GDV-GDV14230AY-C003-32-6

21HF8K0B400-BDV08230AY-C003-32-6

21HF8K0B400
2/2-way solenoid valve series 21H..K0Y; combined operated; NC; body brass; stainless steel tube; seal NBR; medium temperature -10...+90°C; connector size 32mm; G 11/2"; DN 40mm; pressure AC 0-16bar; length 128mm; standard coil BDA
BDV08230AY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 230V/50Hz, 240V/60Hz
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

To Series: 2/2-way solenoid valve Series 21H..K0Y

Female thread	DN	Length	Pressure AC	Pressure DC	Seal	Medium temperature	Voltage	Approval	Design	Voltage type	Type
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	230V/50Hz-240V/60Hz	UL/CSA/VDE	Standard	AC	21HF8K0B400-BDV08230AY-C003-32-6

2/2-way solenoid valve Series 21IH

Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm

To Series: 2/2-way solenoid valve Series 21IH

Varianten

Female thread	DN	Length	Pressure AC	Pressure DC	Medium temperature	Voltage	Voltage type	Design	Approval	Type	Sequence
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	230V/50Hz-240V/60Hz	-	With moulded PVC-cable (2 m)	UL/CSA/VDE	21IH7K1V350-GDV-GDV14230AY-C003-31-CV20-6	20180206
G 1 1/4"	35 mm	128 mm	0...14 bar	0...2 bar	-10...+140 °C	230V/50Hz-240V/60Hz	-	With integrated LED-yellow and VDR	UL/CSA/VDE	21IH7K1V350-GDV-GDV14230AY-C003-32-LV-1	20180207

2/2-way solenoid valve Series 21H..K0Y

Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm

To Series: 2/2-way solenoid valve Series 21H..K0Y

Varianten

Female thread	DN	Length	Pressure AC	Pressure DC	Seal	Medium temperature	Voltage	Approval	Design	Voltage type	Type	Sequence
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	220-230V/50-60Hz	CE	-	AC	21HF8K0B400-BDA08223DS-C003-31-6	20180207
G 1 1/2"	40 mm	128 mm	0...16 bar	-	NBR	-10...+90 °C	220-230V/50-60Hz	CE	With moulded PVC-cable (2 m)	AC	21HF8K0B400-BDA08223DS-C003-31-CV20-6	20180208
