STASTO fittings: High-quality valves, fittings and accessories for your applications

Armatures

Flanged ball valve; Flange ANSI300; Flange thread Metrical; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM-Special; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 80mm; Length 122mm

To Series: Flanged ball valve Series BA112

DN	Length	Type
80 mm	122 mm	BA867-80-L

BA069-12-LLD-3C

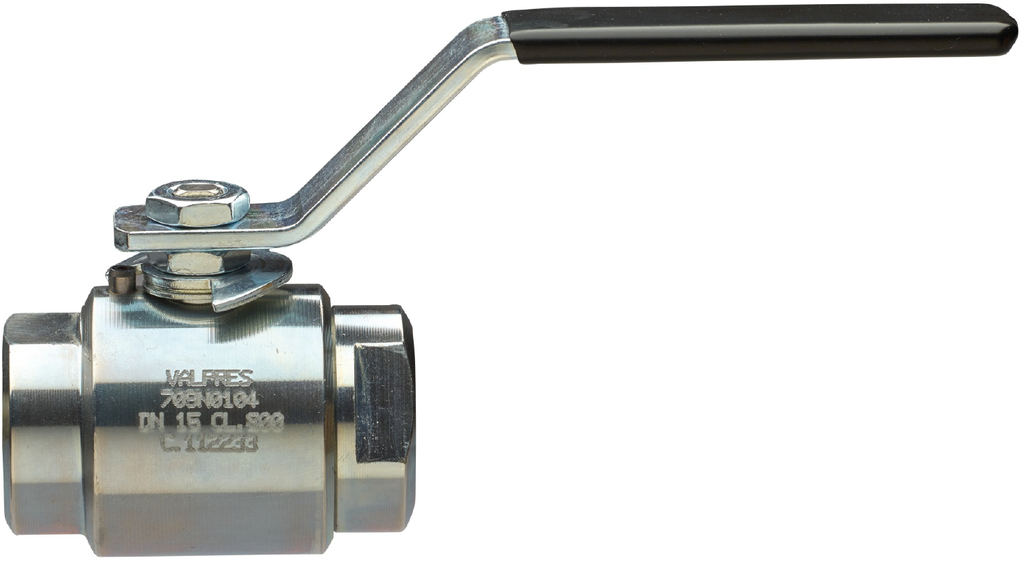

Ball valve made of stainless steel Series BA069-LD; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; With locking device;Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Connection Rp 1/2"; Nominal diameter 15mm; Pressure range 0...140bar; Length 66mm

To Series: Ball valve made of stainless steel Series BA069-LD

Connection	DN	Length	Pressure range	Type
RP 1/2"	15 mm	66 mm	0...140 bar	BA069-12-LLD-3C

Flanged ball valve Series BA261-L-A

ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C

To Series: Flanged ball valve Series BA261-L-A

Grundversion

DN	Length	Flange	Pressure range	Design	Type	Sequence
25 mm	57 mm	PN40	0...40 bar	ATEX	BA261-25-L-A	24870000
25 mm	57 mm	PN40	0...40 bar	ATEX	BA261-25-L-A3C	24870001
25 mm	57 mm	PN40	0...40 bar	ATEX	BA261-25-L-A-03	24870002
25 mm	57 mm	PN40	0...40 bar	ATEX	BA500-25-L-A	24870003
25 mm	57 mm	PN40	0...40 bar	ATEX	BA828-25-L-A	24870004
25 mm	57 mm	PN40	0...40 bar	ATEX	BA901-25-L-A	24870005

Flanged ball valve Series BA752

Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/EPDM; Pressure range 0...16bar; Medium temperature -20...+160°C; With additional compensation hole in the ball

To Series: Flanged ball valve Series BA752

Grundversion

DN	Length	Type	Sequence
25 mm	46 mm	BA752-25-L	24880000
50 mm	82 mm	BA752-50-L	24880001

Flanged ball valve Series BA497-L-A

ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Body Steel, Ball 1.4301; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Medium temperature -20...+180°C

To Series: Flanged ball valve Series BA497-L-A

Grundversion

Length	Flange	Pressure range	Design	Type	Sequence
64 mm	PN16/25/40	0...40 bar	ATEX	BA497-20-L-A	24890000
44 mm	PN16/25/40	0...40 bar	ATEX	BA497-25-L-A	24890001
64 mm	PN16/25/40	0...40 bar	ATEX	BA497-40-L-A	24890002
-	PN16/25/40	0...40 bar	ATEX	BA497-80-L-A	24890003
64 mm	PN16/25/40	0...40 bar	ATEX	BA497-15-L-A	24890004
-	PN16/25/40	0...40 bar	ATEX	BA497-100-L-A	24890005
44 mm	PN16/25/40	0...40 bar	ATEX	BA497-32-L-A	24890006

Flanged ball valve Series BA162-AH

ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R101; Flange PN100, Full bore; Body And Ball Stainless steel AISI 316; Seals PTFE-metal reinforced/Graphoil/FKM; Pressure range 0...100bar; Medium temperature -20...+160°C;Free of oil and grease for hydrogen

To Series: Flanged ball valve Series BA162-AH

Grundversion

DN	Length	Design	Type	Sequence
25 mm	65 mm	ATEX	BA162-25-L-AH	24900000
25 mm	65 mm	ATEX	BA162-25-L-AH3C	24900001

BA469-14-L-A

Ball valve made of stainless steel Series BA469-L-A; ATEX II 2 G/D; Fire-Safe; Full bore; Two-parts type; Female thread; Body, Ball 1.4404; Seals PTFE Reinforced with carbographite; Medium temperature -20...+160°C; Nominal diameter 8mm; Pressure range 0...138 bar; Connection RP 1/4"; Length 67mm; Free of oil and grease; Class 800

To Series: Ball valve made of stainless steel Series BA469-LA
