Armatures

2/2-way solenoid valve Series SL188; Pilot-operated; NC; Body Brass; Tube Stainless steel; Seal NBR; Medium temperature -10...+80°C; G 3/8"; DN 10mm; Pressure 0,02...10bar; Length 49mm; Coil C0A1; Voltage 24VDC; ohne Gerätesteckdose

To Series: 2/2-way solenoid valve Series SL188

Female thread	DN	Length	Voltage	Pressure	Type
G 3/8"	10 mm	49 mm	24VDC	0,02...10 bar	SL188-38-A103

2/2-way solenoid valve Series SL013

Pilot-operated; NO; Piston type; Body Brass; Tube Stainless steel One-piece; Seal Fibre-glass-reinforced PTFE; Medium temperature -40...+180°C; Standard coil BDV; Connector size 32mm

To Series: 2/2-way solenoid valve Series SL013

Grundversion

Female thread	DN	Length	Pressure AC/DC	Type	Sequence
G 1/2"	13 mm	65 mm	0,9...10 bar	SL013-12	20930000
G 3/4"	19 mm	74 mm	0,9...10 bar	SL013-34	20930001
G 1"	25 mm	93 mm	0,9...10 bar	SL013-10	20930002

2/2-way solenoid valve Series SL002

Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm

To Series: 2/2-way solenoid valve Series SL002

Grundversion

Female thread	DN	Length	Voltage	Pressure	Medium temperature	Pressure AC	Pressure DC	Seal	Voltage type	Design	Approval	Type	Sequence
G 1/8"	2,0 mm	40 mm	12VDC	0...16 bar	-10...+120 °C	-	-	-	-	-	-	SL002-18-2-A05	20940000
G 1/8"	2,0 mm	40 mm	220-230V/50-60Hz	0...22 bar	-10...+120 °C	-	-	-	-	-	-	SL002-18-2-A01	20940002
G 1/4"	3 mm	40 mm	24V/50-60Hz	0...10 bar	-10...+120 °C	-	-	-	-	-	-	SL002-14-3,0-AS04	20940003
G 1/4"	4,5 mm	40 mm	24VDC	0...8 bar	-10...+140 °C	-	-	-	-	-	-	SL002-14-4,5-E03	20940004
G 1/4"	4,5 mm	40 mm	110V/50-60Hz	0...5 bar	-10...+120 °C	-	-	-	-	-	-	SL002-14-4,5-AS13	20940005
G 3/8"	4,5 mm	46 mm	24VDC	0...8 bar	-10...+140 °C	-	-	-	-	-	-	SL002-38-4,5-ES03	20940006
G 1/2"	4,5 mm	58 mm	220-230V/50-60Hz	0...5 bar	-10...+120 °C	-	-	-	-	-	-	SL002-12-4,5-AL01	20940007
G 1/2"	4,5 mm	58 mm	220-230V/50-60Hz	0...5 bar	-10...+120 °C	-	-	-	-	-	-	SL002-12-5,5-AL01	20940008
G 1/2"	5,5 mm	58 mm	24VDC	0...5 bar	-10...+140 °C	-	-	-	-	-	-	SL002-12-5,5-EL03	20940010
G 1/2"	5,5 mm	58 mm	230V/50Hz-240V/60Hz	0...10 bar	-10...+140 °C	-	-	-	-	-	-	SL002-12-5,5-ES02	20940011

Varianten

Female thread	DN	Length	Voltage	Pressure	Medium temperature	Pressure AC	Pressure DC	Seal	Voltage type	Design	Approval	Type	Sequence
G 1/8"	2,0 mm	40 mm	24VDC	-	-10...+140 °C	0...22 bar	0...16 bar	EPDM	DC	Standard	UL/CSA/VDE	SL002-18-2-E-BDV08024CY-C003-32-6	20940001

Coil Type C0D1

Connector size 32mm

To Series: Coil Type C0D1

Grundversion

Voltage	Type	Sequence
24VDC	C0D1-03	20960000
24V/50Hz	C0D1-18	20960001
230V/50Hz	C0D1-21	20960002

SL173-14-3

3/2-way solenoid valve Series SL173; Directly operated; NO; Body Brass; Tube Stainless steel; Seal NBR; Medium temperature -10...+80°C; Standard coil C0A1; Connector size 32mm; G 1/4"; DN 3/3mm; Pressure Air 0...7bar; Pressure Water 0...6bar; Length 42mm

To Series: 3/2-way solenoid valve Series SL173

Female thread	DN	Length	Type
G 1/4"	3/3 mm	42 mm	SL173-14-3

SL103-20-C121

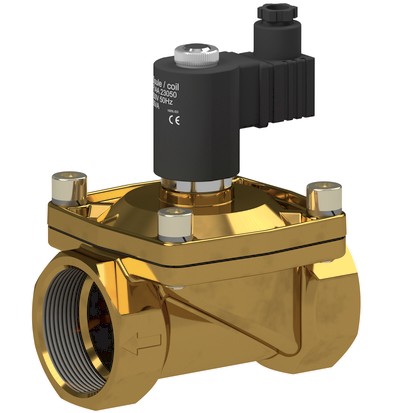

2/2-way solenoid valve series SL103; combined operated; NO; body brass; seal NBR; medium temperature -10...+80°C; G 2"; DN 50mm; pressure AC/DC 0...10bar; length 133,5mm; coil C0C1; voltage 230VAC

To Series: 2/2-way solenoid valve Series SL103
