Armatures

STASTO Allgemeine Preisliste (EUR)

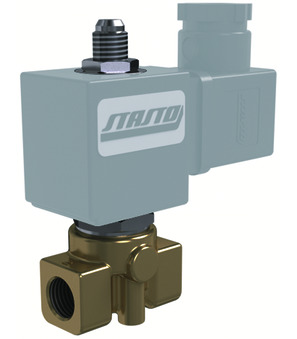

3/2-way solenoid valve Series 31A

3/2-way solenoid valve Series 31A

Directly operated; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Universal function (Any pressure connection possible); Standard coil BDA; Connector size 32mm

3/2-Wege-Magnetventil Serie 31A 3/2-Wege-Magnetventil Serie 31A
To Series: 3/2-way solenoid valve Series 31A
Varianten
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type Sequence
G 1/4" 2,5/2,5 mm 40 mm 0...4 bar FKM -10...+120 °C 220-230V/50-60Hz AC Standard CE 31A2AV25-U-BDA08223DS-C003-32-6 20200094
G 1/4" 2,5/2,5 mm 40 mm 0...4 bar FKM -10...+120 °C 220-230V/50-60Hz AC With moulded PVC-cable (2 m) CE 31A2AV25-U-BDA08223DS-C003-31-CV20-6 20200095
31A2AV15-BDA08223DS-C003-32-6
31A2AV15
3/2-way solenoid valve Series 31A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 1,5/2,5mm; Pressure AC/DC 0-15bar; Length 40mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 3/2-way solenoid valve Series 31A
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Cable length Approval Type
G 1/4" 1,5/2,5 mm 40 mm 0...15 bar FKM -10...+120 °C 220-230V/50-60Hz AC Standard - CE 31A2AV15-BDA08223DS-C003-32-6
31A2AV25-U-BDA08223DS-C003-32-LV-1
31A2AV25-U
3/2-way solenoid valve Series 31A; Directly operated; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Universal function (Any pressure connection possible); Standard coil BDA; Connector size 32mm; G 1/4"; DN 2,5/2,5mm; Pressure AC/DC 0-4bar; Length 40mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 3/2-way solenoid valve Series 31A
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/4" 2,5/2,5 mm 40 mm 0...4 bar FKM -10...+120 °C 220-230V/50-60Hz AC With integrated LED-yellow and VDR CE 31A2AV25-U-BDA08223DS-C003-32-LV-1
3/2-way solenoid valve Series 31A

3/2-way solenoid valve Series 31A

Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm

3/2-Wege-Magnetventil Serie 31A 3/2-Wege-Magnetventil Serie 31A
To Series: 3/2-way solenoid valve Series 31A
Grundversion
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Cable length Approval Type Sequence
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C - - - - - 31A2AV20 20200098
Varianten
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Cable length Approval Type Sequence
G 1/4" 1,5/2,5 mm 40 mm 0...15 bar FKM -10...+120 °C 220-230V/50-60Hz AC With moulded PVC-cable (2 m) - CE 31A2AV15-BDA08223DS-C003-31-CV20-6 20200096
G 1/4" 1,5/2,5 mm 40 mm 0...15 bar FKM -10...+120 °C 220-230V/50-60Hz AC With integrated LED-yellow and VDR - CE 31A2AV15-BDA08223DS-C003-32-LV-1 20200097
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 12VDC DC Standard - CE 31A2AV20-BDA08012CS-C003-32-6 20200099
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 12VDC DC With moulded PVC-cable (2 m) - CE 31A2AV20-BDA08012CS-C003-31-CV20-6 20200100
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 12VDC DC With integrated LED-yellow and VDR - CE 31A2AV20-BDA08012CS-C003-32-LV-2 20200101
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 24VDC DC Standard - CE 31A2AV20-BDA08024CS-C003-32-6 20200102
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 24VDC DC With moulded PVC-cable (2 m) - CE 31A2AV20-BDA08024CS-C003-31-CV20-6 20200103
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 24VDC DC With integrated LED-yellow and VDR - CE 31A2AV20-BDA08024CS-C003-32-LV-2 20200104
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 24VDC-ATEX-Ex - ATEX 3 m - 31A2AV20-Y224VDC 20200105
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 24V/50-60Hz AC Standard - CE 31A2AV20-BDA08024DS-C003-32-6 20200106
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 24V/50-60Hz AC With moulded PVC-cable (2 m) - CE 31A2AV20-BDA08024DS-C003-31-CV20-6 20200107
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 24V/50-60Hz AC With integrated LED-yellow and VDR - CE 31A2AV20-BDA08024DS-C003-32-LV-2 20200108
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 42V/50Hz AC Standard - CE 31A2AV20-BDA08042AS-C003-32-6 20200109
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 42V/50Hz AC With moulded PVC-cable (2 m) - CE 31A2AV20-BDA08042AS-C003-31-CV20-6 20200110
G 1/4" 2,0/2,5 mm 40 mm 0...10 bar FKM -10...+120 °C 48V/50Hz AC Standard - CE 31A2AV20-BDA08048AS-C003-32-6 20200111
