Armatures

STASTO Allgemeine Preisliste (EUR)
21IH8K1V400-GDV-GDH14012CS-C003-31-CV20-6
21IH8K1V400-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDH14012CS
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 12VDC; Approval CE
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21IH
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 12VDC - With moulded PVC-cable (2 m) CE 21IH8K1V400-GDV-GDH14012CS-C003-31-CV20-6
21HF8K0B400-GDV-GDV14230AY-C003-31-CV20-6
21HF8K0B400-GDV

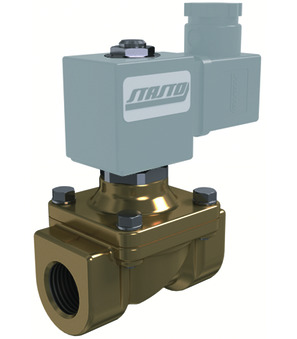

2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Pressure DC 0-6bar; Length 128mm; Standard coil GDV
GDV14230AY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz; Approval CSA/UL/VDE
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21H..K0Y
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type
G 1 1/2" 40 mm 128 mm 0...16 bar 0...6 bar NBR -10...+90 °C 230V/50Hz-240V/60Hz UL/CSA/VDE With moulded PVC-cable (2 m) - 21HF8K0B400-GDV-GDV14230AY-C003-31-CV20-6
21IH8K1V400-GDV-GDH14012CS-C003-32-LV-2
21IH8K1V400-GDV
2/2-way solenoid valve Series 21IH; Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-14bar; Pressure DC 0-2bar; Medium -10/+140°C; Length 128mm; Standard coil GDV
GDH14012CS
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 12VDC; Approval CE
C003-32-LV-2
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC
To Series: 2/2-way solenoid valve Series 21IH
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 12VDC - With integrated LED-yellow and VDR CE 21IH8K1V400-GDV-GDH14012CS-C003-32-LV-2
21HF8K0B400-GDV-GDV14230AY-C003-32-LV-1
21HF8K0B400-GDV
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Pressure DC 0-6bar; Length 128mm; Standard coil GDV
GDV14230AY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz; Approval CSA/UL/VDE
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21H..K0Y
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Approval Design Voltage type Type
G 1 1/2" 40 mm 128 mm 0...16 bar 0...6 bar NBR -10...+90 °C 230V/50Hz-240V/60Hz UL/CSA/VDE With integrated LED-yellow and VDR - 21HF8K0B400-GDV-GDV14230AY-C003-32-LV-1

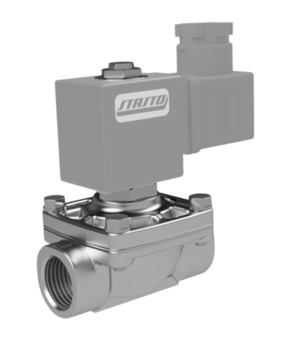

2/2-way solenoid valve Series 21IH

2/2-way solenoid valve Series 21IH

Combined operated; NC; Body Stainless steel 1.4401; Tube Stainless steel One-piece; Seal FKM; Connector size 32mm

2/2-Wege-Magnetventil Serie 21IH 2/2-Wege-Magnetventil Serie 21IH
To Series: 2/2-way solenoid valve Series 21IH
Varianten
Female thread DN Length Pressure AC Pressure DC Medium temperature Voltage Voltage type Design Approval Type Sequence
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 24VDC - Standard UL/CSA/VDE 21IH8K1V400-GDV-GDV14024CY-C003-32-6 20180231
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 24VDC - With moulded PVC-cable (2 m) UL/CSA/VDE 21IH8K1V400-GDV-GDV14024CY-C003-31-CV20-6 20180232
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 24VDC - With integrated LED-yellow and VDR UL/CSA/VDE 21IH8K1V400-GDV-GDV14024CY-C003-32-LV-2 20180233
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 24V/50-60Hz - Standard UL/CSA/VDE 21IH8K1V400-GDV-GDV14024DY-C003-32-6 20180234
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 24V/50-60Hz - With moulded PVC-cable (2 m) UL/CSA/VDE 21IH8K1V400-GDV-GDV14024DY-C003-31-CV20-6 20180235
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 24V/50-60Hz - With integrated LED-yellow and VDR UL/CSA/VDE 21IH8K1V400-GDV-GDV14024DY-C003-32-LV-2 20180236
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 220VDC - Standard CE 21IH8K1V400-GDV-GDV14220CS-C003-32-6 20180237
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 220VDC - With moulded PVC-cable (2 m) CE 21IH8K1V400-GDV-GDV14220CS-C003-31-CV20-6 20180238
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 220VDC - With integrated LED-yellow and VDR CE 21IH8K1V400-GDV-GDV14220CS-C003-32-LV-1 20180239
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 110V/50Hz, 120V/60Hz - Standard UL/CSA/VDE 21IH8K1V400-GDV-GDV14110AY-C003-32-6 20180240
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 110V/50Hz, 120V/60Hz - With moulded PVC-cable (2 m) UL/CSA/VDE 21IH8K1V400-GDV-GDV14110AY-C003-31-CV20-6 20180241
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 110V/50Hz, 120V/60Hz - With integrated LED-yellow and VDR UL/CSA/VDE 21IH8K1V400-GDV-GDV14110AY-C003-32-LV-1 20180242
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 230V/50Hz-240V/60Hz - - UL/CSA/VDE 21IH8K1V400-GDV-GDV14230AY 20180243
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 230V/50Hz-240V/60Hz - Standard UL/CSA/VDE 21IH8K1V400-GDV-GDV14230AY-C003-32-6 20180244
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 230V/50Hz-240V/60Hz - With moulded PVC-cable (2 m) UL/CSA/VDE 21IH8K1V400-GDV-GDV14230AY-C003-31-CV20-6 20180245
G 1 1/2" 40 mm 128 mm 0...14 bar 0...2 bar -10...+140 °C 230V/50Hz-240V/60Hz - With integrated LED-yellow and VDR UL/CSA/VDE 21IH8K1V400-GDV-GDV14230AY-C003-32-LV-1 20180246
