BUW9-150-SSRS-S42-AG

Name: BUW9-150-SSRS-S42-AG
Brand: STASTO
SKU: BUW9-150-SSRS-S42-AG
Price: 4639.8 EUR
Availability: InStock

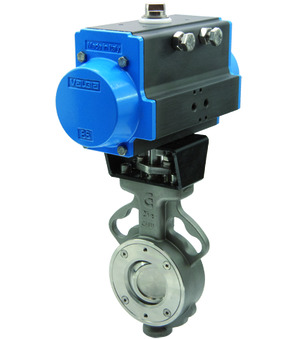

butterfly valve with pneumatic actuator; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1 R20; body and disc AISI 316, shaft AISI 630; seat RTFE; single acting actuator; ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -55...+230°C; DN 150mm; length 56mm; pressure range 0...25bar; nominal flange pressure PN10/16/25/ANSI150; actuator PAS2005; free of oil and grease for hydrogen

Intrastat No.: 84818085
Country of origin: Italy
Weight: 75.45 Kg
Short Itemnumber: BUW9150SSRSS42AG

4.639,80 € 4639.8 EUR 4.639,80 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

BUW9-150-SSRS-B-AG x 1.0

BUW9-150-SSRS-B-AG

butterfly valve with bare shaft; ATEX II 2 G/D Ex h X; wafer type; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -55...+230°C; pressure range 0...25bar; DN 150mm; length 56mm; nominal flange pressure PN10/16/25/ANSI150; free of oil and grease for hydrogen

Add to Cart

PAS2005 x 1.0

Pneumatic actuator PAS2005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm

Add to Cart

APKTGB0014 x 1.0
