BUW6-250-DSV-G-3C
BUW6-200-DSV-G-3C
BUW6-200-DSV-G-3C
1.134,00 €
1.134,00 €
C3J-BULG-150-DSV
C3J-BULG-150-DSV
21,90 €
21,90 €

BUW6-250-DSV-G-3C

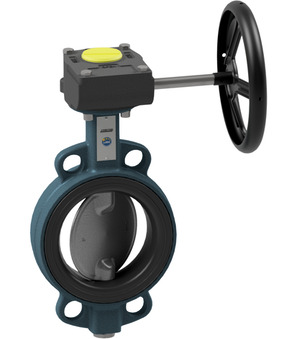

butterfly valve with manual gear box series BUW6-DSV-G-3C; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10…+200°C; pressure range 0...16bar; DN 250mm; length 68mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.628 Kg
Short Itemnumber:BUW6250DSVG3C
https://www.stasto.eu/web/image/product.template/236782/image_1920?unique=6c720ad

butterfly valve with manual gear box series BUW6-DSV-G-3C; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10…+200°C; pressure range 0...16bar; DN 250mm; length 68mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

1.661,00 € 1661.0 EUR 1.661,00 €

price on request

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BUW6-250-DSV-B-3C x 1.0
    butterfly valve with bare shaft BUW6-250-DSV-B-3C
    butterfly valve with bare shaft series BUW6-DSV-B-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 250mm; length 68mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
    Add to Cart
    GB02-10/22-02
    GB02-10/22-02 x 1.0
    GB02-10/22-02
    Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 1000Nm; Flange ISO5211 F10; Female square 22mm
    Add to Cart
