BUW6-100-DSE-0K2-01

BUW6-100-DSE-0K2-01

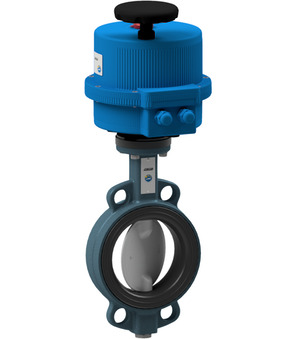

Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Operating time 27s; Voltage 24VAC/DC; Metal; VB110M-0E27-Q17

Intrastat No.: 84818085
Country of origin: Italy
Weight: 13.95 Kg
Short Itemnumber: BUW6100DSE0K201
https://www.stasto.eu/web/image/product.template/241704/image_1920?unique=77c101b

Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Operating time 27s; Voltage 24VAC/DC

1.392,50 € 1392.5 EUR 1.392,50 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-100-DSE-B x 1.0
    Butterfly valve with bare shaft BUW6-100-DSE-B
    Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
    Add to Cart
    VB110M-0E27-Q17 x 1.0
    VB110M-0E27-Q17
    Electrical actuator; Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-star 17mm; Voltage 24VAC/DC; Protection class IP68
