BUW6-080-DSE-0K2-02

BUW6-080-DSE-0K2-02

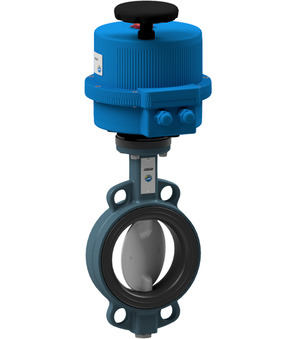

Butterfly valve with electrical actuator; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Operating time 9s; Voltage 24VAC/DC; Metal; VB060M-0E9-Q14

Intrastat No.: 84818085
Country of origin: Italy
Weight: 8.64 Kg
Short Itemnumber: BUW6080DSE0K202
https://www.stasto.eu/web/image/product.template/241701/image_1920?unique=77c101b

Butterfly valve with electrical actuator Series BUW6-DSE-02; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 80mm; Length 46mm; Operating time 9s; Voltage 100-240VAC

953,20 € 953.2 EUR 953,20 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW6-080-DSE-B x 1.0
    Butterfly valve with bare shaft BUW6-080-DSE-B
    Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
    Add to Cart
    VB060M-0E9-Q14 x 1.0
    VB060M-0E9-Q14
    Electrical actuator; Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-star 14mm; Voltage 24VAC/DC; Protection class IP68
    Add to Cart
