BUW4-100-DS1C-L

BUW4-100-DS1C-L

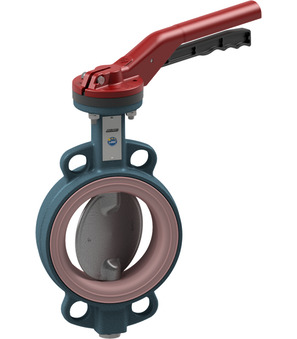

butterfly valve with hand lever series BUW4-DS1C-L; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 Chenisil coated; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...10bar; DN 100mm; length 52mm

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW4100DS1CL
https://www.stasto.eu/web/image/product.template/224486/image_1920?unique=64e8117

butterfly valve with hand lever series BUW4-DS1C-L; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 Chenisil coated; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...10bar; DN 100mm; length 52mm

377,30 € 377.3 EUR 377,30 €

price on request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 100 mm
Length 52 mm
pressure
Pressure range 0...6 bar
BUW4-100-DS1C-B x 1.0
Butterfly valve with bare shaft BUW4-100-DS1C-B
butterfly valve with bare shaft series BUW4-DS1C-B; wafer type; length according to EN558−1R20; for abrasive medias (e.g. sand, cement, etc.); body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 Chenisil coated; shaft AISI 430; liner carboxylated NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...10bar; DN 100mm; length 52mm
Add to Cart
HLBU-040100-A
HLBU-040100-A x 1.0
HLBU-040100-A
Hand lever; Material Aluminum; Suitable for Series BUW6, BUW2, BUW4, BULG And BULC; DN 40;50;65;80;100mm
