BUW2-250-DSV-D32-3C

BUW2-250-DSV-D32-3C

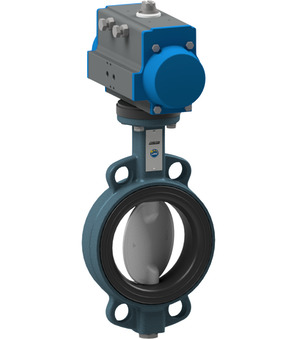

butterfly valve with pneumatic actuator series BUW2-DSV-D-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator PAD115; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BUW2250DSVD323C
https://www.stasto.eu/web/image/product.template/237894/image_1920?unique=75e5605

butterfly valve with pneumatic actuator series BUW2-DSV-D-3C; wafer type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm; actuator PAD115; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

2.028,50 € 2028.5 EUR 2.028,50 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    BUW2-250-DSV-B-3C x 1.0
    Butterfly valve with bare shaft BUW2-250-DSV-B-3C
    Butterfly valve with bare shaft Series BUW2-DSV-B-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...6bar; DN 250mm; Length 68mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
    Add to Cart
    Pneumatic actuator PAD115
    PAD115 x 1.0
    Pneumatic actuator PAD115
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm
