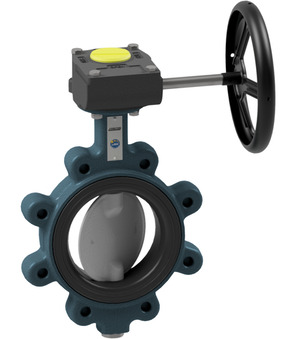

BULG-150-DSN-G-01

BULG-150-DSN-G
butterfly valve with manual gear box; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16; medium temperature -10...+130°C; pressure range 0...16bar; DN 150mm; length 56mm
MKS-AI020R2-001X
mounting bracket series MKS-AR; for limit switch box EB0X01/13/14; for gearbox series GB02; torque 150Nm
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic
